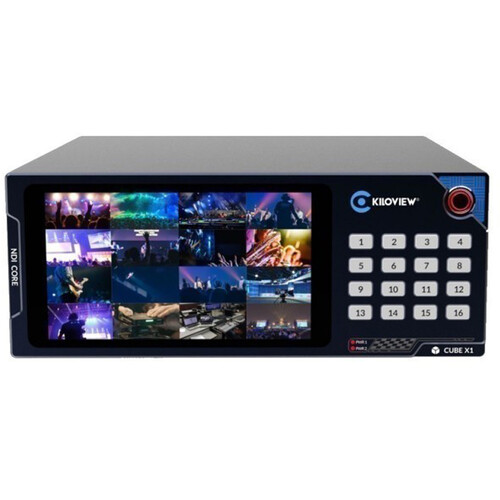

Kiloview CUBE X1 NDI CORE Switcher


  • NDI Multiplex Switcher, 5.5″ Touchscreen
  • Supports up to 16 NDI Inputs, 32 Outputs
  • NDI, NDI High Bandwidth & NDI|HX Support
  • Dual 10GB SFP+ Fiber, Gigabit Ethernet
  • Supports up to 1080p60 & UHD 4K60 Video
  • Wide NDI Format & Device Support
  • Crosspoint & I/O Panel Compatibility
  • 1 x HDMI Output, 2 x USB-A Ports
  • 3.5mm Audio In & Out, VU Meter
  • Cooling Fans, Redundant Power Supplies

AED14,999.00

Switch, distribute, and schedule up to 16 NDI inputs and 32 outputs using theĀ CUBE X1 NDI CORE SwitcherĀ fromĀ Kiloview. This lightweight version of the NDI CORE MAX supports up to UHD 4K60 video and offers seamless switching of all NDI sources without lagging or black screens.
Dual 10GbE Ports
  • Use the CUBE X1’s dual 10GbE SFP+ ports to support up to 16 NDI inputs and 32 NDI outputs.
  • Incorporates one 1GbE RJ45 Ethernet port.
NDI Compatibility
  • The CUBE X1 supports up to 1080p60 and UHD 4K60 video resolutions.
  • Compatible with NDI, NDI High Bandwidth, and NDI|HX2, the CUBE X1 will also offer future support for NDI|HX3.
  • Input up to 16 channels of any NDI version using less than 2.5 Gb/s.
  • Output up to 32 channels of any NDI version using less than 5 Gb/s.
Seamless Switching & Non-Multicast Distribution
  • The CUBE X1 supports access to all NDI sources, providing seamless switching and unlimited distribution.
  • It can also create multiple NDI outputs as needed for using the same NDI source with multiple targets.
  • The same output can simultaneously support multiple NDI sources.
5.5″ Touchscreen/16 Buttons
  • The 5.5″ touchscreen enables you to monitor your network status, storage space, and CPU usage in real time.
  • Easily select your inputs/outputs using one of the 16 buttons or the touchscreen display.
  • A VU meter enables you to monitor the audio status.
Applications
  • Use the CUBE X1 for studio, outside broadcasting, educational, and commercial IP video signal management.
  • Offers round-robin, looping, and sequential play options for conferencing and digital signage.
Web Management
  • The CUBE X1 provides a web-based, customizable control panel.
  • The I/O panel and the crosspoint panel provide two switching options.
  • Log and permission management options provide security across the whole switching process.
Network/Power Interfaces
  • This switcher features both Gigabit Ethernet and two 10GB SFP+ Ethernet ports for fast, reliable network connectivity.
  • It also features redundant power supplies and two cooling fans
SKU: CUBE X1 Category: Tag:
Processing
Switching Type
Pushbutton, Software, Touchscreen
Processing Resolution
UHD 4K at 60
Input
Input Video Format
Fiber / RJ45
UHD 4K up to 60 fps
1080p up to 60 fps
Audio Inputs
1x 1/8″ / 3.5 mm TRS
Embedded Audio Input
RJ45
Output
Video Outputs
1x HDMI
2x LC Fiber
Output Video Format
Fiber / HDMI
UHD 4K up to 60 fps
1080p up to 60 fps
Audio Outputs
1x 1/8″ / 3.5 mm TRS
Embedded Audio Output
RJ45
HDMI
Connectivity
Inputs/Outputs
2x RJ45 (NDI)
Other I/O
1x RJ45 LAN
2x USB-A 2.0 Input/Output
HDCP Support
Yes
HDR Support
Yes
Display
Display Size
5.5″
Screen Resolution
1920 x 1080
Hardware
OS Compatibility
Linux
Windows
Wi-Fi
No
Bluetooth
No
Power
Power I/O
2x IEC C14 Input
Power Consumption
Power Supply: 100 to 230 VAC
General
Rack Form Factor
2 RU
Dimensions
9.11 x 8.7 x 3.5″ / 231.45 x 220 x 88Ā mm
Packaging Info
Package Weight
6.475 lb
Box Dimensions (LxWxH)
15.8 x 10.7 x 5.1″
