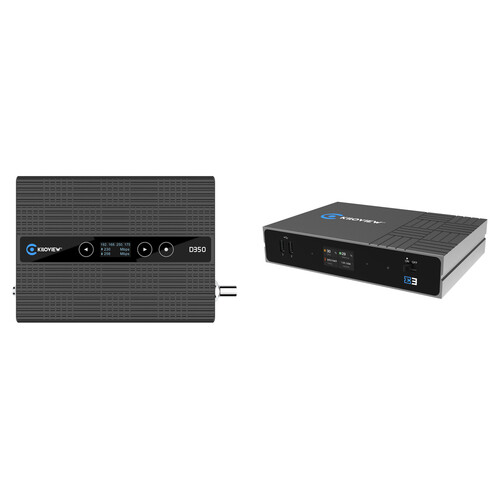

Kiloview E3 Dual-Channel Video Encoder & D350 4K H.265/H.264 IP Video Decoder Kit

Add to Wishlist
Key Features
  • 4K Video Encoder & Decoder Included
  • Up to UHD 4K30 via HDMI
  • Multiple Streaming Protocols Supported
  • Decode up to 4Kp60 H.264/H.265 IP Video
  • Built-In LCD Screen on Both Units
  • Low <100ms Latency Encoding
  • Support for NDI|HX2 & NDI|HX3

5,799.00 د.إ

Add to Wishlist
Kiloview D350 4K H.265/H.264 IP Video Decoder
Designed for professional video decoding, the Kiloview D350 4K H.265/H.264 IP Video Decoder supports up to UHD 4K60 video input and output and can simultaneously decode up to 9 channels of 1080p60 or 16 channels of 1080p30 IP video. It features one 3G-SDI and two HDMI outputs, supports multiple audio formats, and offers multiple display options. The D350 has an integrated display for real-time monitoring and it supports NDI|HX2, NDI|HX3 (beta), full NDI, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, and RTSP for decoding from any streaming source.

Simultaneously Decodes up to 16 Channels
  • The D350 decoder supports simultaneous decoding of up to 16 streams, depending on the resolution:
  • 4Kp60 NDI: 1 x channel
  • 4Kp30: 2 x channels
  • 1080p60: 9 x channels
  • 1080p30: 16 x channels
Output Options
Two HDMI 2.0 ports and one 3G-SDI port supports three output options:

  • Independent outputs
  • A combination of multichannel video output
  • Simultaneous, single-stream replication
User-Defined Display Layouts
  • Customized multi-output displays include grids and PiP, PbP, and PoP
  • Adjustable frame rates, output resolutions, and de-interlacing
  • View up to 9 output streams and up to 16 previews
Dual USB Interfaces
USB-A and USB-C ports offer PTZ camera control using a USB keyboard, connection to an SSD for local storage, and intercom use via a USB headset
RMTP Server Support
The D350 can simplify your workflow by directly accessing a video encoder and outputting video streams through RTMP without any relay platform
Audio Decoding Options
  • Supported audio formats include AAC, AAC MPEG-4, MPEG-2, G.711, Opus, and LPCM
  • Real-time audio mix and audio gain to output alternatively through its HDMI ports, SDI port, and 3.5mm line out port
  • Audio switching off/on
    Kiloview E3 HDMI & SDI Dual Channel Video Encoder

    Stream your program to up to 16 platforms simultaneously with the E3 HDMI & SDI Dual Channel Video Encoder from Kiloview. The new generation encoder features an HDMI input and loop output that can handle up to UHD 4K30 and a 3G-SDI input and loop output that supports up to 1080p60. Encoding of both inputs in H.264 and/or H.265 is possible at up to 1080p60 with multiple streaming protocols including NDI|HX2, NDI|HX3, SRT, RTMP, RTSP, UDP, and HLS.

    Boasting a low <100ms latency, the E3 is Ideal for a variety of live production applications including remote transmission and live streaming. It features an up-to-date chipset that provides simultaneous streaming to up to 16 different destinations with eight main stream 1080p signals and eight sub stream 720p signals. A 3.5mm line input can ingest analog audio while digital audio can be brought in embedded via HDMI and 3G-SDI and converted into multiple formats including AAC, MPEG-4, MPEG-3, MPEG-2, Opus, or G.711. A 1.14″ LCD screen allows you to monitor information regarding connectivity, IP address, CPU, memory, resolution, temperature, and tally status all in real time. A single Ethernet cable can provide PoE (Power over Ethernet) and reduce cable clutter around the unit.

    Please note: NTSC standard frame rates support is coming soon with a free future update

    Encodes Both Video Inputs of HDMI and 3G-SDI
    The E3 allows encoding video sources from either port of 3G-SDI or HDMI, mixing both video sources into one output in PIP or PBP mode, or even encoding video sources into up to 1080p60 from both ports of HDMI and 3G-SDI simultaneously for high-quality live streaming.
    Flexible Formats Selection
    For all IP-based video transmission processes, the E3 supports the high efficiency video codec HEVC as well as H.264. With support of HEVC, the E3 maintains video image quality with lower bitrates, saving more than 50% of your bandwidth.
    Wide Streaming Protocol Compatibility
    For broad applications, the E3 supports a complete range of streaming protocols including NDI|HX3, NDI|HX2, SRT, RTMP, RTMPS, HLS, and TS over UDP, RTP, RTSP, and ONVIF. It can be used for live production with NDI|HX, remote production with SRT, live streaming with RTMP or HLS, or any transmission with all different protocols.
    Powerful Multi-Channel Audio Encoding
    The E3 supports eight-channel embedded audio encoding of SDI inputs and four-channel embedded audio encoding of HDMI inputs, along with more functions including audio de-embedding, channel selection, alternate channel, and audio output mapping.
    Reliable Recording and Streaming
    All inputs of the E3 can be recorded in .MOV or.MP4 through the USB ports or NAS storage.
SKU: KIKVWD350EK (B&H Kit) Category: Tag:

Kiloview D350 4K H.265/H.264 IP Video Decoder Specs

Inputs / Outputs
Video Inputs
2x RJ45
Audio Inputs
No
Video Outputs
1x BNC (3G-SDI)
2x HDMI (2.0)
Audio Outputs
1x 1/8″ / 3.5 mm TRS Stereo Analog
Other I/O
1x USB-A
1x USB-C
Expansion Slots
No
Latency
to 200 ms
Format Support
Input Video Format
RJ45
UHD 4K at 30 fps
1080p at 30/50/60 fps
1080i at 50/60 fps
720p
Output Video Format
SDI
1080p at 24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 60 fps
HDMI
UHD 4K at 25/30/50/60 fps
1080p at 24/25/30/50/60 fps
1080i at 50/60 fps
720p at 50/60 fps
Output Audio Format
Analog
Embedded Audio
HDMI/SDI
Standards
HDR Support
Not Specified by Manufacturer
IP Streaming
Video IP Decoding
H.264, H.265, HLS, NDI, RTMP, RTP, RTSP, TS, UDP: 3840 x 2160
Audio IP Decoding
AAC
Hardware
Display Size
.9″
Tally Light
Yes
Wireless
No
Power
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
12 VDC at 1 A (6 W)
Environmental
Operating Temperature
-4 to 140°F / -20 to 60°C
General
Dimensions
5.5 x 4.1 x 1.1″ / 140 x 105 x 28 mm
Weight
13.4 oz / 380 g
Packaging Info
Package Weight
1.495 lb
Box Dimensions (LxWxH)
7.8 x 6.7 x 3.3″

Kiloview E3 HDMI & SDI Dual Channel Video Encoder Specs

Inputs / Outputs
Video Inputs
1x BNC (3G-SDI)
1x HDMI (1.4b) Female
Audio Inputs
1x 1/8″ / 3.5 mm TRS Female
Video Outputs
1x BNC (3G-SDI) (Loop Output)
1x HDMI (1.4b) Female (Loop Output)
Audio Outputs
No
Other I/O
2x USB-C 2.0
1x USB-A 2.0
1x RJ45 LAN, PoE
Expansion Slots
No
Latency
< 100 ms
Format Support
Input Video Format
HDMI
UHD 4K at 30 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 29.97/30/50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
SDI
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 25/29.97/30/50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
Embedded Audio
SDI Input: 8-Channel
HDMI Input: 4-Channel
Standards
Video Standard Compliance
SMPTE 259M/292M/424M
HDR Support
No
IP Streaming
Video IP Encoding
H.264, H.265, HLS, NDI|HX2, NDI|HX3, RTMP, RTMPS, RTP, RTSP, SRT, TS, UDP
Audio IP Encoding
AAC, G.711, MPEG-2, MPEG-4, Opus
Hardware
Display Size
1.14″
Tally Light
Yes
Power
Power I/O
1x Barrel Input
PoE Support
PoE 802.3af
Power Consumption
Power Supply: 12 to 18 VDC at 1 A (5 W)
Environmental
Operating Temperature
12 to 77°F / -20 to 45°C
Storage Temperature
-40 to 122°F / -40 to 50°C
General
Dimensions
5.5 x 3.9 x 1.1″ / 140 x 100 x 28 mm
Packaging Info
Package Weight
1.7 lb
Box Dimensions (LxWxH)
7.4 x 6.1 x 3.8″
