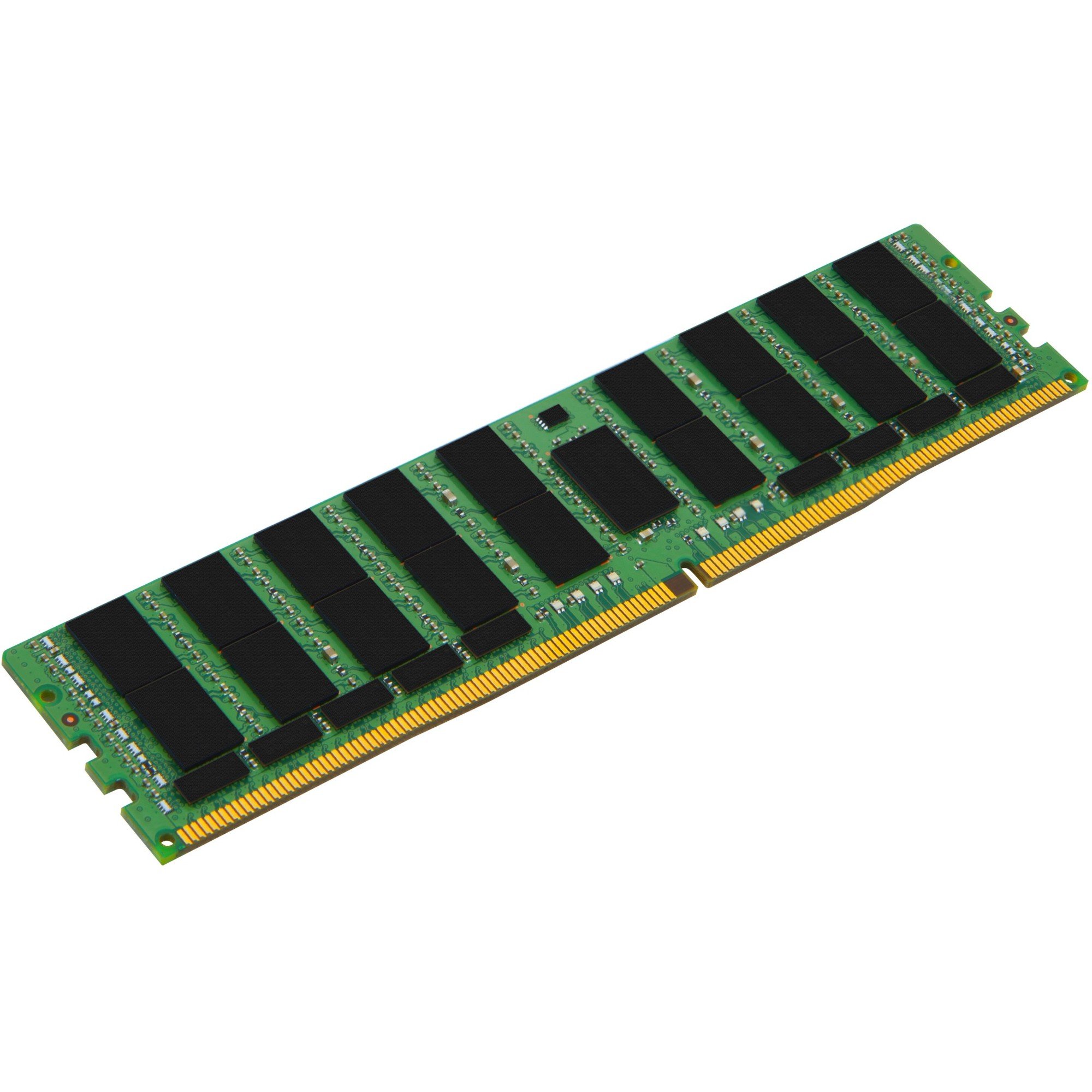

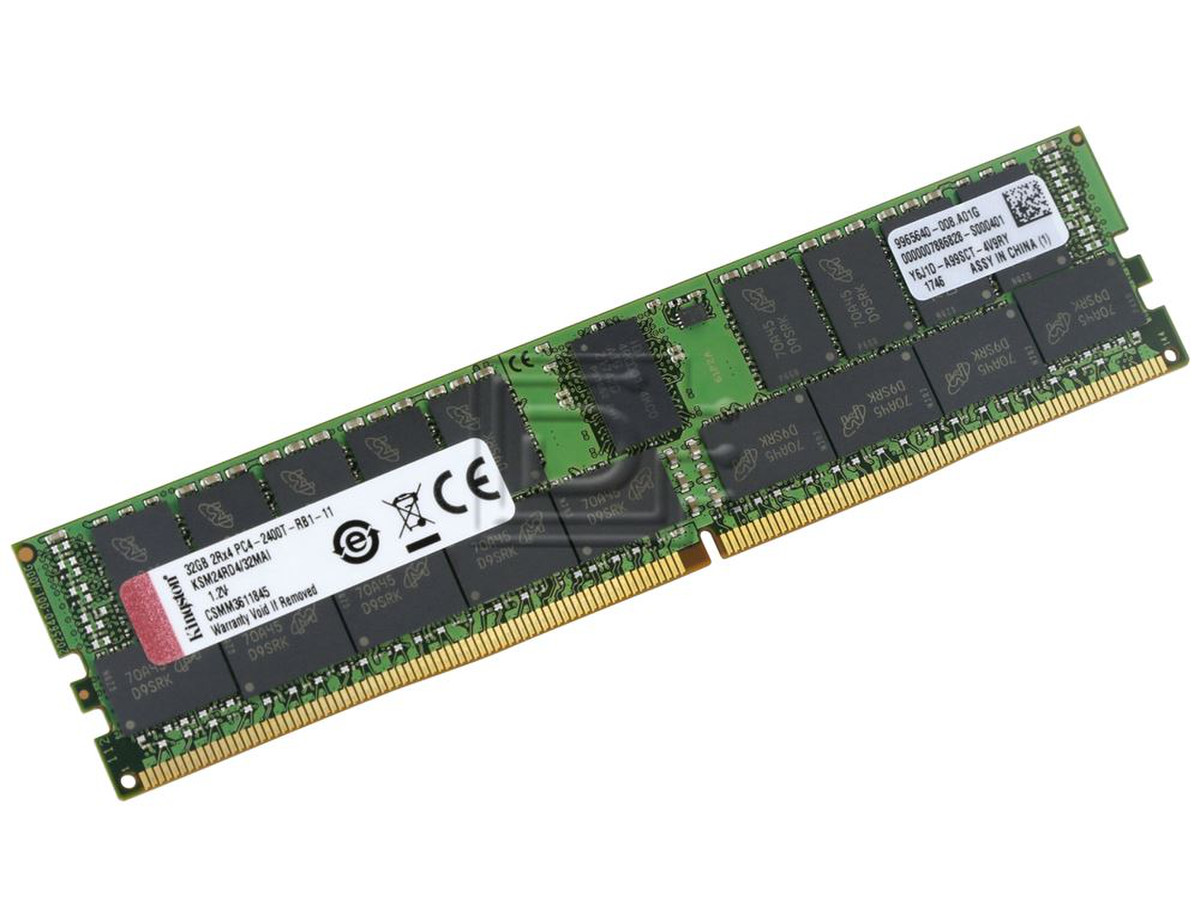

Kingston KSM24RD4/32MAI 32GB DDR4 PC4-2400 2400MHz RDIMM

Kingston KSM24RD4/32MAI 32GB 2Rx4 4G x 72-Bit DDR4 PC4-2400 2400MHz CL17 ECC Registered w/Parity 288-Pin DIMM – Brand New

Kingston KSM24RD4/32MAI 32GB 2Rx4 4G x 72-Bit DDR4 PC4-2400 2400MHz CL17 ECC Registered w/Parity 288-Pin DIMM

Kingston’s KSM24RD4/32MAI is a 4G x 72-bit (32GB) DDR4-2400 2400MHz CL17 SDRAM (Synchronous DRAM) registered w/parity, 2Rx4, ECC, memory module, based on thirty-six 2G x4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

• Power Supply: VDD=1.2V • VDDQ = 1.2V

• VPP – 2.5V • VDDSPD=2.25V to 2.75V

• Functionality and operations comply with the DDR4 SDRAM datasheet

• 16 internal banks • Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available

• Data transfer rates: PC4-2400, PC4-2133, PC4-1866, PC4-1600

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Supports ECC error correction and detection

• On-Die Termination (ODT)

• Temperature sensor with integrated SPD

• This product is in compliance with the RoHS directive.

• Per DRAM Addressability is supported

• Internal Vref DQ level generation is available

• Write CRC is supported at all speed grades

• CA parity (Command/Address Parity) mode is supported

ALT: KSM24RD4-32MAI
