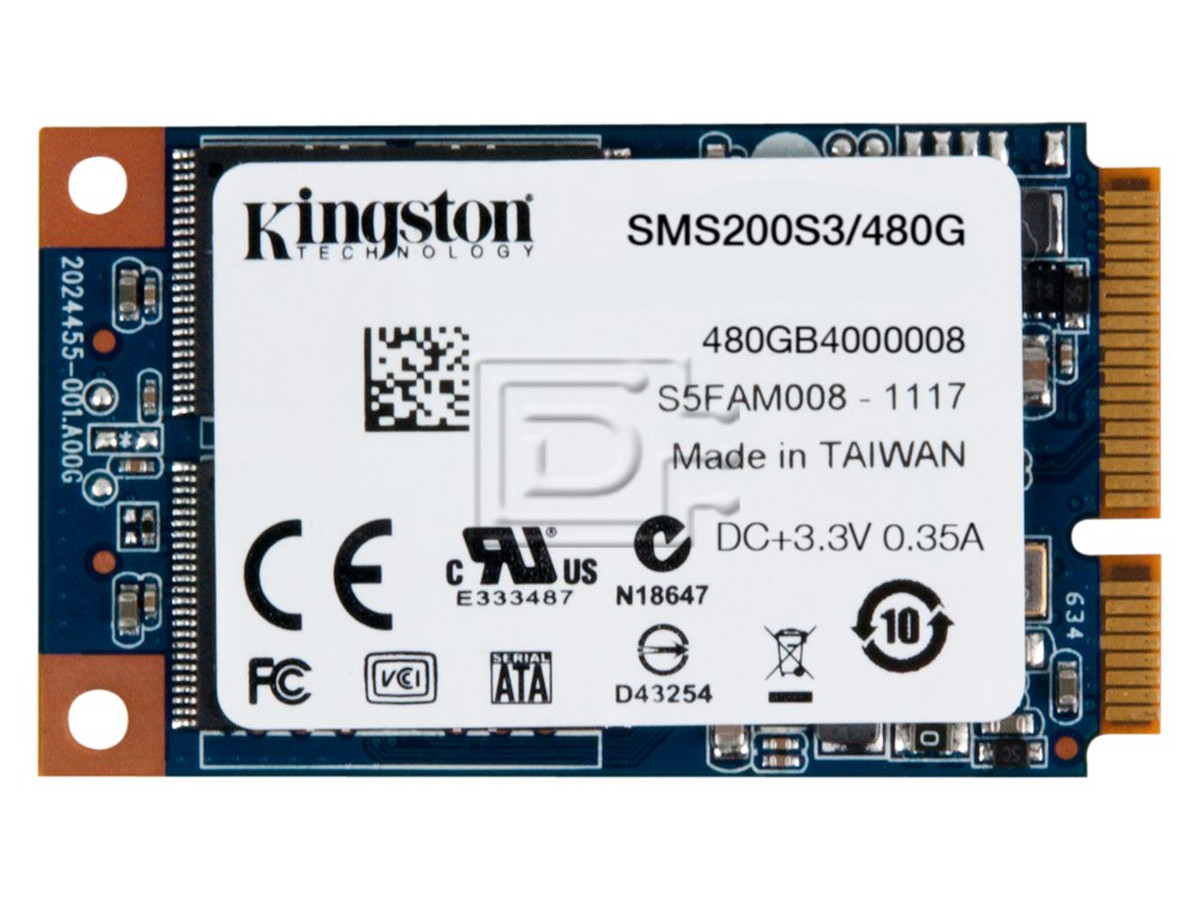

Kingston SMS200S3/480G 480GB MSATA SSD

Add to Wishlist

Capacity: 480GB

Speed: Solid State Memory

Interface Types: SATA 1.8in Mini-SATA / MSATA

Form Factor: 1.8inx3.5mm Ultrathin Caseless

Sector Size: 512 / 512e

Sustained Throughput: 530

Electrical Interface: SATA 600 – 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

AED2,399.00

Add to Wishlist

Kingston SMS200S3/480G 480GB 1.8in 6Gbps mS200 SED mSATA SSD – Brand New

Kingston SMS200S3/480G 480GB 1.8″ 6.0 Gbps mS200 Self-Encrypting, Mini SATA Solid State Disk Drive – Brand New

Save space, time and money.

Kingston’s SSDNow mS200 mSATA solid-state drive offers a cost-effective performance boost with a dual-drive option that allows room for adding high-capacity storage. Ideal for system builders, OEMs and enthusiasts, mS200’s ruggedly cool, minuscule form factor is eight times smaller than a traditional 2.5-inch hard drive, making it perfect for notebooks, tablets and Ultrabooks. SSDNow ms200 has a caseless, PCB-only design with no moving parts and is backed by legendary Kingston® reliability

Features

  • mSata interface – Fully compliant with industry standard, easy to fit, guaranteed to work
  • NAND Flash memory based – Shock resistant with lower power consumption
  • Supports Intel’s SRT – Combines capacity advantage of HDD with performance improvements of SSD in dual-storage configuration
  • Supports S.M.A.R.T. – Monitors the status of your drive
  • Supports TRIM – Maintains maximum performance of compatible operating systems
  • Encryption – AES 128bit

Compatibility:

This drive is compatible with any server that accepts 1.8″x3.5mm (Thin / Caseless) SATA drives.

Drive Model SMS200S3/480G
Capacity 480GB
Interface SATA Rev. 3.0 (6Gb/s), SATA Rev. 2.0 (3Gb/s), SATA Rev. 1.0 (1.5Gb/s)
Form Factor mSATA
Encryption AES 128bit
Maximum 4K Read/Write Up to 72,000/Up to 18,000 IOPS
Random 4k Read/Write Up to 21,000/Up to 13,000 IOPS
Sequential Read/Write 530MB/s / 340MB/s
PCMARK® Vantage HDD Suite Score 60,000
Idle Power Consumption 0.4 W
Read Power Consumption (TYP) 1.2 W
Write Power Consumption (TYP) 1.8 W
Total Bytes Written (TBW) 1562TB, 3 DWPD
Operating Temperature 0°C ~ 70°C
Storage Temperature -40°C ~ 85°C
Vibration Operating 2.17G peak (7-800Hz)
Vibration Non-Operating 20G peak (10-2000Hz)
Life expectancy (MTBF) 1,000,000 Hrs
Dimensions (mm) 50.88 x 30
Dimentions (in) 2.000 x 1.181
Weight (g/lb) 6.86/0.015

CLICK HERE TO VIEW THE MANUFACTURER’S ITEM DESCRIPTION/BROCHURE

ROHS Compliant

Alternate MPNs: SMS200S3/480G

Weight: 0.5 lb

SKU: SMS200S3-480G Category:
Drive Model SMS200S3/480G
Capacity 480GB
Interface SATA Rev. 3.0 (6Gb/s), SATA Rev. 2.0 (3Gb/s), SATA Rev. 1.0 (1.5Gb/s)
Form Factor mSATA
Encryption AES 128bit
Maximum 4K Read/Write Up to 72,000/Up to 18,000 IOPS
Random 4k Read/Write Up to 21,000/Up to 13,000 IOPS
Sequential Read/Write 530MB/s / 340MB/s
PCMARK® Vantage HDD Suite Score 60,000
Idle Power Consumption 0.4 W
Read Power Consumption (TYP) 1.2 W
Write Power Consumption (TYP) 1.8 W
Total Bytes Written (TBW) 1562TB, 3 DWPD
Operating Temperature 0°C ~ 70°C
Storage Temperature -40°C ~ 85°C
Vibration Operating 2.17G peak (7-800Hz)
Vibration Non-Operating 20G peak (10-2000Hz)
Life expectancy (MTBF) 1,000,000 Hrs
Dimensions (mm) 50.88 x 30
Dimentions (in) 2.000 x 1.181
Weight (g/lb) 6.86/0.015



ROHS Compliant

Alternate MPNs: SMS200S3/480G

Weight: 0.5 lb
