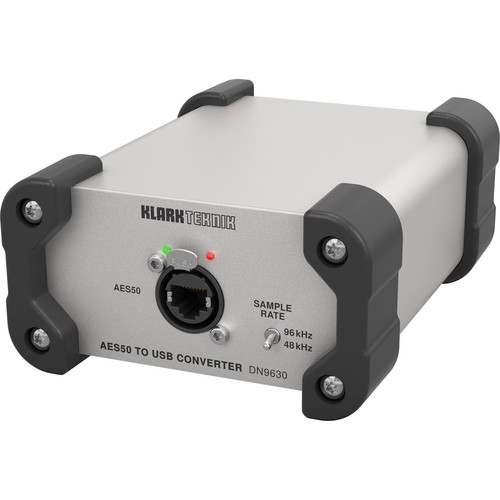

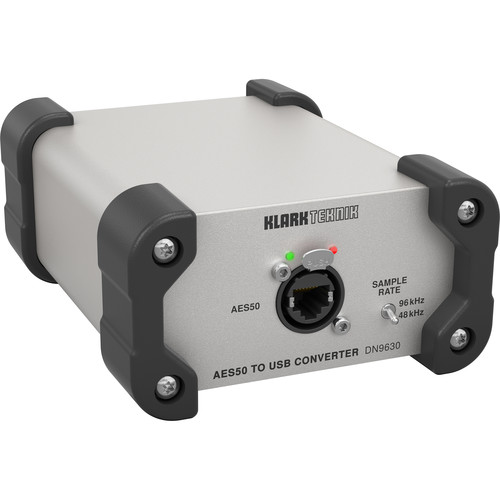

Klark Teknik DN9630 AES50 to USB 2.0 Converter

Add to Wishlist
Key Features
  • Up to 48 Bidirectional Channels
  • Simultaneous Recording and Playback
  • Works with Mac and Windows
  • 48/96 kHz: 48/24 Channels
  • Powered by USB 2.0 Interface
  • Native Core Audio Drivers
  • Windows PC Drivers Available
  • LED Indicators for Activity and Speed
  • Includes USB Cable

AED2,699.00

Add to Wishlist

Klark Teknik DN9630 Overview

The Klark Teknik DN9630 is an AES50 to USB converter, which provides simultaneous multi-channel computer audio recording and playback, making it ideal for use with MIDAS digital consoles and other AES50 equipped products. The DN9630 features a single AES50 connector, while the single USB 2.0 port connects directly to a Windows/Mac computer, offering up to 48 bidirectional channels at 48 kHz and 24 bidirectional channels at 96 kHz sample rates. Able to withstand the rigors of on-the-road wear and tear, the compact and rugged enclosure is machined from durable aluminum and features silicone rubber coroner bumpers. The Klark Teknik DN9630 is powered via USB and includes a standard USB 2.0 cable.

  • AES50 to USB 2.0 converter for simultaneous computer audio recording and playback
  • Up to 48 bidirectional channels @ 48 kHz and 24 bidirectional channels @ 96 kHz
  • Switchable 48 kHz and 96 kHz sample rate operation
  • Operates from incoming AES50 clock
  • Powered via USB 2.0 interface
  • Native Core Audio driver support in Mac OS X, software drivers available for Windows PC
  • LED indicators monitor network activity and speed
  • Compact and rugged design with durable aluminum extrusion casing
  • Designed and engineered in the U.K.
SKU: DN9630 Category: Tag:
Mac System Requirements
Minimum Hardware:
CPU: 1.5 GHz
Ethernet port
RAM: 512 MB
Recommended OS: 10.8 Mountain Lion
Windows System Requirements
Minimum Hardware:
CPU: Core 2 Duo, 2 GHz
Ethernet port
RAM: 1 GB
Recommended OS: Windows 7 (32-/64-bit), Windows 8 (32-/64-bit)

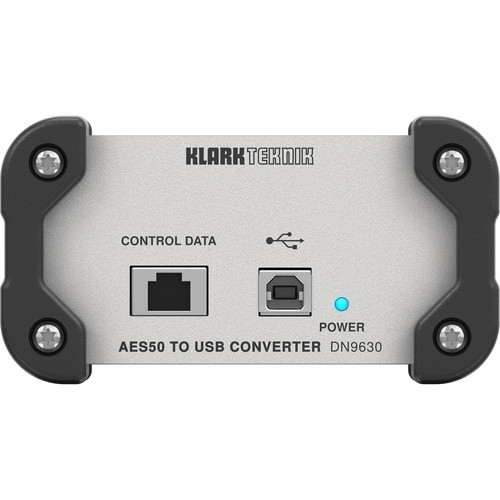

Connectors
AES50: 1 x etherCON
USB: 1 x USB 2.0
Control Data: 1 x RJ45
Input / Output
Channels of Input/Output at 48 kHz: 48 bidirectional
Channels of Input/Output at 96 kHz: 24 bidirectional
Sample Rates: 48 kHz / 96 kHz, selectable
Sample Word Length: 24-bit
Clock Synchronization: External

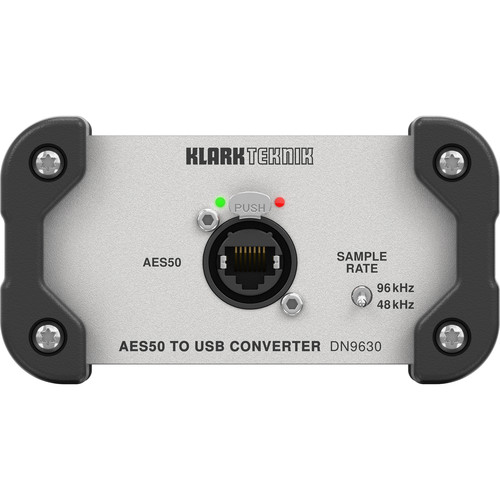

Controls and Indicators
Green AES50 Status LED: Indicates AES50 synchronization
Red AES50 Status LED: Indicates an error with the port connection when lit
Sample Rate Switch: Selects between 96 kHz and 48 kHz sample rates
Power LED: Indicate the unit is powered on
Power
Connection: Remotely powered via USB 2.0
Consumption: <2.5 W
Dimensions
2.5 x 4.6 x 6.0″ / 64.0 x 118.0 x 152.0 mm
Weight
1.1 lb / 500 g
Packaging Info
Package Weight
1.365 lb
Box Dimensions (LxWxH)
7.55 x 6.35 x 4.1″
