1×2 HDMI Plus Bidirectional RS-232, Ethernet & IR over HDBaseT Twisted Pair Receiver

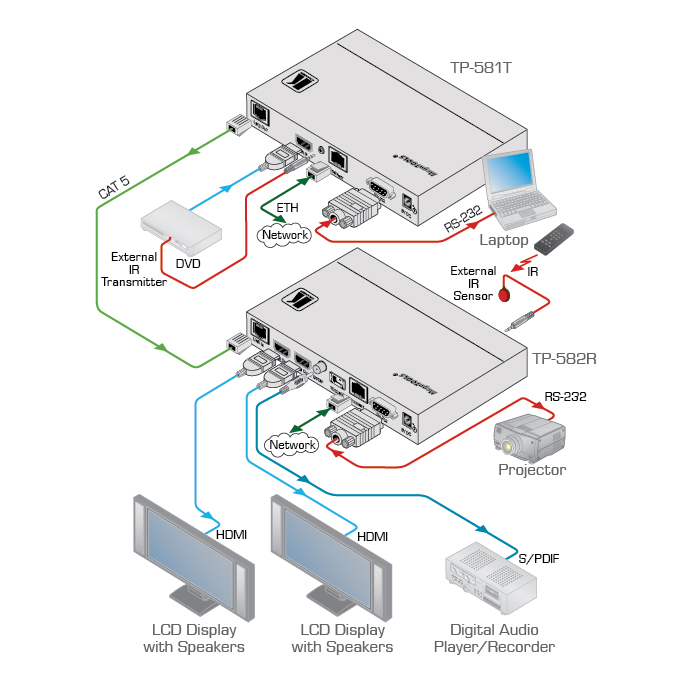

The TP-582R is a high-quality twisted pair receiver for HDMI, Ethernet 100BaseT, bidirectional RS-232 and IR signals. TheĀ TP-582TĀ selects one of two HDMI inputs, and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to an HDBaseT twisted pair signal. The TP-582R converts the HDBaseT twisted pair signal back to Ethernet 100BaseT, RS-232, IR and two HDMI outputs, and de-embeds the audio to S/PDIF and TOSLINK audio outputs.
Product Features and Benefits
- Max. Data Rate – 6.75Gbps (2.25Gbps per graphic channel).
- HDBaseT Technology.
- HDTV Compatible.
- HDCP Compliance.
- HDMI Support – Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
- 3D Pass-Through.
- EDID PassThru – Passes EDID signals between the source and display.
- Bidirectional RS-232 Interface – Commands and data can flow in both directions via the RS-232 interface, allowing status requests and control of the destination unit.
- Ethernet Interface – Passes 100BaseT.
- System Range – Signals of up to 6.75Gbps (up to 1080p@60Hz 36-bit) over a range of up to 130m (430ft) when using BC-HDKat6a cables.
- Control – Front panel.
- Indicators – Status LEDs for input selection, output, link and power.
- Compact MegaTOOLS – 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter.
Mechanical | Ā |
Width | 7.38 in (18.75 cm) |
Height | 1 in. (2.54 cm) |
Depth | 4.53 in. (11.50 cm) |
Weight | 0.6 lbs (0.27 kg) |
Video | Ā |
Inputs | 1 HDBaseT RJ-45 connector. |
Outputs | 2 HDMI connectors 1 IR on a 3.5mm mini jack 1 Ethernet 100BaseT on an RJ-45 connector 1 RS-232 on a 9-pin D-sub connector 1 TOSLINK optical audio 1 S/PDIF in an RCA connector. |
Bandwidth | 6.75Gbps (2.25Gbps per graphic channel). |
RS-232 Baud Rate | 115200 |
Compliance | Supports HDMI and HDCP |
Power | Ā |
Consumption | 5V DC, 1550mA. |
Power Supply | Included |
Environmental | Ā |
Operating Temperature | 32 – 104°F (0 – 40°C) |
Storage Temperature | -40 – 158°F (-40 – 70°C) |
Humidity | 10% to 90%, RHL non-condensing |
