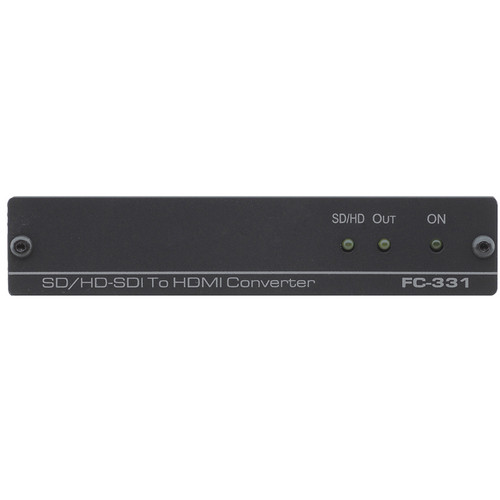

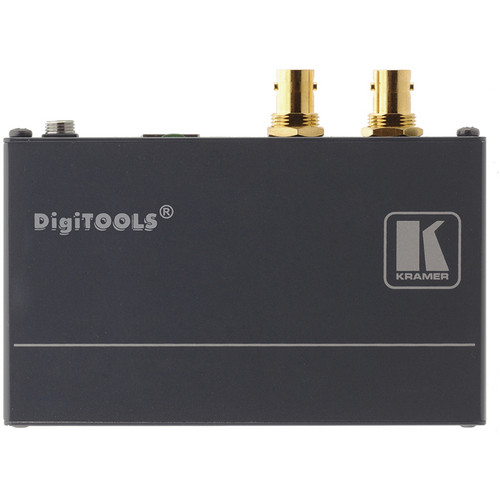

Kramer 3G HD-SDI to HDMI Format Converter

Add to Wishlist
Key Features
  • Converts HDTV Signals to HDMI Signals
  • Compatible with up to 3G HD-SDI
  • Maximum Data Rate – 3Gbps
  • Looping Input & Reclocking Feature
  • Audio Group De-embedded Selection
  • Active Input & Output LED Indicators
  • Compact (4.7 x 2.8 x 1.0″ )

AED3,799.00

Add to Wishlist

The Kramer 3G HD-SDI to HDMI Format Converter, at a maximum data rate of 3Gbps, converts HDTV signals up to 3G HD-SDI to HDMI output signals. Featuring looping input with reclocking, the converter offers error-free conversion of signals. It is compatible with HDTV signals up to 3G HD-SDI. In addition to Audio Group De-embedded Selection feature, the converter has active input & output LED indicators.

The 3G HD-SDI to HDMI Format Converter can work in different standard modes of operation such as SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M). Being compact (4.7 x 2.8 x 1.0″ / 12 x 7.2 x 2.4 cm), 3 units of the converter can be rack-mounted side by side in a 1U rack space with the optional RK-3T rack adaptor.

Converts HDTV signals up to 3G HD-SDI to HDMI output signals
Maximum data rate of 3Gbps
Looping input with reclocking – offers error-free conversion of signals
Compatible with HDTV signals up to 3G HD-SDI
Audio Group De-embedded Selection feature
Active input & output LED indicators
Works in different standard modes of operation such as SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
Compact (4.7 x 2.8 x 1.0″ / 12 x 7.2 x 2.4 cm)
3 units can be rack-mounted side by side in a 1U rack space with the optional RK-3T rack adaptor
SKU: FC-331 Category: Tag:

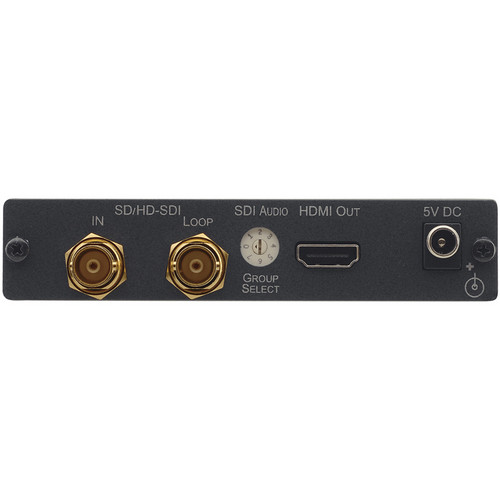

Input
1 SDI, HD-SDI, 3G HD-SDI on a BNC connector
Outputs
1 SDI, HD-SDI, 3G HD-SDI loop on a BNC connector, 1 HDMI connector.
Data Rate
Up to 3Gbps
Standard Compliance
HDMI
LEDs
SD/HD, OUT, ON.
Power Source
5V DC, 400mA
Dimensions
4.7″ x 2.8″ x 1.0″ / 12 x 7.2 x 2.4cm
Weight
0.3kg (0.7lbs)
Accessories
Power supply
Options
RK-3T 19″ rack adaptor
Packaging Info
Package Weight
1.2 lb
Box Dimensions (LxWxH)
9.2 x 4.8 x 3.5″
