Kramer 482XL Balanced/Unbalanced Stereo Audio Transcoder

Add to Wishlist
Key Features
  • Transcode Balanced & Unbalanced Stereo
  • Terminal Block Connectors
  • Gain Control
  • Standalone or Rackmount Placement

AED1,199.00

Add to Wishlist

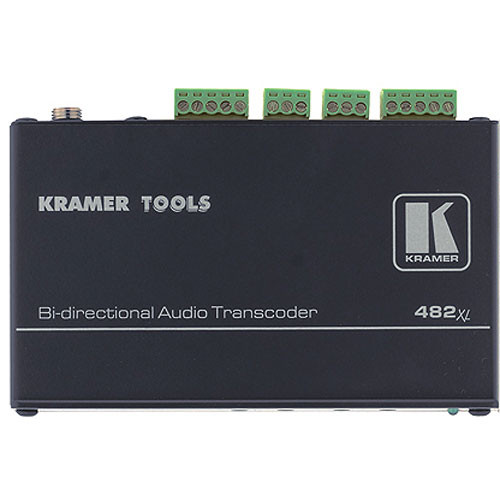

The 482XL Balanced/Unbalanced Stereo Audio Transcoder from Comprehensive/Kramer is an audio transcoder designed for use with balanced and unbalanced stereo audio signals. It will simultaneously convert balanced signals to unbalanced and vice versa. The unit features terminal block connectors and level (gain) control with independent left and right control. Moreover, it belongs to the Kramer TOOLS family of products and up to (3) of these units can be mounted side by side in 1U of a standard equipment rack when used in conjunction with the separately available RK-3T rack kit.

Balanced & Unbalanced Transcoding
Use this unit to simultaneously convert balanced stereo audio to unbalanced stereo audio or vice versa.
Gain
It offers level (gain) control with independent left and right control.
Kramer TOOLS
This amplifier belongs to the Kramer TOOLS family of products and up to (3) of these units can be mounted in 1U of rack space using an optional rack kit.
SKU: 482XL Category: Tag:
Construction
Metal
Finish
Black

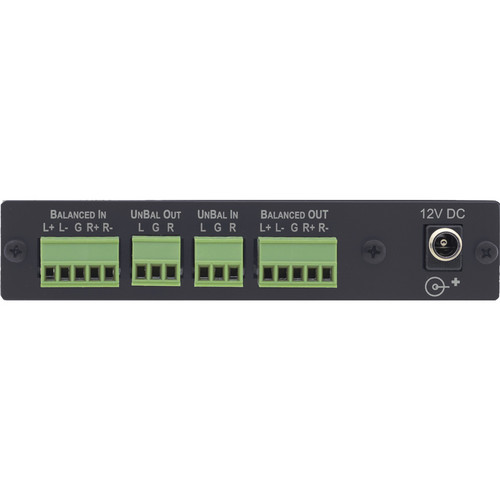

Input
(1) unbalanced stereo audio on 3-pin terminal block connector
(1) balanced stereo audio on a 5-pin terminal block connector
Output
(1) unbalanced stereo audio on 3-pin terminal block connector
(1) balanced stereo audio on a 5-pin terminal block connector
Output Level
Balanced: 21dBm (maximum)
Unbalanced: 21dBm@max gain (maximum)
Bandwidth
>100kHz
Controls
-57dB to + 6dB (balanced to unbalanced level)
-16dB to + 19dB (unbalanced to balanced level)
Coupling
Balanced to unbalanced: in=AC, out=DC
Unbalanced to balanced: in=AC, out=DC
THD & Noise
0.049%
2nd Harmonic
0.005%
Signal-to-Noise Ratio
95dB/87dB @ balanced to unbalanced/unbalanced to balanced, unweighted
Power
12VDC, 190mA (fully loaded)
Dimensions
0.98 x 4.7 x 2.95″ (2.5 x 12 x 7.5cm)
Weight
0.66 lbs (0.3kg)
Packaging Info
Package Weight
1 lb
Box Dimensions (LxWxH)
9.1 x 4.9 x 3.4″
