Kramer 4×4 4K60 4:2:0 HDMI/HDBaseT Extender with PoE Matrix Switcher


  • Max Data Rate of 10.2 Gb/s
  • Supports up to 4K60 Hz (4:2:0) & WUXGA
  • 4 HDBaseT Outputs with PoE Support
  • HDCP Compliant, EDID Capture

AED18,299.00

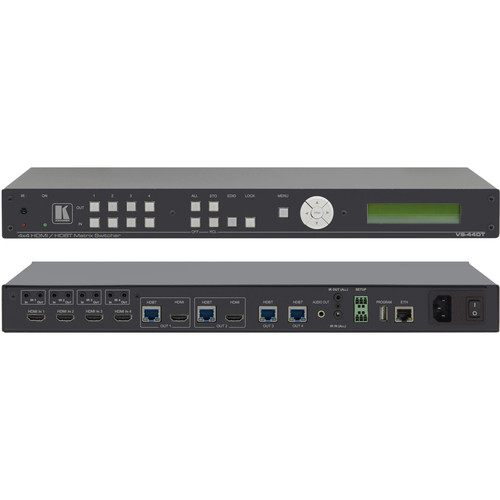

TheĀ Kramer VS-44DT 4×4 4K60 4:2:0 HDMI/HDBaseT Extender Matrix SwitcherĀ transmits video, audio, Ethernet, RS-232, and IR signals over extended distances. The unit accepts up to four HDMI and four IR inputs as well as Ethernet and RS-232 network and control. The inputs can be routed to any or all of the four HDBaseT outputs—the first two of which also have simultaneous HDMI outputs. VS-44DT connects to compatible HDBaseT receivers, such as TP-780RXR, TP-580RXR and TP-588D. It supports resolutions of up to 4K60 Hz (4:2:0) and WUXGA. The matrix provides PoE (Power over Ethernet) to compatible receivers.

SKU: VS-44DT Category: Tag:
Input
Video Inputs
4x HDMI
Output
Video Outputs
2x HDMI
4x RJ45
Audio Outputs
1x 1/8″ / 3.5 mm TRS
Connectivity
Other I/O
1x RJ45 LAN
5x 1/8″ / 3.5 mm IR Input
5x 1/8″ / 3.5 mm IR Output
1x Block 3-Pin Control
1x Block 3-Pin RS-232
HDCP Support
Yes
Hardware
Wi-Fi
Yes
Power
Power Consumption
Device: 100 to 240 VAC
General
Certifications
CE
Rack Form Factor
1 RU
Dimensions
17.2 x 13.9 x 1.72″ / 43.6 x 35.3 x 4.36Ā cm
Weight
7.3Ā lb / 3.3Ā kg
