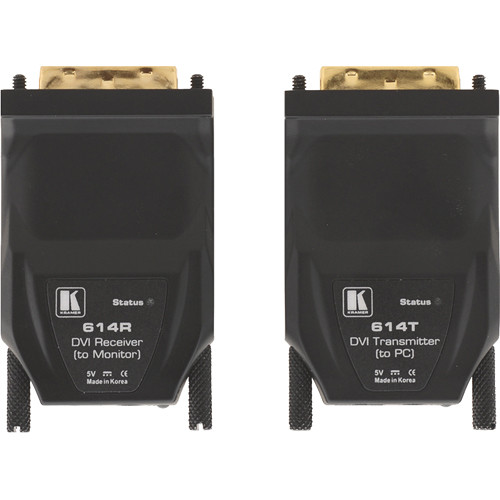

Kramer 614R/T 1-Fiber Detachable DVI Optical Transmitter & Receiver

Add to Wishlist
Key Features
  • EDID Capture
  • 1640′ (500m) Range
TheĀ Kramer 614R/T 1-Fiber Detachable DVI Optical Transmitter & ReceiverĀ are a small and lightweight, detachable optical transmitter and receiver pair. They transmit uncompressed DVI resolutions of up to 1920 x 1200 at 60 Hz using a multimode fiber optic cable with SC connectors.

AED5,399.00

Add to Wishlist

Kramer 614R/TĀ Overview

TheĀ Kramer 614R/T 1-Fiber Detachable DVI Optical Transmitter & ReceiverĀ are a small and lightweight, detachable optical transmitter and receiver pair. They transmit uncompressed DVI resolutions of up to 1920 x 1200 at 60 Hz using a multimode fiber optic cable with SC connectors. The 614T converts a DVI signal to an optical signal and transmits it to the 614R. The 614R decodes the optical signals back to a DVI signal.

This transmitter & receiver pair is found in digital flat panel and plasma displays that are used in medical, commercial, and travel applications, conference rooms and auditoriums, kiosks with digital flat panel displays for presenting information, and LED signboards in streets and stadiums.

6.75 Gb/s (2.25 Gb/s per graphic channel) maximum data rate
Maximum resolution up to WUXGA, 2K, or 1080p (XGA not supported)
HDTV compatible, non-HDCP compliant
Up to 500m (1,640′) (multimode) system range
Standards Compliance: Supports DVI1.0, fully implemented by fiber optic communication and DDC2B by virtual DDC; Class A digital device, pursuant to part 15 and 2 of FCC and CE
EDID Capture: Copies and stores the EDID from a display device (614T)
EMI / RFI free for connected cables
1 SC multimode fiber optic cable
External power adapters (included) or 5VDC from source (auto detect)
NanoTools size
SKU: 614R/T Category:

Kramer 614R/TĀ Specs

Inputs 1 x DVI (614T), 1 x multimode fiber optic with SC connector (614R)
Outputs 1 x multimode fiber optic with SC connector (614T), 1 DVI (614R)
Maximum Data Rate 6.75 Gb/s (2.25 Gb/s per graphic channel), up to WUXGA, 2K or 1080p @ 36-bit color depth (does not support XGA)
Maximum Range 1,640′ (500 m) over 50 / 125 Ī¼m multi-mode fiber at WUXGA (1920 x 1200), 60 Hz refresh rate
Power Source 5 VDC, 200 mA maximum (614T); 280 mA maximum (614R)
Operating Temperature 32 to 104Ā°F (0 to 40Ā°C)
Storage Temperature -40 to 158Ā°F (-40 to 70Ā°C)
Humidity 10 to 85%, RHL non-condensing
Dimensions 1.50 x 2.20 x 0.57″ (3.81 x 5.59 x 1.45 cm)
Weight 0.31 lb (0.14 kg) approximately
