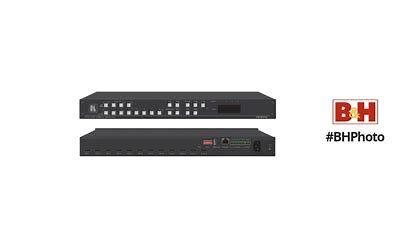

Kramer 8×4 4K HDR HDCP 2.2 Matrix Switcher with Digital Audio Routing

Add to Wishlist
  • Route 8×4 4K60 4:4:4 HDR Video Signals
  • 8 x HDMI Inputs, 4 x HDMI Outputs
  • HDCP 2.2/1.4 Compliant, Smart Switching
  • Independent Audio Routing,12×12 Matrix
  • Deep Color, 3D, ARC, 7.1 Audio Support
  • EDID Management, Pattern Generator
  • Kramer Step-In Collaboration Support
  • 16 Presets, IP & RS-232 Serial Control
  • 1 RU Rackmount Enclosure

AED19,299.00

Add to Wishlist

The 1 RU 8×4 4K HDR HDCP 2.2 Matrix Switcher with Digital Audio Routing from Kramer allows you to switch between eight HDCP-compliant HDMI inputs to any or all four HDMI outputs at up to 18 Gb/s data rate. All the inputs and outputs support ARC for independent audio routing, producing a 12×12 audio matrix.

The unit supports embedded audio, up to 4K60 4:4:4 resolution, and features EDID management, HDCP 2.2/1.4, 16 presets, smart switching, a pattern generator, as well as IP and RS-232 serial control. Featuring Kramer’s Step-In over HDMI collaboration functionality, the switcher enables active source detection for priority selection or the last connected automatic and manual switching with a supported Step-In supported switch. The 1 RU enclosure allows you to easily fit the matrix onto a standard rack.

Key Features
High-Performance AV Matrix
Switch eight 4K60 4:4:4, HDR, HDMI, HDCP (2.2/1.4) compliant signals to four 4K60 Hz 4:4:4, HDR, HDMI, HDCP (2.2/1.4) compliant outputs at up to 18 Gb/s data rate. It features Kramer Re-Klocking and Equalization Technology that rebuilds the digital signal to travel longer distances. Note: For optimum range and performance, use recommended Kramer cables.
HDMI Support
Deep Color, 3D, ARC, and up to 7.1 uncompressed audio channels as specified in HDMI 2.0.
Independent Audio Routing
Any embedded digital audio input can be routed to any digital output, in addition to ARC sources, to produce an equivalent 12×12 audio matrix (eight embedded digital inputs + four ARC inputs and four digital outputs + eight ARC outputs).
Easy Step-In Collaboration Function
When used with a Kramer Step-In enabled switcher, just plug in your device and press the Step-In button and your device becomes the active signal on the main display.
EDID Management
Individual EDID management per input and it captures and stores the EDID from a display device.
Flexible Content Protection
Selectable HDCP 1.4 or 2.2 per input.
Quick Access to Common Configurations
Save up to 16 preset configurations.
Smart Switching
Active source and acceptor detection. Automatic input selection based on priority selection or last connected input.
Embedded Pattern Generator
Embedded pattern generator with selectable patterns.
Unit Control and Configuration Options
Local control via front-panel switching, memory, lock and EDID buttons, and an input/output LED display. Distance control via user-friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS-232 serial commands transmitted by a computer, touchscreen system, or other serial controller.
Cost-Effective Maintenance
Input selection indicators facilitate easy local maintenance and troubleshooting. Firmware upgrade via Ethernet or mini-USB.
Easy Installation
19″ enclosure for rack mounting in a 1 RU rack space with included rack ears and universal 100 to 240 VAC power supply.
SKU: VS-84H2 Category: Tag:
Processing
Switching Type
Pushbutton, Software
Processing Resolution
UHD 4K at 30/60
Input
Video Inputs
8x HDMI (2.0) Female
Input Video Format
HDMI (4:4:4)
UHD 4K at 60 fps
Embedded Audio Input
HDMI
Output
Video Outputs
4x HDMI
Output Video Format
HDMI (4:4:4)
UHD 4K at 60 fps
Embedded Audio Output
HDMI
Connectivity
Other I/O
1x Mini-USB Input
1x Block 3-Pin Control, RS-232 Input
1x RJ45 Control, LAN Input/Output
1x USB-A Output
HDCP Support
Yes, Version 2.2
Hardware
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1x IEC C14 Input
Power Consumption
Device: 100 to 240 VAC at 600 mA
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90%
General
Rack Form Factor
1 RU
Dimensions
17.2 x 7.2 x 1.7″ / 43.6 x 18.3 x 4.4 cm
Weight
4.6 lb / 2.1 kg
Packaging Info
Package Weight
6.33 lb
Box Dimensions (LxWxH)
21.5 x 13 x 4.3″
