Active Wall Plate- HDMI over Extended Range HDBaseT Twisted Pair Transmitter

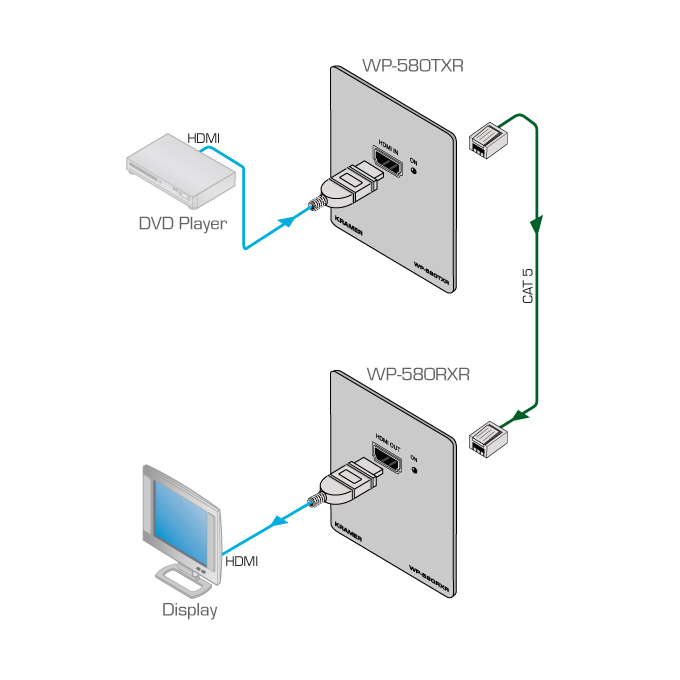

The WP-580TXR is an extended range, HDBaseT twisted pair wall plate transmitter for HDMI signals. The WP-580TXR inputs HDMI signals and converts them into an HDBaseT twisted pair signal that it transmits to aĀ WP-580RXRĀ receiver.
Product Features and Benefits
- Max. Data Rate – 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode.
- HDTV Compatible.
- HDCP Compliance.
- HDBaseT Technology.
- HDMI Support – Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
- 3D Pass-Through.
- EDID PassThru – Passes EDID signals between the source and display.
- 2K & 4K Support in Normal Mode.
- System Range – Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-HDKat6a cables
Mechanical | Ā |
Width | 4.50 in (11.43 cm) |
Height | 4.50 in. (11.43 cm) |
Depth | 1.13 in. (2.86 cm) |
Weight | 0.4 lbs (0.2 kg) |
Video | Ā |
Inputs | 1 HDMI connector. |
Outputs | 1 HDBaseT twisted pair RJ-45 connector. |
Bandwidth | 10.2Gbps (3.4Gbps per graphic channel). |
RS-232 Baud Rate | 115200 |
Compliance | Supports HDMI and HDCP |
Power | Ā |
Consumption | 5V DC, 390mA. |
Power Supply | Included |
Environmental | Ā |
Operating Temperature | 32 – 104°F (0 – 40°C) |
Storage Temperature | -40 – 158°F (-40 – 70°C) |
Humidity | 10% to 90%, RHL non-condensing |
