Active Wall Plate- HDMI over HDBaseT Twisted Pair Transmitter

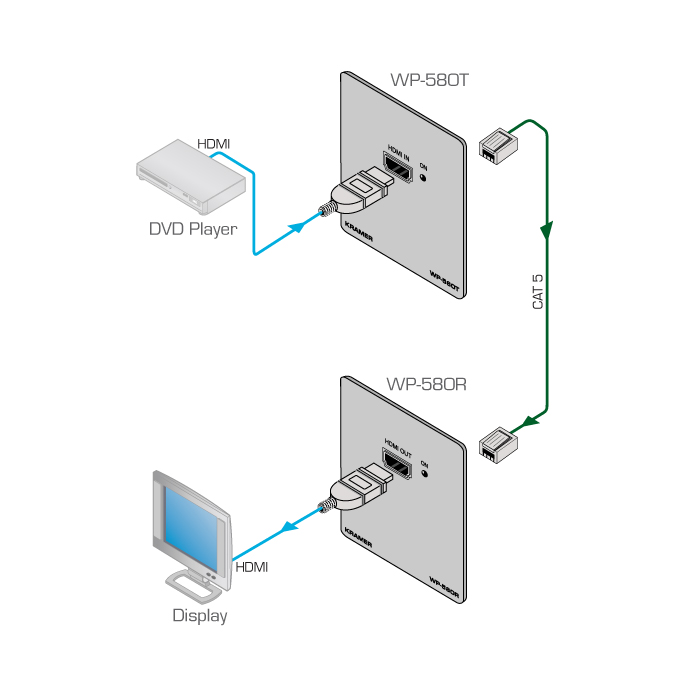

The WP-580T is a high-performance, HDBaseT twisted pair wall plate transmitter for HDMI signals. The WP-580T inputs HDMI signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP-580R receiver.
Product Features and Benefits
- Max. Data Rate – 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliance.
- HDBaseT™ Technology.
- HDMI Support – Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
- 3D Pass-Through.
- EDID PassThru – Passes EDID signals between the source and display.
- 2K & 4K Support.
- System Range – Up to 70m (230ft).
| Mechanical |
|
| Width |
4.50 in (11.43 cm) |
| Height |
4.50 in. (11.43 cm) |
| Depth |
1.13 in. (2.86 cm) |
| Weight |
0.4 lbs (0.2 kg) |
| Video |
|
| Inputs |
1 HDMI connector. |
| Outputs |
1 HDBaseT twisted pair RJ-45 connector. |
| Bandwidth |
10.2Gbps (3.4Gbps per graphic channel). |
| RS-232 Baud Rate |
115200 |
| Compliance |
Supports HDMI and HDCP |
| Power |
|
| Consumption |
5V DC, 360mA. |
| Power Supply |
Included |
| Environmental |
|
| Operating Temperature |
32 – 104°F (0 – 40°C) |
| Storage Temperature |
-40 – 158°F (-40 – 70°C) |
| Humidity |
10% to 90%, RHL non-condensing |
