Kramer AV-over-IP Wall Plate Decoder for 4K60 4:2:0 & HDR10 over 1G Network (White, US 2-Gang)

Add to Wishlist
Key Features
  • Ideal for Large-Scale Deployments
  • US 2-Gang Format
  • Robust Security
  • Simple Planning and Rollout

AED6,199.00

Add to Wishlist

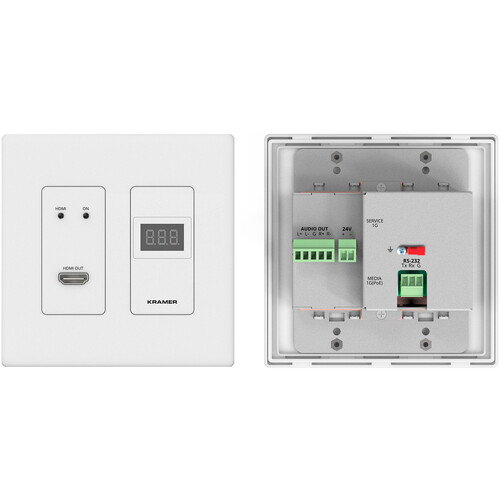

The white Kramer WP-DEC7/US-D(W) AV-over-IP Wall-Plate Decoder for 4K60 4:2:0 & HDR10 over 1G Network is an advanced decoder for streaming 4K@60 Hz (4:2:0) video signals via Ethernet over copper cable.

  • Video streaming receiver: streams up to 4K@60 Hz (4:2:0) resolution signals over a 1G network interface.
  • HDR: support HDR10 up to 4K@30 Hz 4:2:2 12-bit.
  • Streaming support: unicast and multicast.
  • Analog audio de-embedding output: extract the HDMI audio or LAN streaming audio and output it as balanced analog audio.
  • Convenient and comprehensive control: control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet or front-panel LCD and buttons.
  • Control gateway: through P3K or special TCP connection, user could control/communicate with RS-232 and CEC to the connected devices.
  • Video wall: up to 16×16 size.
  • PoE support: option to power with PoE connection from a PoE switch.
SKU: WP-DEC7/US-D(W) Category: Tag:
Interfaces
Inputs
2x RJ45
Outputs
1x HDMI
1x Block 5-Pin (Stereo Analog)
Other I/O
1x Block 3-Pin RS-232
Standards
HDCP Support
No
EDID Support
No
Transmission
Video Format
HDMI (4:2:0)
UHD 4K: 60 fps
Power
PoE Support
Yes
Power Consumption
(4 W)
General
Weight
1.1 lb / 0.5 kg
