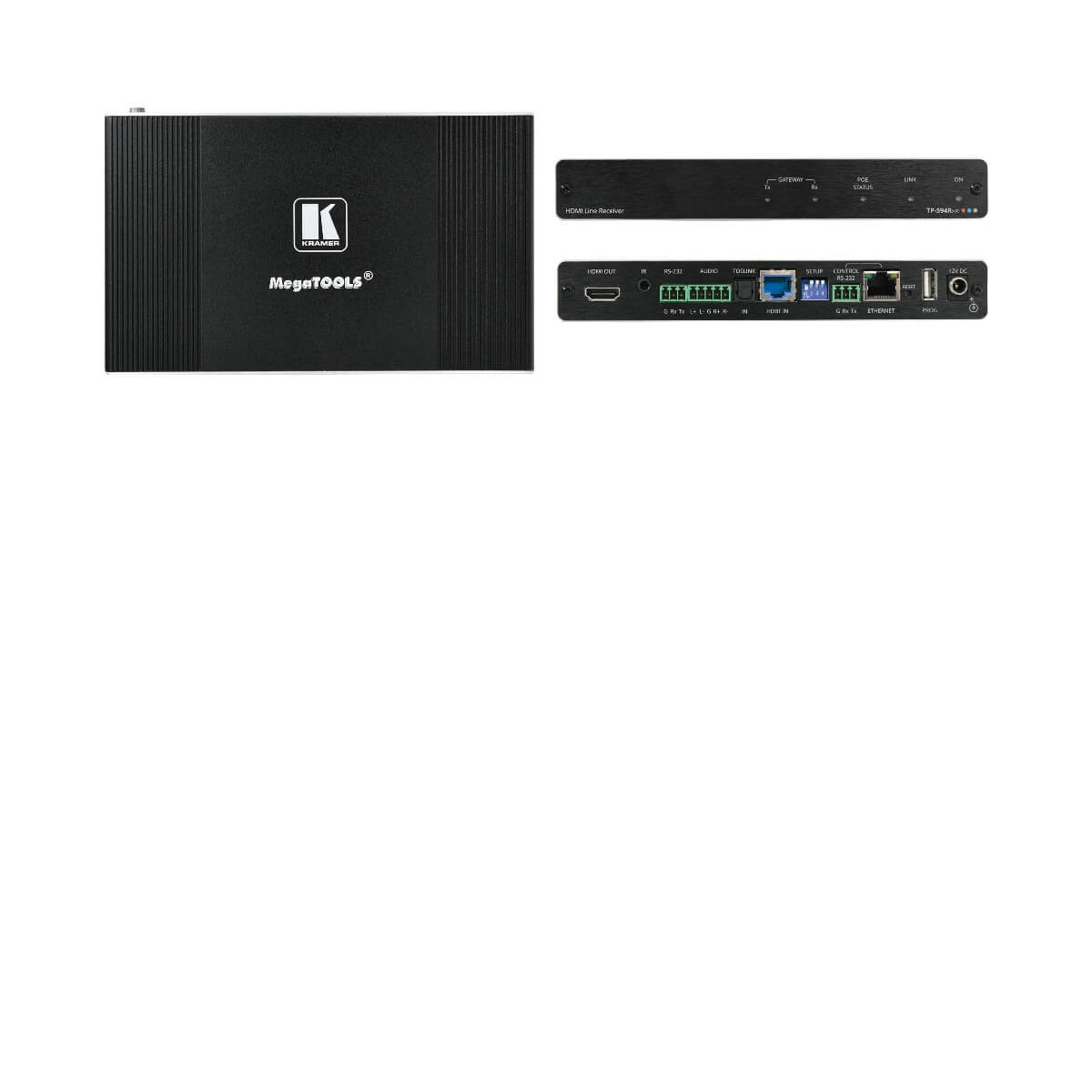

Kramer AV TP-594Rxr

Add to Wishlist
  • Input: HDBT: On an RJ 45 connector, Optical (Digital Audio): On a TOSLINK connector
  • Output: HDMI: On a female HDMI connector
  • Up to 100m (330ft) at 4K@60Hz (4:4:4)
  • Intelligent IP driven control gateway

5,999.00 د.إ

Add to Wishlist

The Kramer AVĀ TPāˆ’594Rxr is a highāˆ’performance, extendedāˆ’reach HDBaseT 2.0 receiver for 4K@60Hz (4:4:4) HDR, HDMIā„¢, Ethernet, RSāˆ’232, IR, ARC (Audio Return Channel) and stereo audio signals over twisted pair. TPāˆ’594Rxr receives extended HDBaseT 2.0 signals and converts them back to HDMI, Ethernet, RSāˆ’232, IR, ARC and stereo audio signals. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) 24bpp video resolution and provides even further reach for lower HD video resolutions

SKU: 50-00010290 Category: Tag:
  • Compatible with standard HDBaseT 2.0 systems
  • ARC, Ethernet & control signal extension
  • PoE acceptor
  • Balanced Stereo Audio: On a 5 pin terminal block connector
  • Ethernet: On an RJ 45 female connector for device control and LAN extension
  • RS-232: On a 3 pin terminal block for serial link extension
  • IR : On a 3.5mm mini jack for IR extension
  • Control RS-232: On a 3 pin terminal block for device control
  • USB: On a female USB A connector for device firmware upgrade
  • Compression: Low level standard DSC compression for signals above 4K@60 (4:2:0)
  • 4K@60 (4:4:4) Range with Compression: Up to 100m (330ft)
  • 4K@60 (4:2:0) Range with No Compression: Up to 100m (330ft)
  • Full HD (1080p@60Hz) Range with No Compression: Up to 130m (430ft),
  • Full HD (1080p@60Hz) Range in Ultra Long Mode: Up to 180m (590ft)
  • Compliance: HDBaseT 2.0
  • Note: Use Kramer shielded cables to achieve optimum extension ranges
