Kramer AV VS-44HDxl


  • Max Switching Configuration: 4×4
  • Inputs: SDI, HD-SDI, 3G HD-SDI, and dual link HD-SDI
  • Outputs: 4 equalized and reclocked SMPTE 259M, 292M outputs on BNC connectors, 1 looped genlock 75 Ohms/Hi Z on a BNC connector
  • Max Data Rate: 3Gbps

AED17,799.00

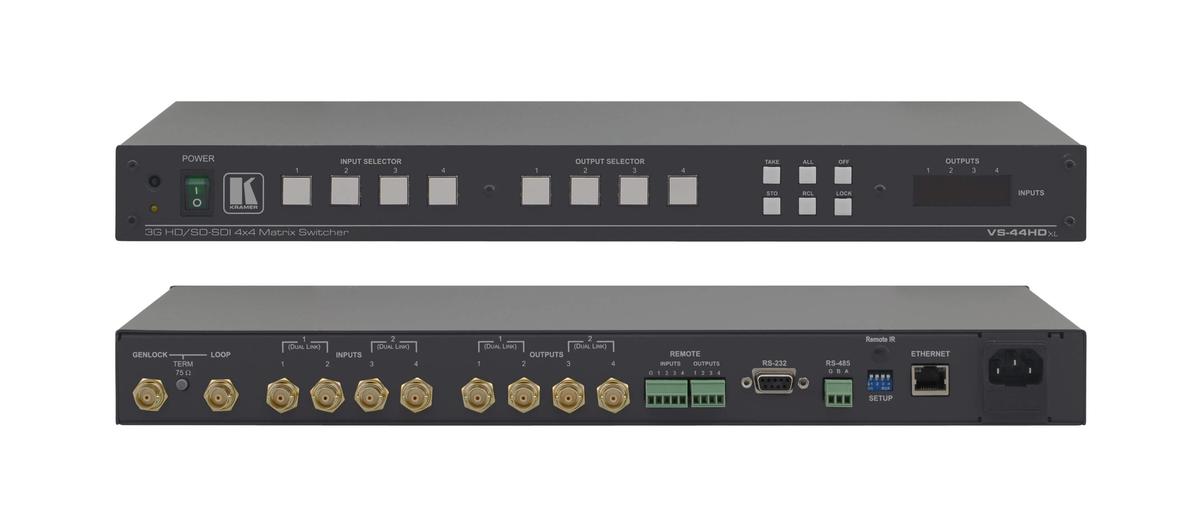

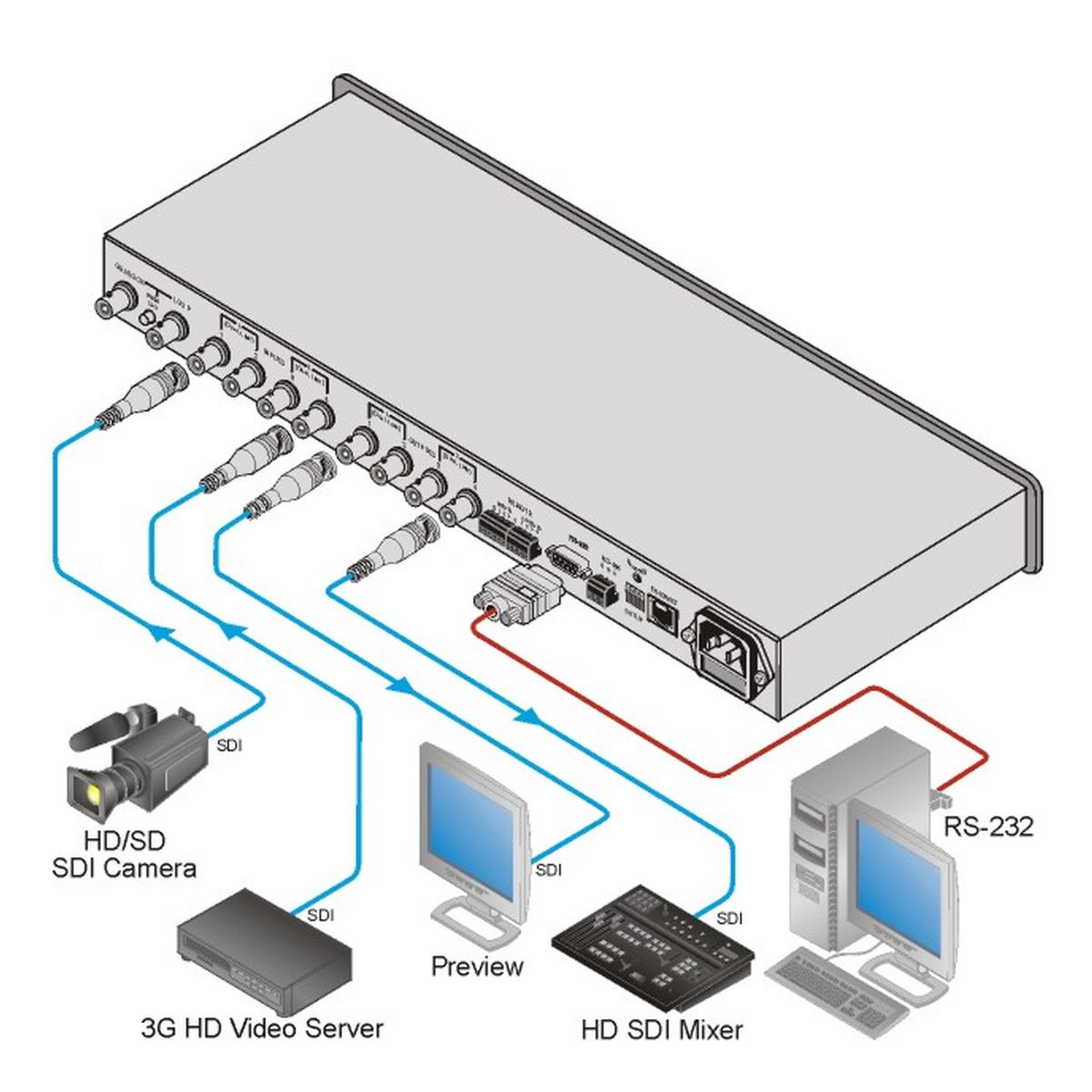

The VS-44HDxl by Kramer is a high-performanceĀ 4×4 3G HD-SDI Matrix Switcher. This switcher was designed to manage SD-SDI, HD-SDI, dual link HD-SDI, and 3G HD-SDI signals. With aĀ max matrix switching configuration of 4×4. Switching is implemented during the vertical interval in compliance with the SMPTE RP-168 standard. With the ability to switch any or all inputs to any or all outputs this Matrix Switcher is ideal in scenarios where you have a smaller amount of sources going to 1 to 4 outputs.

The device can be controlled via the front panel, the included IR remote control, RS-232, RS-485, or via the web, you can also store up to 16 presets and easily recall for frequent use. The VS-44HDxl is a high quality matrix switcher

SKU: 21-70686010 Category: Tag:
  • HDTV Compatible
  • Front Panel Control Option and Lockout
  • Control Options: Front Panel, RS-232, RS-485, Ethernet, contract closure & IR Remote Control
  • KRouter Windows Based Software Included
  • Take Button: Executes multiple switches at the same time
  • Bi-Level and Tri-level analog sync type supported
  • Active Input Type Reporting : Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high-definition (HD-SDI) input signal
  • Included Accessories: Power Cord & Null-Modem Adapter, IR Remote Control
