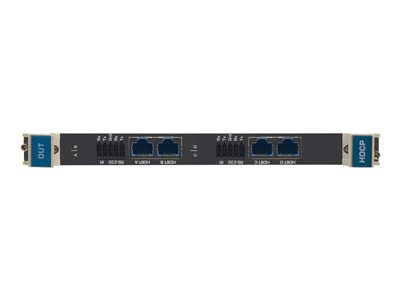

Kramer DT-OUT4-F32 4-Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Output Card – expansion module – HDBaseT x 4 + RS-232 x 4 + IrDA x 4

Add to Wishlist

Kramer DT-OUT4-F32 4-Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Output Card – Expansion module – HDBaseT x 4 + RS-232 x 4 + IrDA x 4

AED9,399.00

Add to Wishlist

DT-OUT4-F32 is a four-channel 4K@60Hz (4:2:0), long reach, HDBaseT output card for the VS-3232 Series Modular Multi-Format Digital Matrix Switchers. DT-OUT4-F32 outputs four long reach HDBaseT signals with bidirectional RS-232 and IR from the chassis to the line.

SKU: 20-70008498 1 Category: Tag:
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports HDBaseT x 4 + RS-232 x 4 + IrDA x 4
Connectivity Technology Wired
Data Link Protocol HDBaseT
Performance
Maximum data rate 10.2 Gbps
Maximum data rate (per graphic channel) 3.4 Gbps
Features HDTV Compatible, HDCP compliant, 4K resolution support, 3D Pass-Through, Kramer Equalization & re-Klocking Technology, 12-bit Deep Color support, bi-directional IR, HDBaseT Long Reach Mode, bidirectional RS-232
Compliant Standards HDCP 1.4
Expansion / Connectivity
Interfaces 4 x HDBaseT – RJ-45 – female
4 x RS-232 – terminal block
4 x IrDA – terminal block
Miscellaneous Included Accessories: Screwdriver
Compliant Standards RoHS, WEEE
Power
Power Consumption Operational 8 Watt
Dimensions & Weight
Width 8.5 in
Depth 7.5 in
Height 0.8 in
Weight 10.58 oz
Dimensions & Weight (Shipping)
Shipping Width 9.8 in
Shipping Depth 8.9 in
Shipping Height 2.2 in
Shipping Weight 17.64 oz
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
