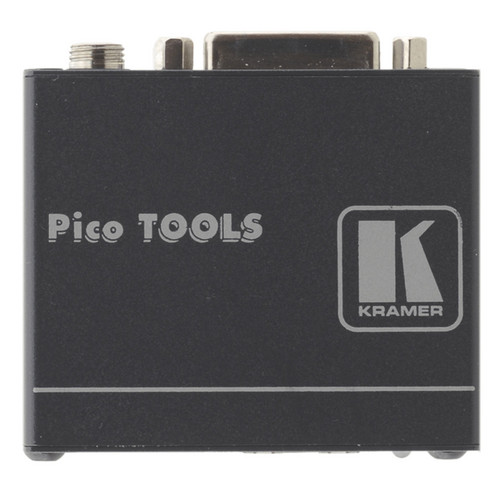

Kramer DVI over Twisted Pair Receiver

Add to Wishlist
Key Features
  • Resolution Support – up to UXGA
  • System Range up to 330’/256′ (SXGA/UXGA)
  • EDID PassThru
  • Power Connect System
  • HDTV Compatible
  • HDCP Compliant
  • 1/4 Rack Space

AED1,299.00

Add to Wishlist

The Kramer DVI over Twisted Pair Receiver is used to receive DVI signals sent over a twisted pair cable. Supporting a maximum data rate of up to 1.65Gbps, the receiver accepts input signals up to UXGA resolutions. Converting the twisted pair signal back to DVI, the receiver offers a maximum range of up to 330’ (100m) for SXGA or up to 256’

Kramer PT-572HDCP Overview

The Kramer DVI over Twisted Pair Receiver is used to receive DVI signals sent over a twisted pair cable. Supporting a maximum data rate of up to 1.65Gbps, the receiver accepts input signals up to UXGA resolutions. Converting the twisted pair signal back to DVI, the receiver offers a maximum range of up to 330’ (100m) for SXGA or up to 256’ (80m) for UXGA resolutions using the shielded BC-DGKat723 cable.

With EDID PassThru, the Twisted Pair Receiver passes the EDID/HDCP signals from source to display for avoiding compatibility issues with the connected display. The transmitter requires a 12V DC power supply (included) for operation. Power Connect System allows both the transmitter and the receiver to be powered with a single connection when the units are within 270’ (90m) of each other. In addition, 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor.

Receives DVI signals sent over a twisted pair cable
Supports a maximum data rate of up to 1.65Gbps
Supports input signals up to UXGA resolutions
Converts the twisted pair signal to DVI
Maximum range of up to 330′ (100m) for SXGA or up to 256′ (80m) for UXGA resolutions using the shielded BC-DGKat723 cable
EDID PassThru
Passes the EDID/HDCP signals from source to display for avoiding compatibility issues with the connected display
Requires a 12V DC power supply (included) for operation
Power Connect System allows both the transmitter and the receiver to be powered with a single connection when the units are within 270′ (90m) of each other
4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor
HDTV compatible
HDCP compliant
SKU: PT-572HDCP+ Category: Tag:

Kramer PT-572HDCP Specs

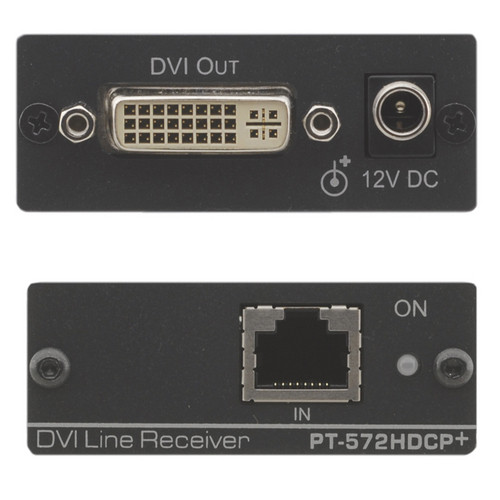

Input 1 RJ-45 connector
Output 1 DVI, 1.2Vpp on a DVI Molex 24-pin female connector, DDC signal 5Vpp (TTL).
Bandwidth Supports up to 1.65Gbps
Power Source 12V DC, 250mA
Dimensions 2.4 x 2.1 x 1″ (6.2 x 5.2 x 2.4 cm)
Weight 0.3 lb (0.14 kg)
Packaging Info
Package Weight 1.01 lb
Box Dimensions (LxWxH) 6.35 x 4.8 x 3.45″
