Kramer FC-102Net 2-Channel Dante Decoder & PoE Acceptor

Add to Wishlist
Key Features
  • PoE Powered over Ethernet
  • Decode Two Channels to Dante Network
  • Great for Powered Speakers & Amplifiers
  • Output Volume Control
  • Dante IP & Kramer Protocol 3000 Control
  • Compact PicoTOOLS Fanless Enclosure
  • Low Jitter / Up to 96 kHz Sample Rate
  • Includes Double-Sided Dual Lock Tape
  • Includes Bracket Set

2,499.00 د.إ

Add to Wishlist

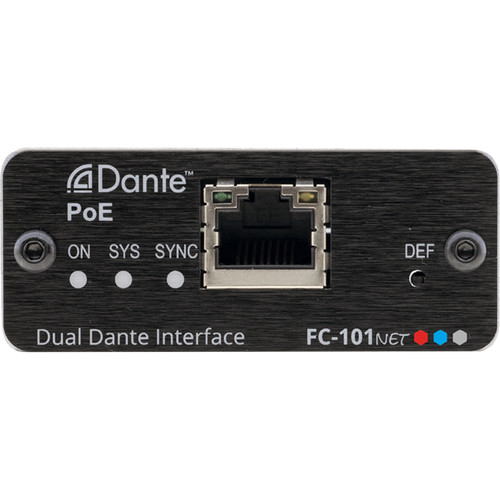

The Kramer FC-101Net Dual-Channel Dante Interface Decoder provides professional quality with advanced and user-friendly operation of streaming, distributing, and managing audio signals over IP networks, making it well suited for classrooms, retail, small to mid-sized meeting rooms, and boardrooms.
The FC-101Net features two balanced mono audio outputs on 3-pin terminal blocks. It enables connecting non-Dante devices, such as amplifiers and powered speakers, to a Dante network and enables volume control. The Kramer FC-101Net is powered over Ethernet from any standard PoE providing network switch and ships with two squares of double-sided dual lock tape and a bracket set.

Connections and Control
  •  Dante Network Interface
  •  PoE Acceptor
  •  Inputs: Two Dante channels on an RJ-45 connector
  •  Output: Two balanced mono audio on 3-pin terminal blocks
  •  Output Volume Control
  •  Versatile Control via the Dante IP control matrix and Kramer Protocol 3000 via RS-232 connection
Studio-Grade Signal Conversion Technology
  • Includes the latest generation 32-bit advanced Digital Analog Converter architecture to achieve remarkable dynamic performance and improved tolerance to clock jitter
  • Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz
Easy Installation
  • Single twisted-pair cable for signal and power wiring
  • Compact PicoTOOLS fanless enclosure for device-back mounting, or side-by-side mounting of 4 units in a 1 RU rack space with the recommended rack adapter
SKU: FC-101NET Category: Tag:
Outputs
1 x Balanced Stereo Audio 2 x Mono Audio: On 2 x 3-Pin Terminal Blocks
Ports
Dante: On RJ-45 Connector
User Interface
Control: Dante IP Control Matrix, Kramer Protocol 3000 via RS-232, Audio Input Configuration DIP-Switches, Reset Button
Indicators: Power, Dante Network, Input Selection, and Digital Operation LEDs
Power
Source: 48 VDC (PoE)
Consumption: 100 mA
Enclosure
Size: PicoTOOLS
Type: Aluminum
Cooling: Convection Ventilation
Environmental
Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Humidity: 10 to 90%, RHL Non-Condensing
Compliance
Safety: CE
Environmental: RoHs, WEEE
Dimensions
2.4 x 2 x 1″ / 6.2 x 5.2 x 2.4 cm
Weight
3.5 oz / 100 g
Packaging Info
Package Weight
0.53 lb
Box Dimensions (LxWxH)
6.3 x 4.8 x 3.4″
