Kramer FC-113 HDMI to 3G/HD-SDI Format Converter


Key Features
  • Converts (1) HDMI Signal to (2) SDI
  • Outputs SDI, HD-SDI, and 3G-SDI w/ Audio
  • Data Rates Up to 3 Gb/s
  • HDTV Compatible

AED3,799.00

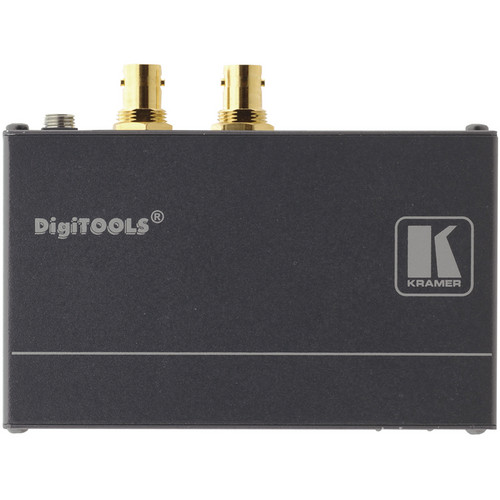

The FC-113 HDMI to 3G HD-SDI Format Converter from Kramer is a video format converter which converts a single HDMI input signal to two identical 3G HD-SDI video signals with embedded audio, but does not perform frame rate or resolution conversion. The maximum data rate of the FC-113 is 3 Gb/s, which means it can perform single-cable 3G-SDI (SMPTE 424M) output on both BNC connectors. The device can also handle SDI (SMPTE 259M) and HD-SDI (SMPTE 292M) on both outputs.

Part of Kramer’s DigiTOOLS line, the compact FC-113 fits into a third of a single rack unit on a standard 19″ rack, which means that three similar-sized devices can be installed side-by-side using the optional RK-3T adapter (sold separately).

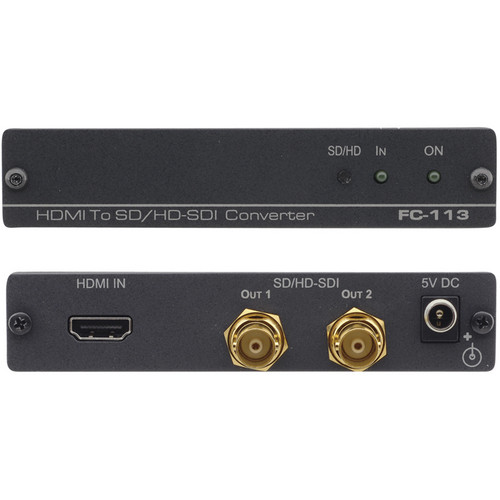

Two LED indicators denote the input signal type. The SD/HD LED illuminates green to indicate standard definition and blue to indicate high definition. The IN LED illuminates green to indicate an HDMI signal.

Maximum Data Rate of 3Gb/s
HDTV compatible
No frame-rate or resolution conversion
Three units can be rack mounted side by side in a 1RU rack space
SKU: FC-113 Category: Tag:
Input
1 x HDMI
Outputs
2 x BNC, SD/HD/3G-SDI
Power Input
1 x DC barrel connector, 5 VDC
Maximum Data Rate
3 Gb/s
Input Formats
525i; 625i
1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i @ 50, 59.94, 60; 720p @ 50, 59.94, 60
Standard
HDMI
LED Indicators
1 x LED (green/blue): SDI/HD-SDI
1 x LED (green): power ON
1 x LED (green): IN
Power Source
5 VDC, 470 mA
Dimensions
1.0 x 4.7 x 2.8″ (2.4 x 12.0 x 7.2 cm)
Weight
0.7 lb (0.3 kg)
Packaging Info
Package Weight
1.345 lb
Box Dimensions (LxWxH)
9.2 x 4.95 x 3.35″
