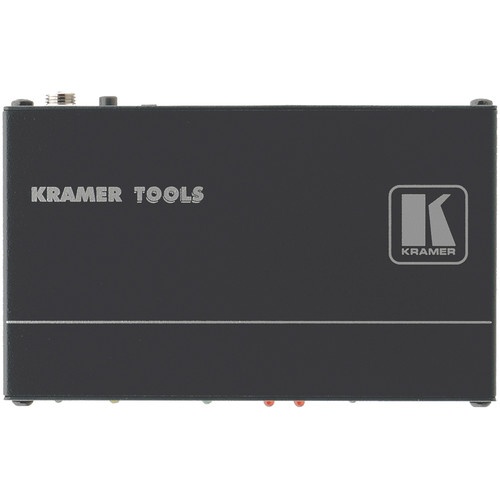

Name: Kramer FC-22ETH 2-Port Ethernet Controller
SKU: FC-22ETH
Price: 1899.00 AED
Availability: InStock

The FC-22ETH 2-Port Ethernet Controller from Kramer is a bidirectional RS-232 or RS-485 to Ethernet control signal converter. It allows two RS-232 or one RS-485 and one RS-232 controllable device to be controlled via an Ethernet or LAN connection.

Ideal for use with Ethernet/RS-232 interfaces and/or Ethernet/RS-485 interfaces

Simultaneous Communication with up to 40 PC clients

USB Port for firmware upgrades

Three units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

SKU: FC-22ETH Category: Ethernet Controller Tag: FC-22ETH

Kramer FC-22ETH Specs

Ports	1 x 3−pin terminal block serial, RS-232 1 x 3−pin terminal block serial, RS-232 or RS−485 selectable 1 x RJ−45, Ethernet
Controls	Serial Select button RS-485 terminator switch DHCP and Factory Default buttons
Indicators	Power, Ethernet, Serial 1, Serial I/O, and DHCP status LEDs
Power Consumption	5 VDC
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-40 to 158°F (-40 to 70°C)
Humidity	10% to 90%, RHL non-condensing
Dimensions	4.76 x 2.74 x 0.98″ (12.09 x 6.96 x 2.49 cm)
Weight	1.1 lb (0.5 kg)
