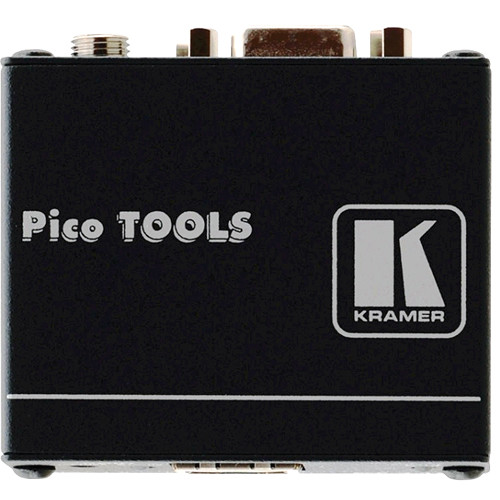

Kramer PT-110XL Pico Tools Computer Graphics Video over Twisted Pair Transmitter with EDID


AED1,499.00

Kramer PT-110Ā Overview

TheĀ PT-110XL Pico Tools Computer Graphics Video over Twisted Pair Transmitter with EDIDĀ fromĀ Kramer ElectronicsĀ is an extended range UXGA line transmitter designed for sending computer graphics video signals over twisted-pair cabling. This unit receives a UXGA signal and transmits it over a CAT 5/6 cable to the PT-120XL or TP-120 receiver (sold separately).

The PT-110XL is HDTV compatible and has a system range of up to 820′. It can be used for presentation and multimedia applications, as well as long-range graphics distribution for schools, hospitals, security, stores and similar venues.

Resolution of up to WUXGA and 1080p
HDTV compatible
Power Connect system allows a single connection to the transmitter or the receiver to power both units when the devices are within 150′ from each other
Up to 820′ transmission range
Note:

When used with Kramer’s twisted pair xl receivers (such as PTāˆ’120xl, TPāˆ’122xl or TPāˆ’126xl)
EDID capture – copies and stores the EDID from a display device
Increased noise immunity – an increased level of protection against noise, spikes and interference in adverse environments
Compact and rackmountable
Use for presentations & multimedia applications as well as for long-range graphics distribution for schools, hospitals, security, and stores

Kramer PT-110Ā Specs

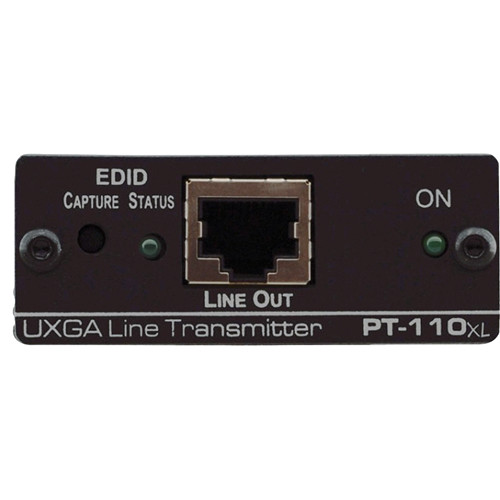

Connectors 1 x 15-pin HD VGA/UXGA
1 x RJ-45 Line output
1 x 12 VDC power
Indicators and Controls 1 x Capture button
1 x Status LED
1 x ON LED
Resolution Up to WUXGA, 1080p
Transmission Range Up to 820′ (250 m)
Power Consumption 12 VDC, 285 mA
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -40 to 158°F (-40 to 70°C)
Humidity 10 – 90%, RHL non-condensing
Power Supply 12 VDC (external)
Dimensions 2.4 x 2.6 x 1.0″ (6.0 x 6.5 x 2.5 cm)
Weight Approx 0.31 lb (0.14 kg)
Packaging Info
Package Weight 1.1 lb
Box Dimensions (LxWxH) 6.9 x 4.9 x 1.08″
