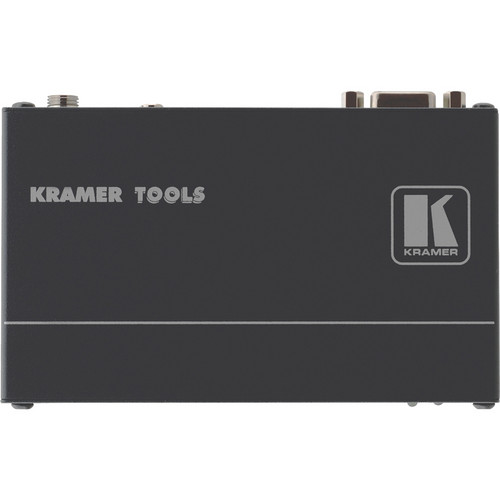

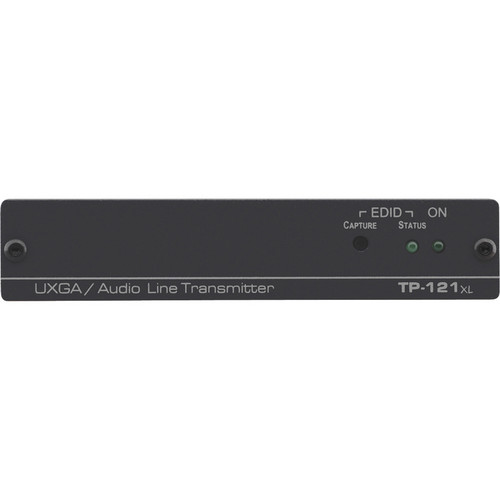

Kramer TP-121XL Computer Video & Stereo Audio over Twisted Pair Transmitter

Add to Wishlist

AED1,699.00

Add to Wishlist

Kramer TP-121XL Overview

The TP-121XL Computer Video & Stereo Audio over Twisted Pair Transmitter from Kramer Electronics is a high-performance twisted pair transmitter for computer graphics video and unbalanced stereo audio signals. It converts the input signals to a CAT 5 twisted pair cable and transmits them over to a TP-122XL receiver.

Max Resolution-UXGA &1080p
HDTV Compatible
EDID Capture – CapturesEDID from the dispaly or uses pre-programmed default EDID
Interference Protection – Increased level of protection against noise, spikes, and interference in adverse environments
Power Connect System – A single connection to the transmitter or the receiver powers both units when the devices are within 200′ of each other.
SKU: TP-121XL Category: Tag:

Kramer TP-121XL Specs

Input 1 x UXGA on a 15-pin HD connector
1 x 3.5 mm mini jack (unbalanced stereo)
Output 1 x RJ-45 connector (twisted pair)
Resolution Up to WUXGA and 1080p
Audio Bandwidth 20 Hz – 20 kHz @-3dB
Audio S/N Ratio 84 dB
Total Gain Audio: Analog/analog:0 dB
Analog/SPDIF: -12 dBFS
Range More than 820′ (250 m)
Coupling AC
THD + N <0.02%
Cable Type CAT 5; UTP (un-shielded twisted pair) or STP (shielded twisted pair)
Power Consumption 12 VDC, 190 mA (370 mA when powering both devices)
Dimensions 4.76 x 2.83 x 0.95″ (12.1 x 7.18 x 2.42 cm)
Weight Approx 0.44 lb (0.2 kg)
Packaging Info
Box Dimensions (LxWxH) 12 x 7.15 x 2.44″
