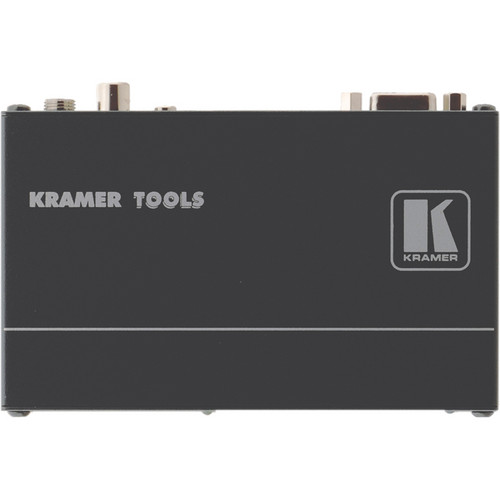

Kramer TP-122XL Computer Video & Stereo Audio over Twisted Pair Receiver

Add to Wishlist

AED1,599.00

Add to Wishlist

Kramer TP-122XL Overview

The TP-122XL Computer Video & Stereo Audio over Twisted Pair Receiver from Kramer Electronics is a high-performance twisted pair receiver for computer graphics video and unbalanced stereo audio signals. It converts the CAT 5 twisted pair cable from the TP-121XL transmitter to UXGA video, unbalanced stereo and S/PDIF audio signals.

Max Resolution-UXGA & 1080p
HDTV Compatible
Interference Protection – Increased level of protection against noise, spikes, and interference in adverse environments
Level (gain) and Equalization (peaking) Adjustment
Power Connect System – A single connection to the transmitter or the receiver powers both units when the devices are within 200′ of each other.
SKU: TP-122XL Category: Tag:

Kramer TP-122XL Specs

Input 1 x UXGA on a 15-pin HD connector; 1 x 3.5 mm mini jack (unbalanced stereo)
Output 1 x RJ-45 connector (twisted pair)
Resolution Up to WUXGA and 1080p
Audio Bandwidth 20 Hz – 20 kHz @-3dB
Audio S/N Ratio 84 dB
Total Gain Audio: Analog/analog:0 dB. Analog/SPDIF: -12 dBFS
Coupling AC
THD + N <0.02%
Cable Type CAT 5; UTP (un-shielded twisted pair) or STP (shielded twisted pair)
Power Consumption 12 VDC, 220 mA (360 mA when powering both devices)
Range More than 820′ (250 m)
Operating Temperature 32° to 104° F (0° to +40° C)
Dimensions 4.76 x 2.83 x 0.95″ (12.1 x 7.18 x 2.42 cm)
Weight Approx 0.44 lb (0.2 kg)
Packaging Info
Package Weight 1.25 lb
Box Dimensions (LxWxH) 9.1 x 4.8 x 3.5″
