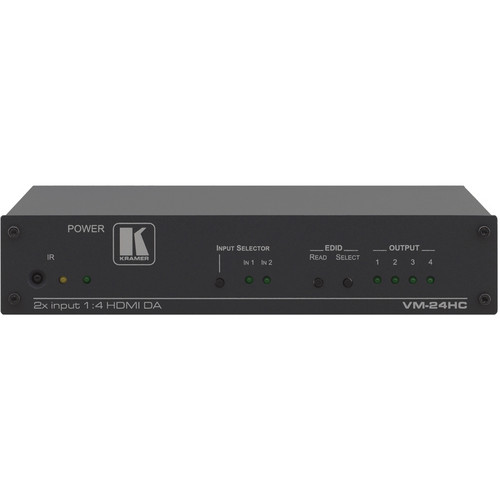

Kramer VM-24HC 2 x 1:4 HDMI Switcher & Distribution Amplifier

Add to Wishlist
  • For HDMI Signals
  • Infrared Control

AED3,099.00

Add to Wishlist

The Kramer VM-24HC 2 x 1:4 HDMI Switcher & Distribution Amplifier for HDMI signals. The unit accepts 1 of the 2 HDMI inputs and distributes the selected signal to 4 HDMI outputs.

Maximum Data Rate
6.75 Gbps (2.25 Gbps per graphic channel)
HDTV Compatible
HDCP Compliant
Kramer Equalization & Re-Klocking Technology
Rebuilds the digital signal to travel to longer distances
I-EDIDPro Kramer Intelligent EDID Processing
Intelligent EDID handling & processing algorithm ensures plug-and-play operation for HDMI systems
EDID Acquisition
Default, single output or all connected outputs (auto mix)
HDMI Support
Deep Color, x.v.Color, up to 7.1 Uncompressed Audio Channels
3D Pass-Through
Flexible Control Options
Front panel, IR remote, & RS-232
Desktop Size
Compact size; 2 units can be rack mounted side-by-side in a 1 U rack space with the optional RK-1 adapter
SKU: VM-24HC Category: Tag:

Kramer VM-24H Specs

Input
2 HDMI connectors
Outputs
4 HDMI connectors
Maximum Data Rate
6.75 Gbps (2.25 Gbps per graphic channel)
Compliance With HDMI Standard
Supports HDMI and HDCP
Controls
EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS-232, IR
Indicators
Power, IR, output LEDs
Power Consumption
5 VDC, 1.1 mA
Operating Temperature
32 to 131°F (0 to 55°C)
Storage Temperature
-49 to 162°F (-45 to 72°C)
Humidity
10 to 90%, RHL non-condensing
Dimensions
8.5 x 6.4 x 1.7″ (21.5 x 16.3 x 4.4 cm)
Weight
Approximately 1.3 lb (0.6 kg)
Packaging Info
Package Weight
3.24 lb
Box Dimensions (LxWxH)
13.8 x 8.45 x 2.85″
