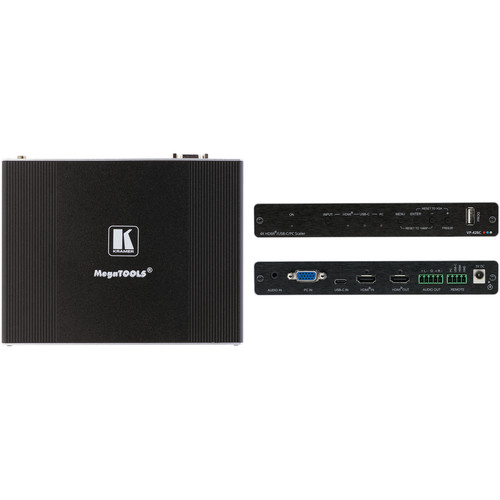

Kramer VP-426C 18G 4K HDMI, USB Type-C, and VGA ProScale Digital Scaler

Add to Wishlist
Key Features
  • Up to 4K60 Resolution
  • USB Type-C, HDMI, and VGA Inputs
  • Analog Audio Embedding/De-Embedding
  • HDMI Output
  • HDCP 2.2 & 1.4 Compliant

AED4,999.00

Add to Wishlist

The VP-426C 18G 4K HDMI, USB Type-C, and VGA ProScale Digital Scaler from Kramer is a high-performance digital scaler for HDMI, USB Type-C, and computer graphics signals. The unit up- or down-scales the selected video signal to resolutions up to 4K60 (4:4:4) at a maximum data rate of 18Gb/s (6Gb/s per graphic channel). The user selects the HDMI, USB Type-C, or VGA input and the scaled output is sent to the HDMI output.

Features at a Glance
  • Up-scales or down-scales HDMI, USB Type-C, and VGA signals to any resolution up to 4K at 60
  • Supports HDR10 and CEC in HDMI 2.0 and HDCP 2.2/1.4
  • Features input auto-switching and constant sync on the output, even if video signal is lost, and built-in ProcAmp for signal adjustment
  • Fast, smooth manual and auto switching between sources
  • Flexible analog audio embedding and extraction
  • User can select the unbalanced audio input to embed into the HDMI output signal as a balanced analog audio
  • EDID handling
  • Control using the front-panel buttons with input selector, video freeze, and resolution reset
  • 4-pin terminal block for remote connection
  • LED indicator for each input and power status
  • Firmware upgrade via the USB type-A port
  • Compact fanless enclosure for surface mounting or side-by-side mounting of 2 units in a 1 RU space with separately available adapter
SKU: VP-426C Category: Tag:
Inputs / Outputs
Video Inputs
1x HDMI (2.0) Female
1x USB-C Female
1x DE-15/DB-15 (VGA) Female
Audio Inputs
1x 1/8″ / 3.5 mm TRS Stereo
Video Outputs
1x HDMI Female
Audio Outputs
1x Block 5-Pin Stereo Analog Female
Other I/O
4x Block 4-Pin Control Input
1x USB-A Firmware Input
Expansion Slots
No
Latency
1 to 2 Frames
Format Support
Input Video Format
HDMI (4:4:4/4:2:0)
DCI 4K at 24/25/30/50/60 fps
DCI 2K at 24/25/30/50/60 fps
WQHD (2560 x 1440) at 60 fps
WUXGA+ (1680 x 1050) at 60 fps
HD+ (1600 x 900) at 60 fps
UXGA (1600 x 1200) at 60 fps
SXGA+ (1400 x 1050) at 60 fps
1360 x 768 at 60 fps
FWXGA (1366 x 768) at 60 fps
SXGA- (1280 x 960) at 60 fps
WXGA (1280 x 800) at 60 fps
1280 x 768 at 60 fps
SXVGA (1280 x 1024) at 60/75 fps
1080p at 24/25/30/50/60 fps
1080i at 50/60 fps
XGA (1024 x 768) at 60/70/75 fps
SVGA (800 x 600) at 56/60/72/75 fps
720p at 50/60 fps
VGA (640 x 480) at 60/67/72/75/85 fps
576i / 625 lines
480p
480i / 525 lines
VGA (4:4:4)
WUXGA (1920 x 1200) at 60 fps
WUXGA+ (1680 x 1050) at 60 fps
HD+ (1600 x 900) at 60 fps
UXGA (1600 x 1200) at 60 fps
SXGA+ (1400 x 1050) at 60 fps
FWXGA (1366 x 768) at 60 fps
1360 x 768 at 60 fps
SXGA- (1280 x 960) up to 60 fps
WXGA (1280 x 800) at 60 fps
1280 x 768 at 60 fps
SXVGA (1280 x 1024) at 60/75 fps
XGA (1024 x 768) at 60/70/75 fps
SVGA (800 x 600) at 56/60/72/75 fps
VGA (640 x 480) at 60/67/72/75/85 fps
Output Video Format
HDMI / VGA (4:4:4/4:2:0)
DCI 4K at 24/25/30/50/60 fps
DCI 2K at 24/25/30/50/60 fps
2560 x 1440 at 60 fps
1080p Ultrawide (2560 x 1080) at 50/60 fps
WUXGA (1920 x 1200) at 60 fps
1080p at 24/25/30/50/60 fps
WUXGA+ (1680 x 1050) at 60 fps
UXGA (1600 x 1200) at 60 fps
WXGA+ (1440 x 900) at 60 fps
SXGA+ (1400 x 1050) at 60 fps
1360 x 768 at 60 fps
WXGA (1280 x 800) at 60 fps
1280 x 768 at 60 fps
720p at 50/60 fps
1280 x 720 (Non-Standard WXGA) at 60 fps
SXGA (1280 x 1024) at 60 fps
XGA (1024 x 768) at 60 fps
SVGA (800 x 600) at 60 fps
720 x 576 at 50 fps
480p at 60 fps
VGA (640 x 480) at 60 fps
Output Audio Format
Analog
Embedded Audio
HDMI
Standards
EDID Support
Auto-Detect
HDR Support
Yes, HDR10
HDMI CEC
Yes
Hardware
Wireless
No
Power
Power I/O
1x Barrel (5 VDC at 2.4 A) Input
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90%
General
Dimensions
7.38 x 5.7 x 1″ / 18.75 x 14.5 x 2.54 cm
Weight
1.5 lb / 0.7 kg
Packaging Info
Package Weight
2.95 lb
Box Dimensions (LxWxH)
13.7 x 9.2 x 2.8″
