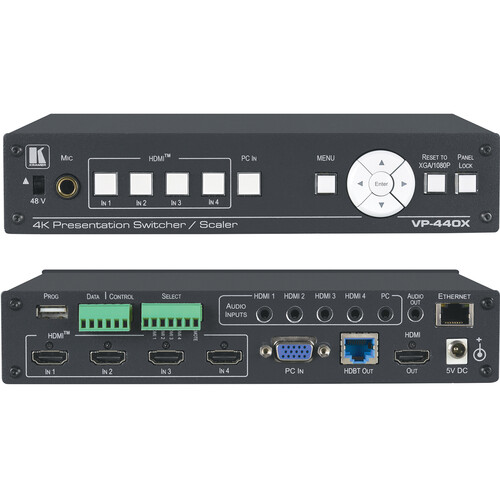

Kramer VP-440X 18G 4K Presentation Switcher/Scaler with HDBaseT & HDMI Simultaneous Outputs

Add to Wishlist
  • 4 x HDMI, 1 x VGA, Inputs
  • HDMI & HDBaseT Simultaneous Outputs
  • 4K UHD (3840 x 2160) at 60 Hz (4:4:4)
  • HDCP 1.4 & 2.2 Compliant
  • Analog/Embedded Audio Inputs & Outputs
  • Up to 230′ HDBaseT Extension
  • Front Panel, RS-232, OSD & Web Control

AED6,999.00

Add to Wishlist

Fed 4 video signals up to 4K resolution via HDMI and one VGA input into the Kramer VP-440X 18G 4K Presentation Switcher/Scaler with HDBaseT & HDMI Simultaneous Outputs. This switcher/scaler is a compact, high-performance 4K UHD device that scales the video, embeds input analog audio, and outputs the signal to an HDMI and an HDBaseT output simultaneously. The VP-440X supports HDCP 1.4 and 2.2 as well as EDID passthough, so you don’t have issues on your display monitor. It also supports HDR 10 for video images with expanded dynamic range. The HDBaseT output allows you to send your 4K60 Hz (4:2:0) signals up to 130′ using separately available Cat copper cables. Control the unit via front-panel selection buttons, OSD on your monitor, RS-232, or a web-based GUI for control by a PC.

High-Performance Professional Scaler
  • Up-scale, down-scale, and cross-scale up to resolutions of 4K@60 4:4:4 on HDMI, 4:2:0 on the HDBaseT output
  • Set the output resolution to match the native resolution of the inputs, or manually set to another resolution
  • When the VP-440X is configured to scale the output to 18G 4K resolutions, the HDBT output automatically down-samples to 4:2:0 coding
Smooth Switching
Constant output sync prevents output glitches while switching between inputs, even when no video is detected
Digital and Analog Audio
  • Select a dedicated unbalanced analog audio input to embed into each input, and you can use the microphone input for mixing, switching, or talk-over
  • Any of the signals can play audio through the unbalanced audio output port
  • The VP-440X supports DSP technology including audio equalization, mixing, delay, and microphone talk-over
Signal Extension
  • The VP-440X is HDCP 1.4 and 2.2 compliant
  • You can extend the 4K video signal over HDBaseT up to 130′
  • Supports EDID passthrough
  • Supports CEC signal passthrough
  • Supports bi-directional RS-232 signals
Control Options
Control the VP-440X using an OSD on your monitor, via front-panel buttons, embedded web pages via Ethernet and/or serial communication via RS-232 transmitted by a PC, touchscreen system or other serial controller
Half-Rack Width
An optional rack adapter allows you to put this half-rack wide unit into a rack if you so desire
SKU: VP-440X Category: Tag:
Processing
Switching Type
Pushbutton
Latency
1 to 2 Frames
Color Processing
4:4:4
Input
Video Inputs
4x HDMI
1x DE-15/DB-15 (VGA)
Input Video Format
HDMI
UHD 4K at 24/25/30/50/60 fps
DCI 2K 24/25/30/50/60 fps
WUXGA (1920 x 1200) 60 fps
WUXGA+ (1680 x 1050) 60 fps
HD+ (1600 x 900) 60 fps
SXGA+ (1400 x 1050) 60 fps
1360 x 768 60 fps
WXGA (1280 x 800) 60 fps
1280 x 768 60 fps
UXGA (1600 x 1200) 60 fps
SXGA- (1280 x 960) 60 fps
XGA (1024 x 768) 60/70/75 fps
SVGA (800 x 600) 60/72/75 fps
VGA (640 x 480) 60/72/75 fps
1080p 24/25/30/50/60 fps
1080i 50/60 fps
720p 50/60 fps
576p
480p
576i / 625 lines
480i / 525 lines
VGA
WUXGA (1920 x 1200) at 60 fps
WUXGA+ (1680 x 1050) 60 fps
HD+ (1600 x 900) 60 fps
SXGA+ (1400 x 1050) 60 fps
FWXGA (1366 x 768) 60 fps
1360 x 768 60 fps
WXGA (1280 x 800) 60 fps
1080p 60 fps
720p 60 fps
UXGA (1600 x 1200) 60 fps
SXGA- (1280 x 960) 60 fps
SXVGA (1280 x 1024) 60/75 fps
XGA (1024 x 768) 60/70/75 fps
SVGA (800 x 600) 60/70/72/75 fps
VGA (640 x 480) 60/72/75 fps
Audio Inputs
5x 1/8″ / 3.5 mm TRS Analog
1x 1/4″ TRS Analog
Input Audio Format
Analog
Embedded Audio Input
HDMI
Output
Video Outputs
1x HDMI
1x RJ45 (HDBaseT)
Output Video Format
HDMI / RJ45
UHD 4K at 24/25/30/50/60 fps
1080p 24/25/30/50/60 fps
720p 50/60 fps
576p 50 fps
480p 60 fps
WUXGA (1920 x 1200) 60 fps
WUXGA+ (1680 x 1050) 60 fps
UXGA (1600 x 1200) 60 fps
WXGA+ (1440 x 900) 60 fps
1360 x 768 60 fps
SXGA (1280 x 1024) 60 fps
WXGA (1280 x 800) 60 fps
XGA (1024 x 768) 60 fps
SVGA (800 x 600) 60 fps
VGA (640 x 480) 60 fps
Audio Outputs
1x 1/8″ / 3.5 mm TRS
Output Audio Format
Analog
Embedded Audio Output
HDMI
RJ45
Connectivity
Other I/O
1x RJ45 LAN
1x Block 3-Pin Control, RS-232
1x Block 3-Pin RS-232
1x USB-A
HDCP Support
Yes
HDR Support
Yes, HDR10
Hardware
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1x Barrel (5 VDC ) Input
Power Consumption
Device: 5 VDC (19 W)
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90%
General
Rack Form Factor
1 RU
Dimensions
8.45 x 6.4 x 1.72″ / 21.46 x 16.3 x 4.36 cm
Weight
2.4 lb / 1.1 kg
Packaging Info
Package Weight
3.65 lb
Box Dimensions (LxWxH)
13.6 x 8.3 x 2.7″
