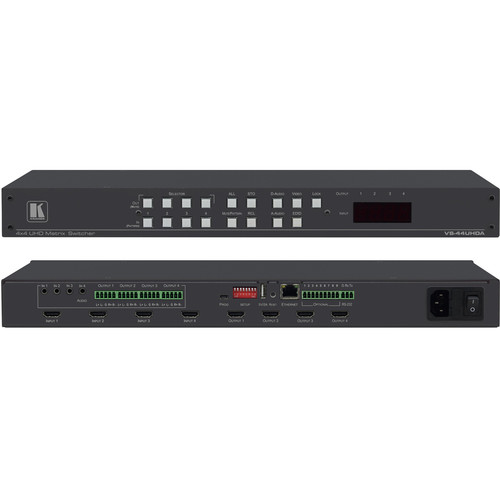

Kramer VS-44UHDA 4×4 4K60 4:2:0 HDMI Matrix Switcher with Audio Embedding/DeEmbedding (1 RU)

Add to Wishlist
  • 4×4 Signal Distribution
  • Matrix Switching
  • HDMI Resolutions up to 4K 60 Hz 4:2:0
  • Re-Clocks and Equalizes Signals
  • Four ARC Sources
  • 12×12 Audio Matrix
  • Active Source/Acceptor Detection
  • Up to 8.91 Gb/s Data Rate
  • HDCP and DVI Compliant
  • EDID Management per Input

AED15,299.00

Add to Wishlist

Route any of four HDMI inputs to up to four outputs with the 1 RU VS-44UHDA 4×4 4K60 4:2:0 HDMI Matrix Switcher from Kramer. To maintain signal integrity, the VS-44UHDA re-clocks and equalizes the signals before distributing them to the output or outputs of your choice. Unmatched audio flexibility allows an embedded digital or analog audio input to be routed to any embedded digital or analog audio output in addition to four ARC sources to produce an equivalent 12×12 audio matrix.

Up to 8.91 Gb/s data rate (2.97 Gb/s per Graphics Channel)
Up to 4K at 60 Hz (4:2:0) Resolution
Independent 12×12 audio matrix with four embedded digital/analog audio inputs, four embedded digital/analog audio outputs, and four ARC sources
Level and Balance support audio handling
Step-in over HDMI technology
HDMI, HDCP, and DVI compliant
Selectable HDCP off per input
Eight presets for quick access to common configurations
Advanced EDID management per input
Active source and acceptor detection
Automatic input selection based on priority selection or last connected input
HDMI support with Deep Color, 3D, ARC, and up to 7.1 uncompressed audio channels
Kramer’s reKlocking and Equalization Technology rebuilds the digital signal to enable longer travel distances
Embedded pattern generator with selectable patterns
Lock button prevents tampering
Kramer Protocol 3000 support
Firmware upgrades via mini USB, Ethernet, or RS-232 port
Control via RS-232 serial commands transmitted by a PC, touchscreen system or other serial controller, Ethernet LAN port, or embedded web pages via LAN
SKU: VS-44UHDA Category: Tag:
Processing
Switching Type
Pushbutton
Processing Resolution
UHD 4K at 60
Color Processing
4:2:0
4:4:4
Input
Video Inputs
4x HDMI
Audio Inputs
4x 1/8″ / 3.5 mm TRS Stereo Analog Female
Embedded Audio Input
HDMI: 7-Channel
Output
Video Outputs
4x HDMI
Output Video Format
HDMI (4:2:0)
UHD 4K at 60 fps
HDMI (4:4:4)
UHD 4K at 30 fps
Audio Outputs
4x Block 5-Pin Stereo Analog
Embedded Audio Output
HDMI: 7-Channel
Connectivity
Other I/O
1x Block 3-Pin RS-232
1x RJ45 LAN
1x Mini-USB Firmware
HDCP Support
Yes, Version 1.4
Hardware
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1x IEC C14 Input
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90%
General
Rack Form Factor
1 RU
Dimensions
19 x 7.2 x 1.75″ / 48.26 x 18.29 x 4.45 cm
Weight
4.19 lb / 1.9 kg
Packaging Info
Package Weight
5.525 lb
Box Dimensions (LxWxH)
21.6 x 11 x 4.1″
