The VSā62HA is a high-quality, 4K Ultra HD matrix switcher for HDMI and analog audio signals, that employs advanced auto switching schemes and control settings. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously.
switch

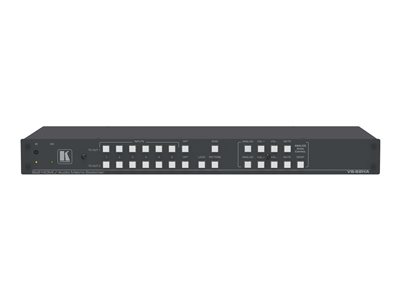

Kramer VS-62HA 6×2 4K UHD HDMI/Audio Automatic Matrix Switcher – video/audio/infrared switch – rack-mountable
Kramer VS-62HA 6×2 4K UHD HDMI/Audio Automatic Matrix Switcher – Video/audio/infrared switch – rack-mountable
AED6,799.00
Device Type | Video/audio/infrared switch |
Enclosure Type | Rack-mountable 1U |
Subtype | HDMI |
Performance | Maximum data rate: 8.91 Gbps |
Max Resolution | 3840 x 2160 @ 60 Hz |
Features | Routing, firmware upgradable, HDCP compliant, 3D Pass-Through, Kramer Equalization & re-Klocking Technology, Lip Sync pass-through, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support |
Expansion / Connectivity | Interfaces: 6 x HDMI input ¦ 4 x audio input mini-jack ¦ 2 x audio input 5 pin terminal block ¦ 2 x HDMI output ¦ 2 x audio output 5 pin terminal block ¦ 1 x management (RS-232) 3 pin terminal block ¦ 1 x management (LAN) RJ-45 ¦ 1 x USB-C ¦ 1 x remote control mini-jack ¦ 12 x remote control (IrDA) output |
Power | Power Device: Internal power supply ¦ Voltage Required: AC 120/230 V (50/60 Hz) |
Miscellaneous | Rack Mounting Kit: Included |
Dimensions & Weight | Width: 17.2 in ¦ Depth: 7.2 in ¦ Height: 1.7 in ¦ Weight: 3.64 lbs |
Environmental Parameters | Min Operating Temperature: 32 °F ¦ Max Operating Temperature: 104 °F ¦ Humidity Range Operating: 10 – 90% (non-condensing) ¦ Min Storage Temperature: -40 °F ¦ Max Storage Temperature: 158 °F |
There are no reviews yet.
