Wireless HDMI Extender Kit – 1080p @60Hz – 100 ft (30m)
KW-14 Wireless HDMI Extender Kit

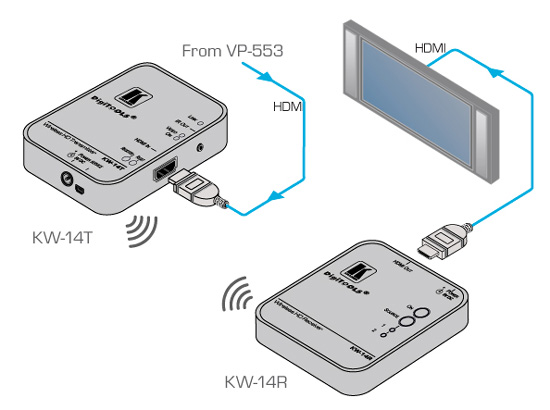

The KWā14T and KWā14R are a highādefinition, wireless, HDMI transmitter/receiver pair for indoor use. Up to four KWā14R receivers can receive from one KWā14T transmitter and up to three KWā14T transmitters can be paired with one KWā14R receiver. The KWā14T and KWā14R pair comes preāassociated.
Features and Benefits
- Max. Data Rate – 6.75Gbps (2.25Gbps per graphic channel), Deep Color up to 12ābit.
- Secure Link – Uses AESā128 bit encryption.
- Connection Capacity – Up to four receivers can receive from one transmitter simultaneously; up to three transmitters associated with one receiver at any given time.
- Transmission Range – Up to 30m (100ft) including through walls and furniture.
- Automatic Frequency Selection – Selects the most suitable frequencies to prevent RF interference.
- Auto EDID Adjustment – To allow multiāscreen support.
- IR Remote Control – Enables the OSD menu to be displayed on the output display.
- OSD (On Screen Display) – For simplified setup and configuration.
- HDCP Compliant – HDCP sources are supported only when all connected displays support HDCP.
- Zero Latency.
- Automatic Sleep Mode – After three minutes when no input or link is detected.
- CEC Support.
KW-14 Technical Specifications
INPUT: | 1 HDMI connector (KWā14T), internal antenna (KWā14R). |
OUTPUT: | 1 IR on a 3.5mm mini jack, internal antenna (KWā14T), 1 HDMI connector (KWā14R). |
VIDEO RESOLUTION: | Up to 1080p @60Hz; 8, 10, or 12ābit color depth and VESA up to 1920 x 1080 @60Hz. |
FORMATS: | RGB and YCbCr digital video. |
MAXIMUM DATA RATE: | 6.75Gbps (2.25Gbps per channel). |
MAXIMUM PIXEL CLOCK: | 148.5MHz. |
AUDIO FORMATS: | PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2āchannel, DTS Digital Surround 5.1, DTS 96/24. |
AUDIO RATE: | Digital audio from the HDMI input up to 6Mbps. |
RF COMMUNICATION FREQUENCY: | 5.19 to 5.795GHz (In Japan operation is limited to the lower bands 5.15 to 5.25GHz, in Israel operation is limited to 5.15 to 5.35GHz). |
TRANSMISSION POWER: | <18dBm conducted (KWā14T), <12dBm per channel conducted (KWā14R). |
RECEIVING SENSITIVITY: | ā75dBm (KWā14T), ā65dBm (KWā14R). |
SYSTEM LATENCY: | <1ms. |
STANDARDS: | HDMI with Deep Color, x.v.Colorā¢, 3D, CEC; HDCP 2.0āworks with sources that support HDCP repeater mode, DVI 1.0. |
RF COMMUNICATION FREQUENCY: | 5.19 to 5.795GHz (In Japan and Israel operation is limited to the lower bands; 5.15 to 5.25GHz). |
UNOBSTRUCTED TRANSMISSION RANGE: | 30m (100ft) (KWā14T), 30m (100ft) (KWā14R). |
POWER CONSUMPTION: | 5V DC 1A (KWā14T), 5V DC 1.2A (KWā14R). |
OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
STORAGE TEMPERATURE: | ā40° to +70°C (ā40° to 158°F). |
HUMIDITY: | 10% to 90%, RHL nonācondensing. |
COOLING: | Convection, vented. |
ENCLOSURE TYPE: | Plastic. |
DIMENSIONS: | 8.0cm x 10.2cm x 3.6cm (3.15″ x 4.02″ x 1.42″) W, D, H (KWā14T), 9.5cm x 9.5cm x 3.4cm (3.74″ x 3.747″ x 1.34″) W, D, H (KWā14R). |
WEIGHT: | 0.1 kg (0.22lbs) approx. each. |
SHIPPING WEIGHT: | 0.45kg (1.0lbs) approx. |
ENVIRONMENTAL REGULATORY COMPLIANCE: | Complies with appropriate requirements of RoHS and WEEE. |
VIBRATION: | ISTA 1A in carton (International Safe Transit Association). |
COMPLIANCE STANDARDS: | CE, cāUL, UL. |
EMMISSION STANDARDS: | CE, Cātick, FCC Class B, ICES, VCCI, KC. |
INCLUDED ACCESSORIES: | Power supply 5V, 2 HDMI cables 0.9m (2.95ft) PN 2518ā0101003, 1 IR Emitter cable PN 3300ā500135. |
