Wireless HDMI Transmitter/Receiver – 1080p @60Hz – 39 ft (12m)
KW-11 Wireless HDMI Kit

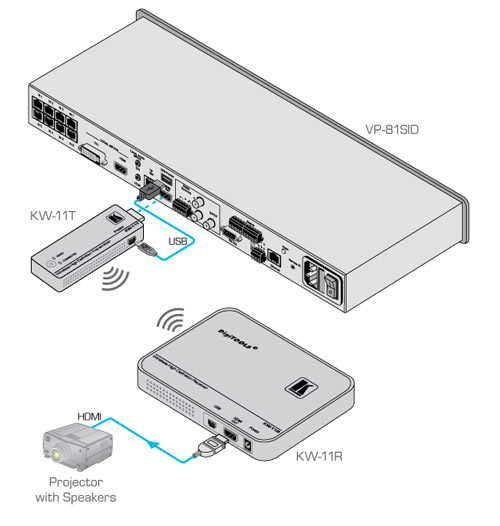

The KW-11T and KW-11R is a high-definition, wireless, HDMI transmitter and receiver combination for indoor use over short range distances. The KW-11T converts an HDMI signal into a wireless signal that it transmits to the KW-11R. The KW-11R converts the wireless signal back into HDMI. The KW-11-MD is certified for medical applications.
Features and Benefits
- Max. Resolution – Uncompressed video resolutions up to 1080p @60Hz.
- Standards Compliance
- Robust MIMO 5GHz Technology.
- Very Secure AV Link – Through AESā128 encryption
- Zero Latency.
- HDMI Support – EDID, CEC and HDCP.
- Transmission Range – Up to 12m (39ft).
- No Line-of-Sight Requirement.
- Important – KWā11 is a wireless device and is subject to wireless certification restrictions. It is currently certified for use in various countries including the US and EU. Consult your local sales office for details regarding certification in your country.
- Size – Compact Size – Part of the Kramer TOOLS family of compact high-quality and cost-effective solutions.
Technical Specifications
Inputs |
1 HDMI connector (KWā11T), internal antenna (KWā11R). |
Outputs |
Internal antenna (KWā11T), 1 HDMI on an HDMI connector(KWā11R). |
Video Resolution |
Up to SXGA, 1080p. |
Audio Formats |
PCM, DTA, Dolby Digital. |
Transmission Power |
<18dBm (KWā11T), <12dBm (KWā11R). |
Receiving Sensitivity |
ā75dBm (KWā11T), ā65dBm (KWā11R). |
System Latency |
<1ms |
RF Communication Frequency |
5.19 to 5.9GHz (In Japan and Israel operation is limited to the lower bands: 5.15ā5.25GHz). |
Unobstructed Transmission Range |
39ft (12m). |
Power Consumption |
5V DC 900mA (KWā11T), 1.6A (KWā11R). |
Operating Temperature |
0° to +40°C (32° to 104°F). |
Storage Temperature |
ā40° to +70°C (ā40° to 158°F). |
Humidity |
10% to 90%, RHL nonācondensing. |
Dimensions |
3.9″ x 1.14″ x 0.6″ (9.8cm x 2.9cm x 1.5cm) W, D, H (KWā11T) 5.8″ x 3.8″ x 0.7″ (14.8cm x 9.7cm x 1.8cm) W, D, H (KWā11R). |
Weight |
1.1lbs (0.48kg) approx. each. |
Package Includes |
5V DC USB power supply, 5V DC power supply, HDMI cable, receiver stand, miniāUSB to USB power cable, HDMI extension cable. |
