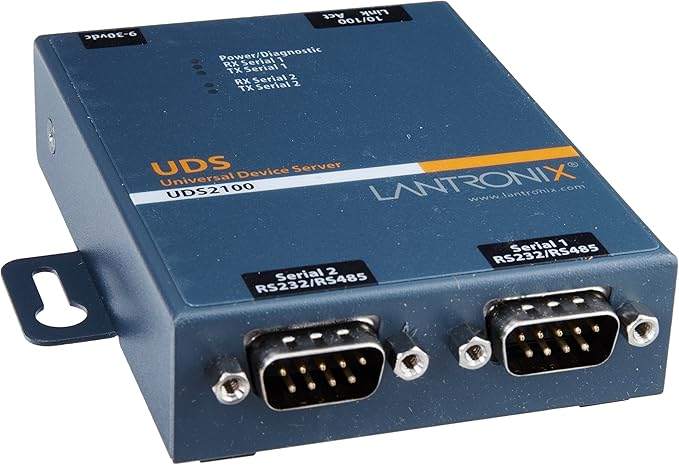

Lantronix Device Server UDS 2100 – 2 Port Secure RS232 / RS422/ RS485 Serial to IP Ethernet Gateway – device server


Lantronix Device Server EDS2100 2 Port Secure RS232/422/485 Serial to IP Ethernet Gateway – Device server – 2 ports – 100Mb LAN, RS-232, RS-422, RS-485

د.إ1,499.00

The EDS2100 is the unique, hybrid Ethernet terminal/multiport device server which allows remote access to and management of virtually any IT/networking equipment or edge device such as medical equipment, POS terminals or security equipment. Evolution OS, With AES, SSH and SSL built in, provides ‘data-center grade’ protection so each networked device carries the same level of security as corporate data center equipment and provides robust defenses to hostile Internet attacks. With no special software required, setup is a breeze with the included Windows-based DeviceInstaller. The EDS can also be set up locally via a serial port, or remotely over a network using Telnet, SSH, or a web browser (HTTP and HTTPS) or SNMP. The EDS also includes Lantronix’ patent pending VIP (virtual IP) Access technology, which allows for seamless integration with the ManageLinx remote services enablement platform.

SKU: Lantronix Device Server UDS 2100 Category:
Specifications
General
Device Type
Device server
Width
2.8 in
Depth
3.7 in
Height
0.4 in
Weight
14.11 oz
Processor / Memory / Storage
RAM
8 MB SDRAM
Flash Memory
8 MB
Networking
Form Factor
External
Ports Qty
2
Connectivity Technology
Wired
Data Transfer Rate
921 Kbps
Data Link Protocol
Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network / Transport Protocol
TCP/IP, UDP/IP, ICMP/IP, LPR/LPD, ARP, SMTP, FTP, BOOTP, DHCP, DNS
Remote Management Protocol
SNMP 2, Telnet, HTTP, HTTPS, FTP, TFTP, CLI
Features
BOOTP support, ARP support, Syslog support
Encryption Algorithm
AES, SSL 3.0
Authentication Method
Secure Shell v.2 (SSH2)
Expansion / Connectivity
Interfaces
2 x RS-232/422/485 – DB-9 Ā¦ 1 x 100Base-TX – RJ-45
Miscellaneous
Compliant Standards
FCC Class A certified, VCCI, C-Tick, EN55022, ICES-003, EN55024, EN55022 Class A, CISPR 22, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, EN 61000-4-5, EN 61000-4-11, AES, RoHS, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V
Power Consumption Operational
1.8 Watt
Software / System Requirements
Software Included
Lantronix Com Port Redirector
OS Required
Microsoft Windows 98/ME/NT/2000/XP, Microsoft Windows Vista
Manufacturer Warranty
Service & Support
Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature
-40 Ā°F
Max Operating Temperature
185 Ā°F
Humidity Range Operating
5 – 95%
