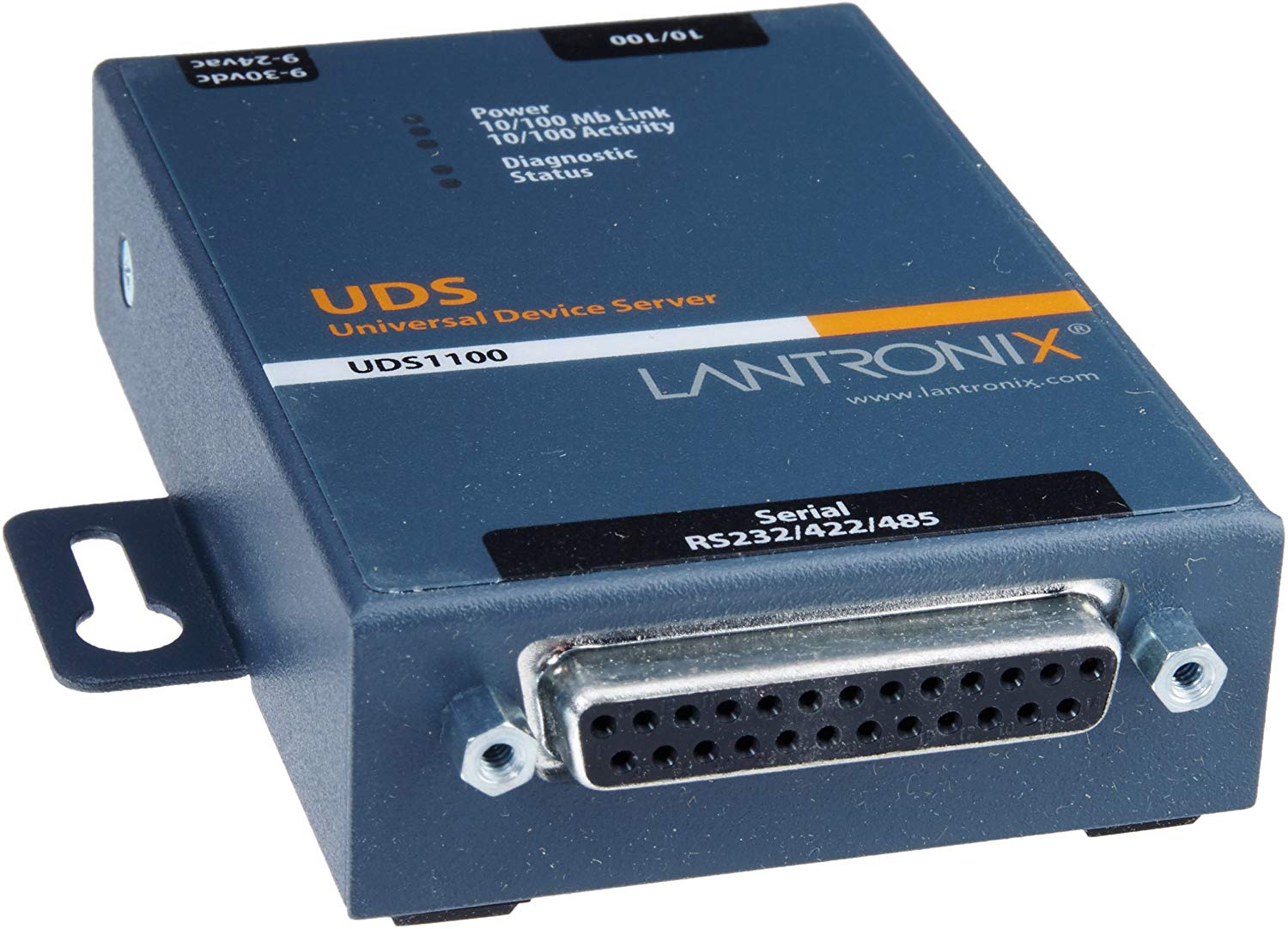

Lantronix Device Server UDS1100 One Port Serial (RS232/ RS422/ RS485) to IP Ethernet, UL864 – device server UD1100001-01

Add to Wishlist

AED999.00

Add to Wishlist

UD1100001-01 Device Servr 1PRT 10/100 RS232/422/485

Overview

With the UDS1100, virtually any piece of equipment with a serial port can be added to an Ethernet network in a matter of minutes! This single-port device server is a quick, simple and inexpensive way to bring the advantages of remote management to equipment not currently connected to a network. This product is a US domestic power 120 VAC power supply.

  • Network virtually any device in minutes
  • Access, monitor and control equipment over Ethernet
  • Replace dedicated PCs and/or modem lines with fast and reliable Ethernet networking
  • Configure quickly and easily via HTTP, DHCP, Telnet, serial or Lantronix DeviceInstaller utility
  • Supports RS232, RS422 and RS485 communications
  • Environmentally-friendly RoHS and WEEE compliant
  • Small enough to place almost anywhere
  • Features TruPort Com port control technology (also see UDS2100)
  • Power over Ethernet (PoE) model available
  • Meets the newest UL 864 9th Edition standards
SKU: UD1100001-01 Category: Tags: , ,

Specifications

General
Device Type Device server
Width 2.5 in
Depth 3.5 in
Height 0.9 in
Weight 7.05 oz
Localization United States
Processor / Memory / Storage
Processors Installed 1 x 48 MHz
Max Supported Qty 1
RAM 256 KB SRAM
Flash Memory 2 MB
Networking
Form Factor External
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP
Remote Management Protocol SNMP, Telnet, HTTP
Status Indicators Power, status, link/activity
Features Flow control, DHCP support, ARP support, half duplex mode, full duplex mode
Expansion / Connectivity
Interfaces 1 x serial 1 x 100Base-TX – RJ-45
Miscellaneous
Compliant Standards FCC Class A certified, CSA, TUV, VCCI, C-Tick, CISPR 22 Class A, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, ICES-003 Class A, EN 61000-4-5, FCC, EN 61000-4-11, RoHS, EN 61000-4-8
Power
Voltage Required AC 120 V
Software / System Requirements
Software Included Drivers & Utilities
OS Required Microsoft Windows 98/ME/NT/2000/XP
Manufacturer Warranty
Service & Support Limited warranty – 1 year
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 122 °F
General
Depth 3.5 in
Device Type Device server
Height 0.9 in
Localization United States
Weight 7.05 oz
Width 2.5 in
Environmental Parameters
Max Operating Temperature 122 °F
Min Operating Temperature 41 °F
Expansion / Connectivity
Interfaces 1 x serial ¦ 1 x 100Base-TX – RJ-45
Manufacturer Warranty
Service & Support Limited warranty – 1 year
Miscellaneous
Compliant Standards FCC Class A certified, CSA, TUV, VCCI, C-Tick, CISPR 22 Class A, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, ICES-003 Class A, EN 61000-4-5, FCC, EN 61000-4-11, RoHS, EN 61000-4-8
Networking
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Features Flow control, DHCP support, ARP support, half duplex mode, full duplex mode
Form Factor External
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP
Remote Management Protocol SNMP, Telnet, HTTP
Status Indicators Power, status, link/activity
Power
Voltage Required AC 120 V
Processor / Memory / Storage
Flash Memory 2 MB
Max Supported Qty 1
Processors Installed 1 x 48 MHz
RAM 256 KB SRAM
Software / System Requirements
OS Required Microsoft Windows 98/ME/NT/2000/XP
Software Included Drivers & Utilities
