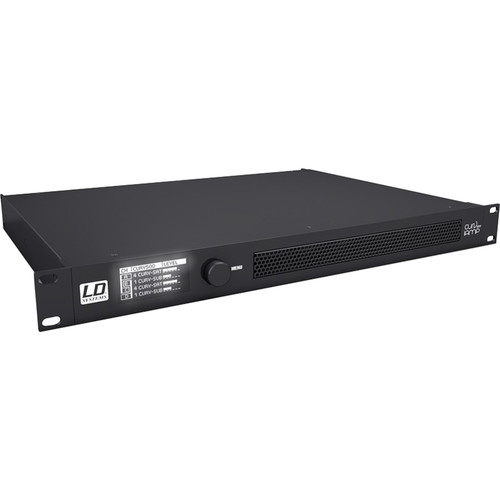

LD Systems CURV 500 I AMP 4-Channel Installation Amplifier

Add to Wishlist
Key Features
  • Designed for CURV 500 Installations
  • Four Channels with DSP Control
  • 240W Class-D Amplification per Channel
  • High-Contrast OLED Display
  • Easy Operation via Single Push Encoder
  • 10-Band Parametric EQ per Channel
  • XLR and Terminal Block Inputs
  • speakON and Terminal Block Outputs
  • Low-Profile 1 RU Rackmount Chassis
  • High-Efficiency Switch-Mode Power Supply

5,499.00 د.إ

Add to Wishlist

The LD Systems CURV 500 I AMP is a 4-channel amplifier designed specifically for CURV 500 installations. Each of its four channels provides up to 240W RMS of Class-D amplification and can drive up to six CURV 500 satellites or one CURV 500 iSUB subwoofer.

The low-profile CURV 500 I AMP weighs only 15 pounds and occupies just 1 RU of rack space. The front panel features a high-contrast OLED screen and a single push encoder for easy access to important functions such as delay and 10-band EQ. The CURV 500 I AMP’s rear panel sports balanced XLR and terminal block inputs and speakON-compatible and terminal block outputs for straightforward integration with mixers and speakers.

Thanks to the high-efficiency switch-mode power supply and the temperature-controlled low-noise fan, the CURV 500 I AMP offers reliable operation no matter where you use it.

  • Four channels with DSP control
  • Purpose-designed for CURV 500 installations
  • Drives up to six CURV 500 satellites or one CURV 500 iSUB subwoofer per channel
  • Delivers 240W RMS at 4 ohms with less than 0.01% THD
  • 10 Hz to 22 kHz frequency response
  • Low-profile 1 RU rackmount chassis
  • High-contrast OLED display
  • Simple operation via single push encoder
  • Presets for various satellite and subwoofer configurations
  • Delay and 10-band parametric EQ per channel
  • Soft-start circuit, DC, overcurrent, thermal, and short-circuit protection
  • Temperature-controlled low-noise fan
  • High-efficiency, switch-mode power supply
  • Balanced XLR and terminal block inputs
  • Terminal block and speakON-compatible outputs
  • Lightweight at only 15 pounds
SKU: LDS-CURV500IAMP Category: Tag:
Key Specs
Number of Channels
4
Amplifier Power Rating
4 Ohms:
4x 240 W RMS per Channel (1 kHz)
8 Ohms:
4x 120 W RMS per Channel (1 kHz)
16 Ohms:
4x 60 W RMS per Channel (1 kHz)
70 V:
2x 480 W RMS Bridged (1 kHz)
Amplifier Class
Class-D
DSP
Yes
Analog Audio I/O
4x XLR 3-Pin Female Balanced Line Input
4x Block 3-Pin Male Balanced Line Input
4x speakON NL4 Male Speaker Output
4x Block 2-Pin Male Speaker Output
Digital I/O
No
Rackmount Size
1 RU (with Included Hardware)
Amplifier Power Rating
4 Ohms:
4x 240 W RMS per Channel (1 kHz)
8 Ohms:
4x 120 W RMS per Channel (1 kHz)
16 Ohms:
4x 60 W RMS per Channel (1 kHz)
70 V:
2x 480 W RMS Bridged (1 kHz)
Amplifier Class
Class-D
Performance
Protections
DC Fault, Output Limiter, Overcurrent, Short Circuit, Thermal
Frequency Response
10 Hz to 22 kHz
THD
4 Ohms:
< 0.01% (1 kHz, at Rated Power)
Signal Processing
Sample Rate
48 kHz
AD/DA Conversion
24-Bit
DSP
Yes
Audio Delay
Adjustable Up to 166 ms per Channel
Crossover
Yes
EQ
10-Band Parametric EQ per Channel
Limiting
Yes
Connectivity
Analog Audio I/O
4x XLR 3-Pin Female Balanced Line Input
4x Block 3-Pin Male Balanced Line Input
4x speakON NL4 Male Speaker Output
4x Block 2-Pin Male Speaker Output
Digital I/O
No
USB I/O
1x USB-B (Remote, Service)
Power
AC Input Power
Universal:
110 to 120 VAC, 60 Hz (T 10 A L 250 V)
220 to 240 VAC, 50 Hz (T 5 A L 250 V)
AC Power Connector
1x IEC / NEMA 5-15
Power Consumption
1100 W (Full Power)
Physical
Display & Indicators
Front Panel:
1x OLED
Rackmount Size
1 RU (with Included Hardware)
Cooling
1x Fan
Operating Temperature
32 to 67°F / 0 to 35°C
Dimensions
19.0 x 1.7 x 16.5″ / 48.2 x 4.4 x 42.0 cm
Weight
15 lb / 6.8 kg
