Leader SB-4027 4K/HD Up/Down-Converter Board (up to 12G-SDI)

Add to Wishlist
Key Features
  • 12G/3G/HD-SDI Up/Down Conversion
  • ITU-R BT.2020/709 Colorimetry Conversion
  • HDR/SDR Dynamic Range Conversion
  • Web Browser Control
  • Mounts on BE-4028 Board Enclosure

AED86,499.00

Add to Wishlist

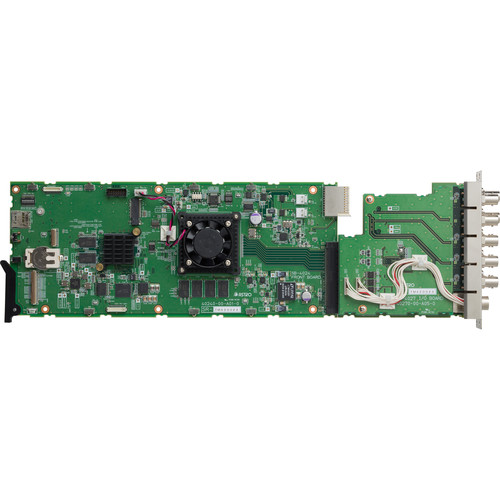

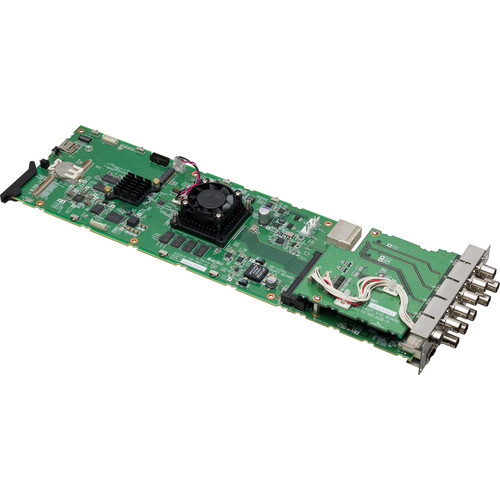

Enhance your 4K HDR production workflow with the SB-4027 4K/HD Up/Down-Converter Board from Leader. Designed for resolution, format, and color gamut conversion, this converter board is equipped with one BNC input & one BNC output supporting up to 12G-SDI Type 1 2SI, three BNC inputs & three BNC outputs supporting 3G-SDI Level A/B SQD/2SI & 1.5G-SDI SQD/2SI, and one BNC input & one BNC output supporting 1.5G-SDI & 3G-SDI Level A/B. Also featured are a 12-pin Hirose GPIO and an RJ45 Ethernet port. The converter board can be mounted either on a Sony NXL-FR316 signal processing unit or on a Leader BE-4028 board enclosure.

4K/HD Up/Down Conversion
  • Motion detection, IP conversion
  • Enhance function
ITU-R BT.2020 / ITU-R BT.709 Colorimetry Conversion
  • Simultaneous use of 3D LUT and Linear Matrix
  • Irregular interval grid format 32 x 32 x 32 grids
  • ITU-R BT.2407 Annex 2
HDR/SDR Dynamic Range Conversion
  • Gain, Offset, Gamma, and Knee adjustment
  • Various types of log supported (HLG, PQ, S-Log, Canon Log, V-Log, etc)
  • 1D LUT file import
Other Features
  • 3G-SDI Level A/B conversion
  • Low-latency bypass mode
  • 4K 2SI/SQD conversion
  • Input/output audio channel remapping, 5.1 channels to stereo downmix
Applications for Controlling Multiple Boards
Multiple boards can be monitored and controlled as a system via optional applications.
Control Software
The board can be controlled via a web browser, with access to settings and 1D & 3D LUT import functionality.
WonderLook Pro Software
The SB-4024-A can be also controlled via the WonderLook Pro software, which allows for color correction and LUT creation (corporate software license required).
SKU: SB-4027 Category: Tag:
Inputs / Outputs
Video Inputs
1x BNC (12G-SDI)
4x BNC (3G-SDI) Female
Video Outputs
1x BNC (12G-SDI) Female
4x BNC (3G-SDI) Female
Other I/O
1x RJ45 LAN
1x Hirose 12-Pin GPI Input/Output
Format Support
Input Video Format
SDI (10-Bit 4:2:2)
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
1080p at 23.98/24/25/29.97/30 fps
1080PsF at 23.98/24/25/29.97/30 fps
Output Video Format
SDI (10-Bit 4:2:2)
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
Embedded Audio
SDI Input: 5-Channel
Standards
Video Standard Compliance
SMPTE 292M/424M-B/ST-2082
ITU -R BT.709/BT.2020
HDR Support
Not Specified by Manufacturer
Power
Power Consumption
12 VDC (22 W)
Environmental
Operating Temperature
37 to 72°F / 5 to 40°C
Operating Humidity
20 to 80% ()
General
Dimensions
10.86 x 4.51″ / 275.8 x 114.5 mm
Weight
1.1 lb / 0.5 kg
