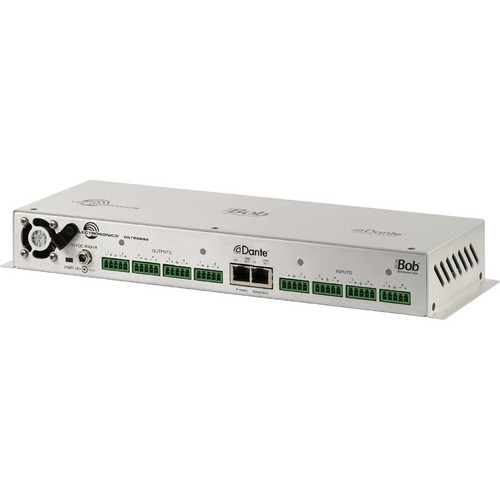

Lectrosonics DNTBOB 88 – Dante Network Audio I/O Interface

Add to Wishlist
Key Features
  • 8 Input/8 Output
  • Balanced Line Levels
  • 8 Dante Network Inputs and Outputs
  • Uses Standard Ethernet Hardware
  • Gigabit Compatible
  • AVB Ready

9,999.00 د.إ

Add to Wishlist

Lectrosonics DNTBOB88Ā Overview

TheĀ DNTBOB 88Ā fromĀ LectrasonicsĀ is a high quality, general purpose interface for transmitting and receiving line level analog audio signals via a Dante network. Analog inputs are converted to digital and appear on the network as transmit channels.

Audio on the analog outputs is available from other source that input to the transmit channels on the network. When connected to a network, each break out box will appear as a separate device in the Dante Controller software interface.

  • Eight balanced line level analog inputs
  • Eight balanced line level analog outputs
  • Dante primary and secondary ports
  • Eight Dante network outputs
  • Eight Dante network inputs
  • Uses standard Ethernet hardware
  • Gigabit compatible
  • AVB (Audio Video Bridging) ready
SKU: DNTBOB88 Category: Tag:
Sample Rates
48 kHz
Network Interface
Dante
Analog Inputs
Type: Floating balanced
Level: 0.0 dBu, 20 dB headroom
Impedance: 15 kĪ© (differential), 3.75 kĪ© (common)
Connector: 4 x 5-pin Phoenix
Analog Outputs
Type: Floating balanced
Level: 0.0 dBu, 20 dB headroom
Impedance: 50 kĪ©
Connector: 4 x 5-pin Phoenix
Latency
Analog In to Dante Network: 0.721 ms
Dante Network to Analog Out: Network latency + 0.521 ms
THD + N
0.02%, analog in to analog out
Frequency Response
20 Hz to 20 kHz, +/-0.1 dB
Gain
0.0 dB, +/-1.0 dB (input to output)
Operating temperature
-36 to +90Ā°F (-20 to +50Ā°C)
Power Requirements
15 VDC, 800 mA
Dimensions
13.4 x 4.6 x 1.7″ (339.0 x 117.0 x 44.0 mm)
Weight
1.4 lb (0.6 kg)
Packaging Info
Package Weight
3.9 lb
Box Dimensions (LxWxH)
14 x 10.6 x 6.2″
