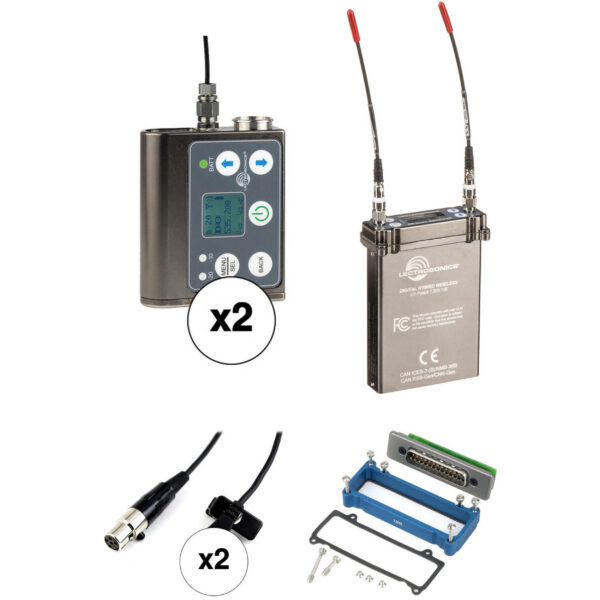

Lectrosonics SRc/SMWB Dual Transmitter and Receiver with Unislot Camera Mount ENG Kit (B1: 537.600 to 614.375 MHz)


30,399.00 د.إ

Key Features
  • 2 x SMWB Wideband Beltpack Transmitter
  • 2 x M152/5P Omnidirectional Lavalier Mic
  • SRc Dual-Channel Slot-Mount ENG Receiver
  • SRSUPER Bottom-Plate Adapter
  • IR Port for Fast Setup
  • Selectable Output Power
  • Lightweight, Corrosion-Resistant Housing
  • Can be Used as a Recorder

TheĀ SRc/SMWB Dual Transmitter and Receiver with Unislot Camera Mount ENG KitĀ fromĀ LectrosonicsĀ includes two Lectrosonics SMWB beltpack transmitters, two M152/5P omnidirectional lavalier microphones, an SRc dual-channel slot-mount ENG receiver, and an SRSUPER bottom-plate adapter. It provides Digital Hybrid wireless technology, combining 24-bit digital-audio processing with an analog FM radio line, and can be used as a recording device, capturing audio onto microSDHC cards, and for ENG (Electronic News Gathering), EFP (Electronic Field Productions), and interviews for broadcast TV applications.

The transmitter offers selectable outputs to bolster its operating range from 25, 40, and 100mW. Input-gain adjustments are possible in 1 dB increments for a total range of 44 dB. Low-pass filters can be switched to roll off 30, 50, 70, 120, and 150 Hz to mitigate low-end disturbances. Furthermore, the omnidirectional, electret lavaliers terminate into a TA5M 5-pin input connector. Their frequency response is from 20 Hz to 20 kHz with a slight rise around 10 kHz, resulting in a brighter “airier” response.

The SRc dual-channel slot-mount ENG receiver consist of two separate receivers built into a single, ultra-compact housing with adapters for video-camera-receiver slots. Each receiver is equipped with Digital Hybrid wireless technology that provides compandor-free audio and is compatible with other wireless systems.

A built-in spectrum analyzer scans across the tuning range of the receiver and displays a histogram of RF activity across the band. Areas of RF activity are easily recognizable. The two internal receivers can be operated separately and both have switching, antenna-combining diversity, or in tandem with ratio-diversity reception. Finally, the SRSUPER is a bottom-plate adapter that has a DB25 connector for SR receivers. It can be used in cameras with a SuperSlot docking system and makes internal connections with a unislot connector.

Note:

Please note: 608.000 to 614.000 MHz are excluded

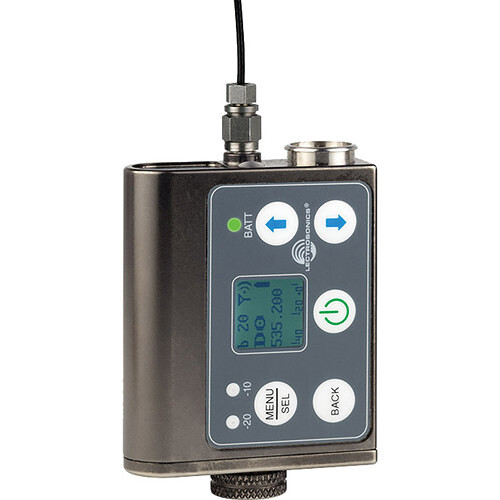

Lectrosonics SMWB Wideband Beltpack Transmitter/Recorder (B1: 537 to 607 MHz)

TheĀ Lectrosonics SMWBĀ is a wireless beltpack transmitter that can also act as a recording device, capturing audio onto microSDHC cards. Paired with a lavalier or dynamic microphone, the transmitter is suitable for ENG (Electronic News Gathering), EFP (Electronic Field Productions), interviews for broadcast TV, and more. It provides Digital Hybrid Wireless technology, combining 24-bit digital-audio processing with an analog FM radio link to give you the benefits of both worlds, such as fewer dropouts and audio artifacts while maintaining a robust range of operation. The transmitter is housed in a machined aluminum case, lending the unit a rugged and dependable shell. Its water-resistant control panel adds to its usability.

Operating in the B1: 537 to 607 MHz band, the transmitter offers selectable outputs to bolster its operating range, specifically among 25, 40, and 100mW. At lower values, the transmitter’s battery life will last longer; at higher values, the operating range is increased, though at the expense of battery life. Lightweight at 2.7 oz, the transmitter boasts settings which make it compatible with dynamic microphones, electret lavaliers, and even line-level sources—so long as they can plug into the TA5M 5-pin input connector.

Input gain adjustment is possible in 1 dB increments for a total range of 44 dB. You’ll also note the low-pass filters, which can be switched to roll off at 30, 50, 70, 120, or 150 Hz to mitigate low-end disturbances. This input section also boasts servo-bias input circuitry proprietary to Lectrosonics, as well as an analog limiter controlled with DSP that, sitting ahead of the mic preamp itself, protects the audio path from overload. With its dual-release envelope, it maintains acoustic transparency, even though it can achieve over 30 dB of gain reduction.

The SMWB utilizes DSP that renders it suitable for use with all Lectrosonics Digital Hybrid receivers, though it is also backward compatible for use with 100 and 200 series transmitters, IFB receivers, and various analog receivers from third-party manufactures. The unit is powered by one AA battery, making use of switching power supplies to offer consistent voltages to its internal circuitry throughout its battery life. One AA battery is included.

Expanding the SMWB’s functionality is its built-in recording capability, for use when transmission is simply not possible due to the conditions of the environment. The recorder operates at 24-bit/44.1 kHz, recording .WAV files to microSDHC cards. As a transmitter, the SMWB supplies an audio frequency range of 35 Hz to 20 kHz, though during recording, that lower value extends down to 20 Hz. You cannot use the transmitter and the recorder simultaneously, but it’s nice to have the option to select between the two. The transmitter includes a flexible steel-cable antenna.

Note:

Please note: 608.000 to 614.000 MHz are excluded

Key Features at a Glance

  • Selectable output power to maximize battery life or operating range
  • Lightweight, corrosion-resistant housing
  • Water-resistant seals for use in damp environments
  • LCD interface with lockout option
  • Programmable compatibility modes for use with a wide variety of different receivers
  • Servo-Bias input circuitry
  • IR (infrared) port for fast setup
  • Covers three standard frequency blocks
  • Update firmware in the field via MicroSD card reader
  • Can also be used as a recorder on internal microSDHC memory card

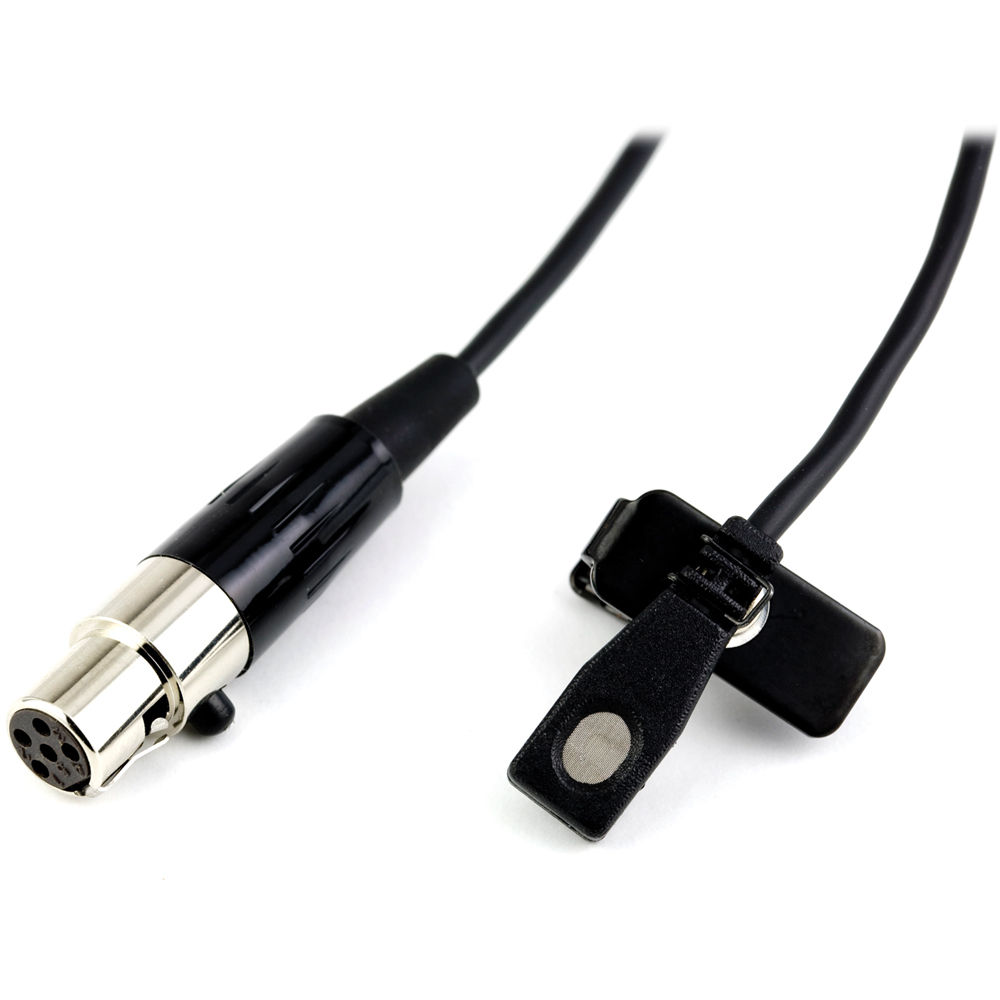

Lectrosonics M152/5P Omnidirectional Lavalier Microphone with TA5F Connector (Black)

The blackĀ Lectrosonics M152/5PĀ is an omnidirectional lavalier microphone, featuring a wide frequency response that accentuates the presence and character of the human voice. The mic offers a 3.3′ cable, terminating in a TA5F connector designed to work with any Lectrosonics transmitter or recorder with a TA5M input.

The M152’s frequency response is measured at 20 Hz to 20 kHz with a slight rise around 10 kHz, resulting in a brighter, more “airy” response. A low-frequency roll-off around 50 Hz reduces noise caused by proximity effect and ambience. The omnidirectional polar pattern provides a generous response at both the direct and off-axis sections of the microphone capsule, helping to ensure consistent levels.

Locking TA5F Connector

Compatible Wireless Transmitters and Recorders

  • Lectrosonics:Ā Works with current and legacy Lectrosonics transmitter and recorder models equipped with a TA5M connector, including the following: SMWB, SMDWB, LMb, LT, MTCR, SPDR, SMV, SMQV, and DBu (TA5M version).
  • The M152/5P can also be used with third-party transmitters that are equipped to supply 1.3 to 10 VDC through a TA5M connector with a Lectrosonics servo-bias wiring configuration.

A Clear and Reliable Omnidirectional Lav Mic

Wide Frequency Response with Presence Boost

A wide 20 Hz to 20 kHz frequency range with a light low-end roll-off filter below 50 Hz along with a 2 to 3 dB presence boost in the 10 to 12 kHz range allows the M152 to provide crisp and accurate reproduction of speech and vocals.

Omnidirectional Polar Pattern

The forgiving omnidirectional polar pattern picks up sound from all around the mic and provides a consistent frequency response, even for off-axis sound. This helps to supply clear, intelligible speech, even when the talent isn’t speaking directly toward the microphone.

Headroom for Standard Speech Applications

The mic is designed to handle speech at levels up to 114 dB without distortion, enough headroom for most broadcast and presentation applications.

Tough-Build Quality

The M152 has been designed to minimize mechanical noise and survive the rigors of on-set wear and tear to deliver clear, dependable audio.

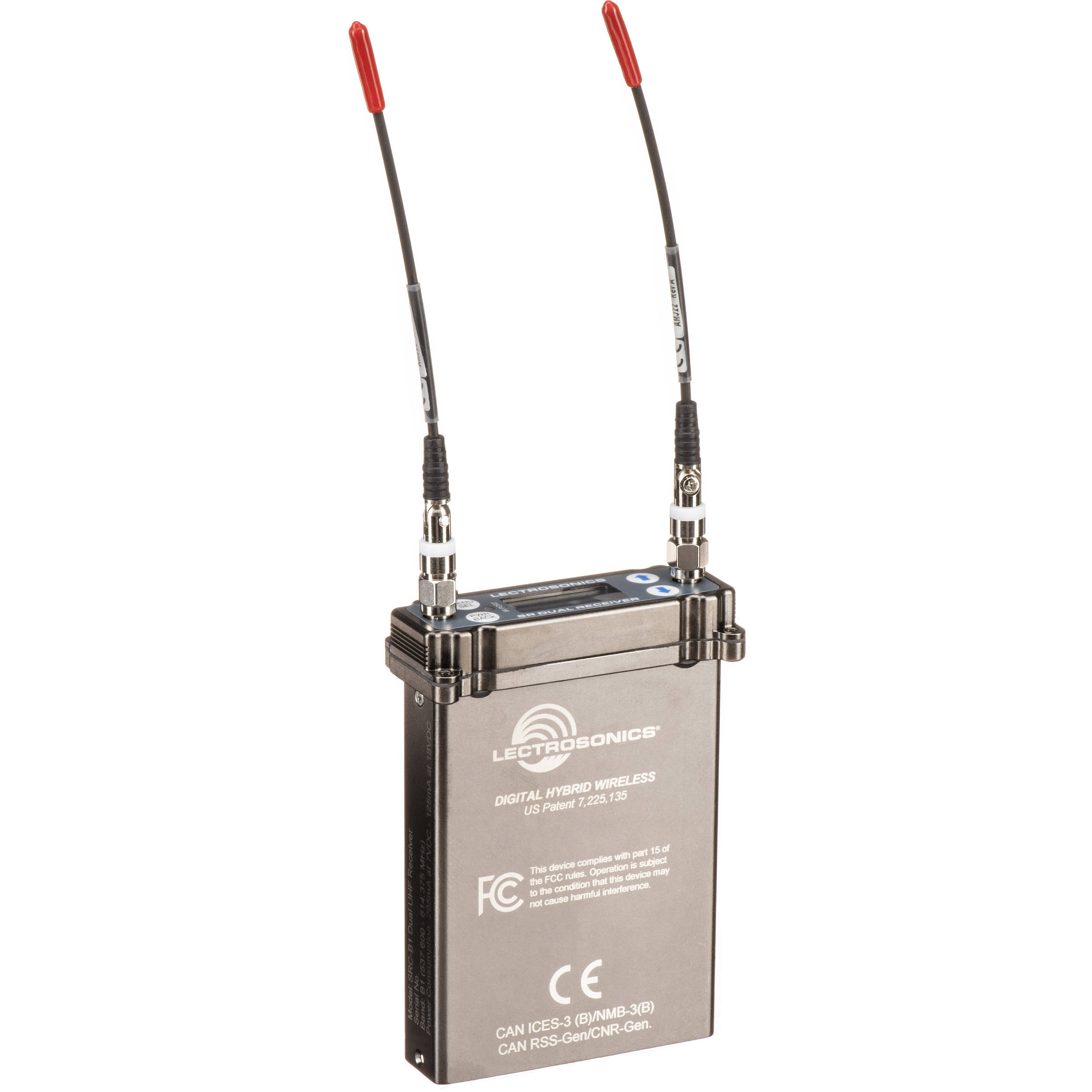

Lectrosonics SRc Dual-Channel Slot-Mount ENG Receiver (B1: 537.600 to 614.375 MHz)

TheĀ SRc Dual-Channel Slot-Mount ENG ReceiverĀ fromĀ LectrosonicsĀ consist of two separate receivers built into a single, ultra-compact housing with adapters for video-camera-receiver slots and for stand-alone use. They can be used when paired with a transmitter & microphone (sold separately) in various environments for ENG (Electronic News Gathering), EFP (Electronic Field Productions) and other audio applications.

Each receiver features Digital Hybrid Wireless technology that provides compandor-free audio quality and compatibility with other wireless systems. The RF performance is stable over a wide temperature range, making the receiver perfectly suited in rough environmental conditions.

The front panel has a menu-driven LCD interface and four membrane switches which are used to view and alter settings. In addition, the LCD window displays the pilot-tone indicator, diversity activity, RF level, audio level, and transmitter battery status for both receivers.

Furthermore, a built-in spectrum analyzer scans across the tuning range of the receiver and displays a histogram of RF activity across the band. Areas of RF activity are easily recognizable. The two internal receivers can be operated separately and both have switching, antenna-combining diversity, or in tandem with ratio-diversity reception.

Finally, a variety of output adapters and mounting options are available for camera-slot operation. The receivers are powered from an external 7 to 18 VDC source.

Fits camera “slots,” Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters
Dual-receiver design for two channels with phase switched diversity or single channel with ratio diversity operation
Digital Hybrid Wireless with compatibility modes for use with other transmitters
Tracking front-end filters for high performance in tough RF environments
LCD with RF spectrum scanning
SmartSquelch DSP-controlled, noise-based filtering and squelch
DSP-based pilot tone for squelch control
IR sync port for quick transmitter setup (LMb, LT, HHa, HMa, & SSM)
SmartTune operation for quick and confident frequency selection

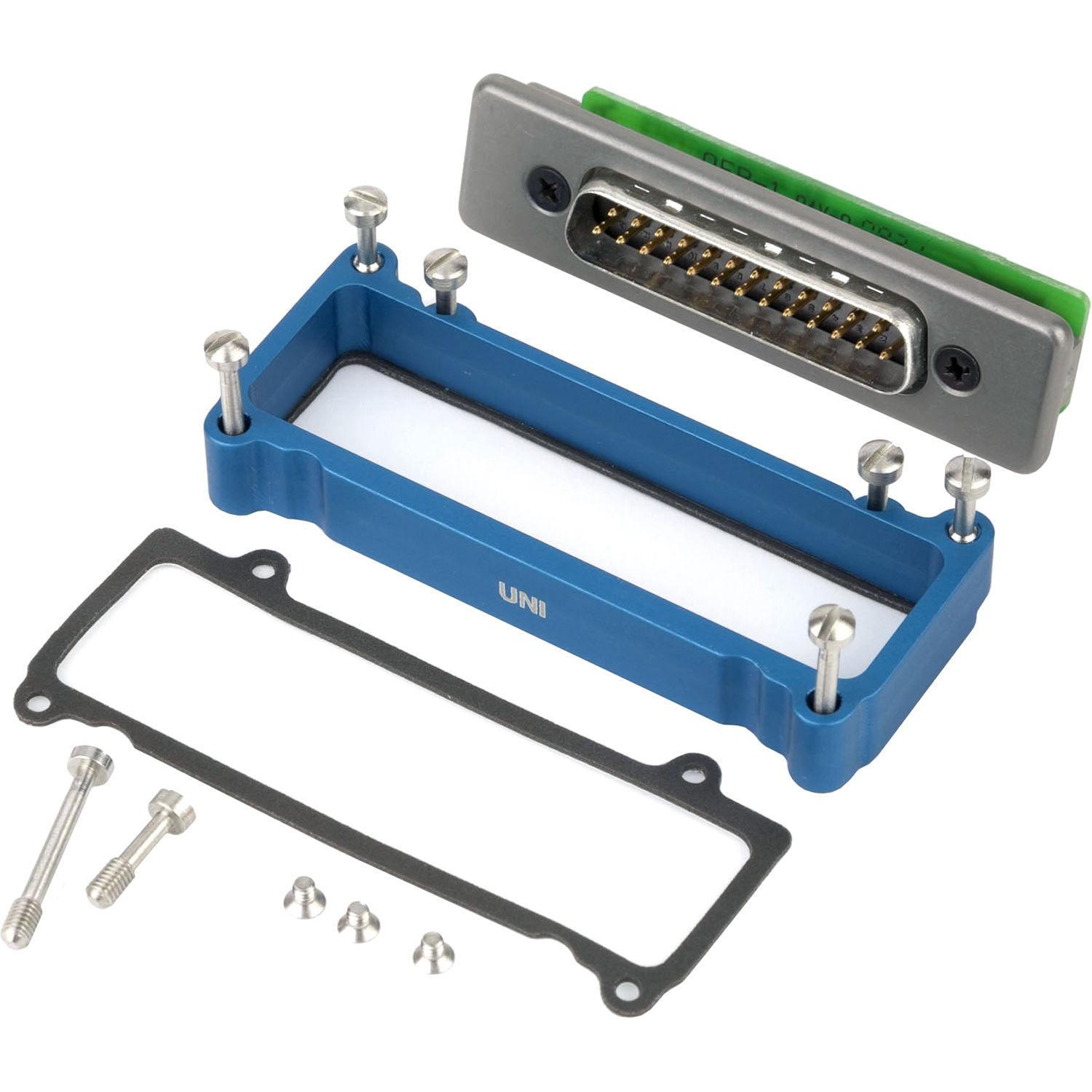

Lectrosonics SRSUPER Bottom-Plate Adapter

TheĀ SRSUPERĀ fromĀ Lectrosonics is a bottom-plate adapter for SR receivers used in SuperSlot docks. It includes the end plate adapter, blue bezel, gasket, and hardware set. It can be used in cameras with a SuperSlot Docking System and makes internal connections with a unislot connector.

Lectrosonics SMWB Wideband Beltpack Transmitter/Recorder (B1: 537 To 607 MHz)Ā Specs

System
Wireless Transmission Analog/Digital Hybrid UHF (900 MHz)
RF Frequency Band B1:
537.6 to 607.95 MHz
Frequency Step Size 25 kHz
100 kHz
RF Channel Scanning Auto-Scan
Encryption None
Modulation F3E
Transmitter 1
Transmitter
Form Factor Bodypack
RF Output Power 25 / 50 / 100 mW
Audio I/O 1 xĀ TA5/Mini XLR 5-Pin Male Input (Lockable)
Included Cable Connector None
Plug-In Power 5 V
Audio Input Level 0.5 to 50 mV (Mic Level)
17 to 1.7 mV (Line Level)
Auto-Level Control No
Recorder Sample Rates WAV:
44.1 kHz (Record)
Recorder Bit Depths 24-Bit
Memory Card Support microSDHC
Audio File Formats Recording:
BWF
Bit Rates 144 to 192 kb/s (HD Mono Mode)
288 to 384 kb/s (Split Gain Mode)
Gain Range 44 dB
Signal Processing High-Pass Filter:
35 Hz
High-Pass Filter:
50 Hz
High-Pass Filter:
70 Hz
High-Pass Filter:
100 Hz
High-Pass Filter:
120 Hz
High-Pass Filter:
150 Hz
Frequency Response 35 Hz to 20 kHz
Sync Method IR
Antenna 1 xĀ Flexible Whip, Detachable
Power Requirements Battery
Battery Type 1 xĀ AA (Included)
Approx. Battery Life 4.4 Hours (Alkaline)
Display & Indicators 1 xĀ Backlit LCD (Audio Level, Battery Status, Channel, High-Pass Filter, RF Output Power)
1 xĀ LED (Audio Level, Peak)
Housing Aluminum
Operating Temperature -4 to 122°F / -20 to 50°C
Dimensions 2.4 x 2 x 0.6″ / 60 x 49.6 x 16.3Ā mm
Weight 3.2Ā oz / 91Ā g
Packaging Info
Package Weight 0.94 lb
Box Dimensions (LxWxH) 9.85 x 7.9 x 2.95″

Lectrosonics M152/5P Omnidirectional Lavalier Microphone With TA5F Connector (Black)Ā Specs

Microphone
Form Factor Lavalier
Capsule 1 xĀ Electret Condenser
Polar Pattern Omnidirectional
Windscreen Foam (Included)
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL 114 dB SPL
Impedance 3 Kilohms
Sensitivity 10 mV/Pa
Signal-to-Noise Ratio 38 dB
Connectivity
Output Connectors 1 xĀ TA5/Mini XLR 5-Pin Female (Lockable)
Headphone Connector None
Cable Length 3.3′ / 1Ā m
Power
Operating Voltage 1.3 to 10 V
Operating Current Consumption 30 µA
Physical
Color Black
Mounting Alligator Clip (with Included Hardware)
Packaging Info
Package Weight 0.13 lb
Box Dimensions (LxWxH) 3.9 x 2.5 x 1.2″

Lectrosonics SRc Dual-Channel Slot-Mount ENG Receiver (B1: 537.600 To 614.375 MHz)Ā Specs

Operating Frequencies B1: 537.600 to 614.375 MHz
Frequency Selection Steps Selectable; 100 or 25 kHz
Type of Receiver Dual conversion, superheterodyne
IF Frequency Ch.1: 248.450 MHz and 350.000 kHz
Ch.2: 243.950 MHz and 250.000 kHz
Frequency Stability ±0.001 %
Front End Bandwidth 20 MHz @ -3 dB
Sensitivity 20 dB SINAD: 1.0 uV (-107 dBm), A weighted
60 dB Quieting: 2.2 uV (-100 dBm), A weighted
Squelch Quieting Greater than 100 dB typical
AM Rejection Greater than 60 dB, 4 uV to 1 V
Modulation Acceptance 85 kHz
Image and Spurious Rejection 85 dB
Third Order Intercept 0 dBm
Diversity Method SmartDiversity phased antenna combining or Ratio Diversity using both receivers for a single audio channel
FM Detector Digital Pulse Counting Detector operating at 250 and 350 kHz
RF Spectrum Analyzer Coarse and fine scanning modes for RF spectrum site survey
Antenna Inputs 50 Ohms SMA female connectors
Audio Output Connectors Interchangeable D connector adapters for camera slot interfaces
Dual TA3 male (mini XLR) balanced output adapter
Balanced output adapter with fixed cables
Front-panel TA5M with two balanced outputs (5P version)
Audio Output Level Adjustable -50 to +5 dBu in 1 dB steps; unbalanced output is 6 dB lower
Audio Channel Crosstalk -80 dB or better
Front Panel Controls and Indicators Sealed panel with membrane switches
LCD monitors pilot tone; antenna phase, receiver battery level; transmitter battery status; audio level, RF level
Audio Test Tone 1 kHz, -50 dBu to +5 dBu output (bal); 1% THD
Transmitter Battery Type Selection 9 V alkaline, 9 V lithium, AA alkaline, AA lithium, NiMH
Phase Invert Audio-output phase normal or inverted
Compatibility Modes HYB native Digital Hybrid mode
M.3 non-Lectrosonics (call factory)
200 Lectrosonics 200 Series
100 Lectrosonics 100 Series
HYB/TB Digital Hybrid w/ Talkback
M.7 non-Lectrosonics (call factory)
M.6 non-Lectrosonics (call factory)
IFB Lectrosonics IFB
SmartNR (Noise Reduction) Off, Norman, Full modes (available in Digital Hybrid mode only)
Audio Performance (Overall System)
Frequency Response 32 Hz to 20 kHz (+/- 1 dB)
THD 0.15% (system) typical in Digital Hybrid mode
Input Dynamic Range 125 dB (with full Tx limiting)
Rear Panel Controls Audio-output connectors
External DC input
Powering and Current Consumption Min. 7 V to max. 18 VDC; 2.2 W
125 mA at 18 VDC
180 mA at 12 VDC
295 mA at 7 VDC
Runtime with SRBATTSLED Adapter 7.2 V, 2200 mAh “L” style battery will typically provide about 11 hours of operation
Transmitter Battery Level Tracking: LCD display with battery icon or timer readout
Operating Temperature -4 to 122°F / -20 to +50°C
Dimensions (W x H x D) 2.92 x 1.22 x 4.93″ / 74 x 31 x 125 mm
Weight 7.9 oz / 225 g with SREXT adapter
Packaging Info
Package Weight 0.94 lb
Box Dimensions (LxWxH) 9.9 x 7.95 x 2.9″

Lectrosonics SRSUPER Bottom-Plate AdapterĀ Specs

Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
Packaging Info
Package Weight 0.12 lb
Box Dimensions (LxWxH) 4.3 x 1 x 0.4″
