Lenovo 00FN399 800GB 2.5in 12Gbps SAS SSD Kit

Add to Wishlist
Capacity: 800GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 1100/765

Electrical Interface: SAS-3 Serial Attached SCSI v3 – 12.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Write Intensive

4,999.00 د.إ

Add to Wishlist

Lenovo 00FN399 SSD1600MM / HUSMM1680ASS205 800GB 2.5in 12Gbps eMLC WI 10-DWPD Crypto SAS SSD kit 00E7600 for System X – Brand New

Lenovo 00FN399 SSD1600MM / HUSMM1680ASS205 800GB 2.5in 12Gbps eMLC WI 10-DWPD Crypto SAS SSD kit 00E7600 for System X – Brand New

Lenovo 12Gb SAS Enterprise Performance SSDs for

System x

The 12 Gb SAS Enterprise Performance solid-state drives (SSDs) for System x use MLC NAND flash memory technology with a 12 Gb SAS interface to provide a high-performance, high-endurance storage solution in either 2.5-inch or 3.5-inch drive form factor. The 12 Gb SAS drives with 10 full drives writes per day (DWPD) are an excellent choice for applications demanding high write performance, such as High Performance Computing (HPC), High Definition Imaging and Video (HDIV), high data rate analytics and databases, large-scale virtualization, and video on demand.

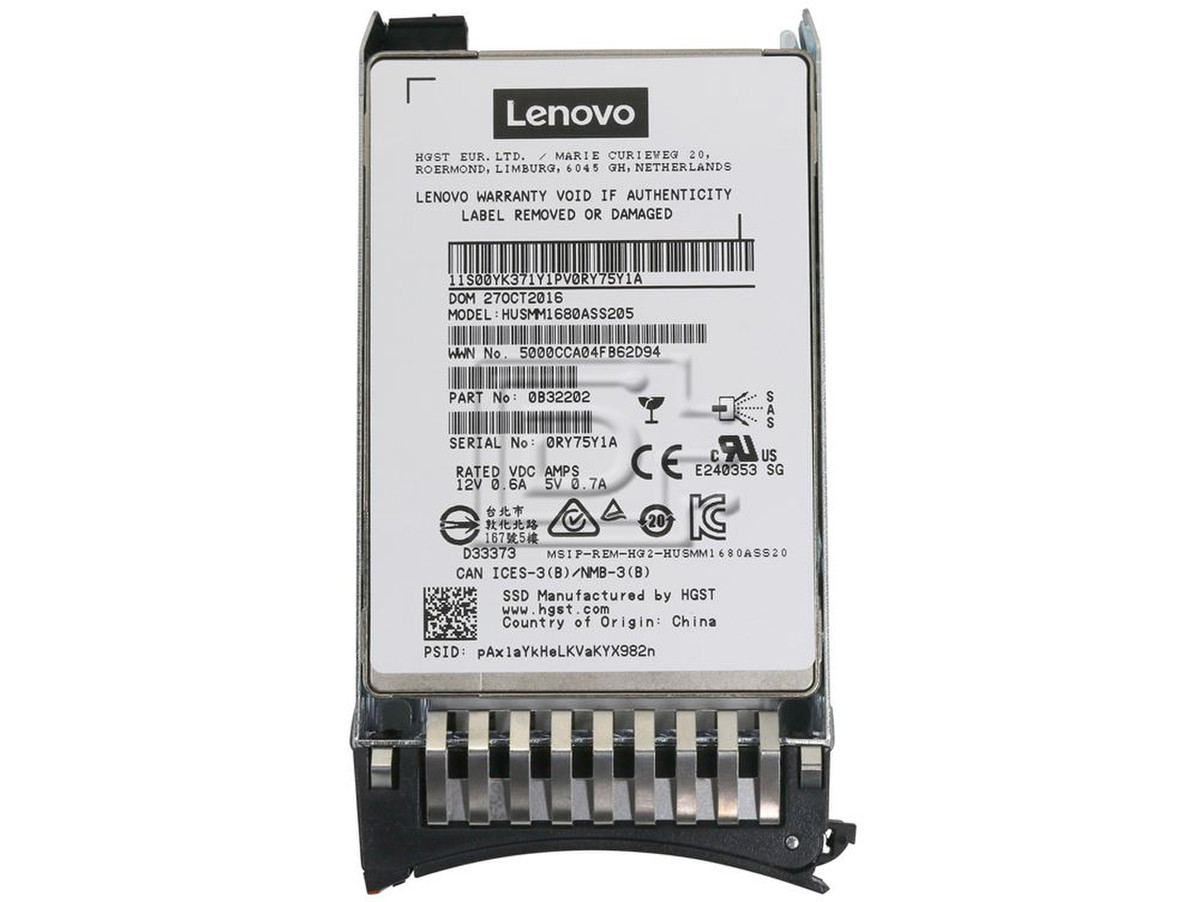

The 12 Gb SAS Enterprise Performance solid-state drive is shown in the following figure

Highlights

  • MLC NAND Flash for ultra-high performance and endurance
  • Mainstream endurance 10DW/D for 5 years
  • Best IOPS/Watt for reduced TCO
  • 12Gb/s SAS interface for maximum throughput
  • Advanced power loss data management technology
  • Self-encrypting models conform to TCG’s Enterprise specification



Applications / Environments

  • Ultra-high performance tier-0 enterprise storage
  • Enterprise-class servers and high performance computing
  • Space and/or power constrained environments
  • Online Transaction Processing (OLTP)
  • Video pre- and post-production
  • Financial and e-commerce
  • Database analytics

This drive is compatible with Servers and Arrays that take 2.5″ x 15mm Enterprise grade drives including Lenovo System X series.

Comes with 800GB SAS SSD with 00E7600 tray.

x3500 M5 (5464) x3550 M5 (5463) x3650 M5 (5462) x3850 X6
x3950 X6 (6241, E7 v4) nx360 M5 (5465, E5-2600 v4) sd350 M5 (5493) x240 M5 (9532)







Compatibility:

This drive is compatible with Servers and Arrays that take 2.5″ x 15mm Enterprise grade drives including Lenovo System X series.

x3500 M5 (5464) x3550 M5 (5463) x3650 M5 (5462) x3850 X6
x3950 X6 (6241, E7 v4) nx360 M5 (5465, E5-2600 v4) sd350 M5 (5493) x240 M5 (9532)
SKU: 00FN399 Category:
Ultrastar® SSD1600MM
Part Number 00FN399
Model Number HUSMM1680ASS205
Configuration
Interface SAS 12Gb/s
Capacity 800GB
Form factor 2.5-inches
Flash memory technology Multi Level Cell (MLC)
Sector size support 512, 520, 528, 4K
Performance
Read throughput (max MB/s, sequential 64K) 1100
Write throughput (max MB/s, sequential 64K) 765
Read IOPS (max IOPS, random 4K) 130,000
Write IOPS (max IOPS, random 4k) 100,000
Reliability
Error rate (non-recoverable, bits read) 1 in 10^17
MTBF(M hours) 2.5
Annual failure rate(AFR) 0.35%
Availability (hrs/day x days/wk) 24×7
Endurance (max PB, random write) 3.6
Power
Requirement +5 VDC (+/-5%)
+12 VDC (+/-10%)
Operating (W, typical) 9.0 and 11.0
Idle, (W) 2.2
Physical size
z-Height (mm) 15.0
Dimensions (width x depth, mm) 70.1 x 100.6
Weight (max, g) 187
Environmental (operating)
Case temperature 0° to 70° C
Shock (half-sine wave) 1000G(0.5ms)
500G(2ms)
Vibration, random (G RMS) 2.16, all axis (5 to 700 Hz)



ROHS Compliant

Alternate MPNs: HUSMM1680ASS205 0B32202 01GR606

Weight: 1 lb
