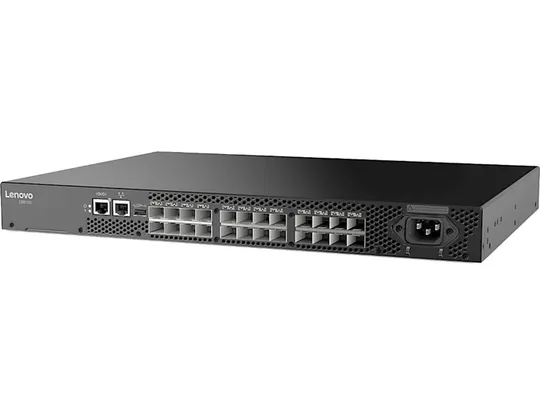

Lenovo DB610S Gigabit Ethernet (10/100/1000) 1U Black

Add to Wishlist
1U, 24 x 16GB FC SWL SFP+, 1 x Gigabit LAN, 1 x RS-232 (RJ-45), 1 x USB, 4.2 kg

AED41,699.00

Add to Wishlist

Highlights

The Lenovo ThinkSystem DB610S 32Gb FC SAN Switch provides exceptional price/performance value by delivering market-leading 32 Gb Gen 6 Fibre Channel technology and combining flexibility, simplicity, and enterprise-class functionality to meet the demands of growing flash-based storage environments. Designed to enable maximum flexibility and reliability, the ThinkSystem DB610S FC SAN Switch is a compact 1U rack-mount switch that offers low-cost access to industry-leading Storage Area Network (SAN) technology while providing “pay-as-you-grow” scalability to meet the needs of an evolving storage environment. This product guide provides essential pre-sales information to understand the ThinkSystem DB610S FC SAN Switch, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ThinkSystem DB610S FC SAN Switch and consider its use in IT solutions.

SKU: 6559F2A Category: Tag:
Feature Details
Basic switching RJ-45 Ethernet ports quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity 8
SFP+ module slots quantity 24
USB 2.0 ports quantity 1
Power connector AC-in jack
10G support Y
Port mirroring Y
Full duplex Y
Switching capacity 14.025 Gbit/s
Throughput 768000 Mpps
Access Control List (ACL) Y
Security algorithms 802.1x RADIUS, IPSec, SSH, SSL/TLS
SSH/SSL support Y
Multicast support Y
Rack mounting Y
Form factor 1U
Product colour Black
Number of fans 4 fan(s)
Power source AC
Power supply included Y
Number of power supply units 1
AC input voltage 100 – 240 V
AC input frequency 50/60 Hz
Power consumption (typical) 150 W
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 70 °C
Operating relative humidity (H-H) 10 – 85%
Storage relative humidity (H-H) 10 – 90%
Operating altitude 0 – 3000 m
Non-operating altitude 0 – 12000 m
Width 429 mm
Depth 307 mm
Height 43 mm
Weight 42 kg
Harmonized System (HS) code 85176990
Power supply 150 W
