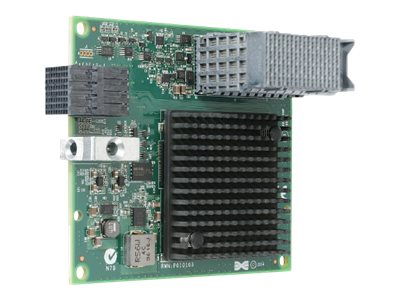

Lenovo Flex System CN4052S – network adapter – PCIe 3.0 x8 – 10Gb Ethernet x 2
Lenovo Flex System CN4052S – Network adapter – PCIe 3.0 x8 – 10Gb Ethernet x 2
AED4,299.00
The adapters offer CN4052S 10 GbE connections and are cost- and performance-optimized for integrated and converged infrastructures. They offer a “triple play” of converged data, storage, and low latency RDMA networking on a common Ethernet fabric. The adapters provides customers with a flexible storage protocol option for running heterogeneous workloads on their increasingly converged infrastructures.
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| Networking | |
|---|---|
| Ports | 10Gb Ethernet x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Capacity | Number of virtual NIC per port: 8<br>MAC addresses per port: 128 |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Features | |
|---|---|
| Features | Traffic shaping, MAC address filtering, IPv6 support, DCBX support, enhanced transmission selection, IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO), NDIS 6 IPSec task offload compliant, QoS, Jumbo Frames support, PXE support, RSS, SR-IOV, LACP, DCB, MSI-X, CEE, EVB, TCP/IP checksum offload, UDP/IP checksum offload, UFP, PFC, VXLAN, NVGRE, VNeX technology, RoCE v2, Virtual Fabric mode, Switch Independent mode |
| Compliant Standards | |
|---|---|
| IEEE Standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 2 x 10Gb Ethernet |
| Miscellaneous | |
|---|---|
| Compliant Standards | CISPR 22 Class A, EN55024, EN55022 Class A, CB, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, BSMI CNS 13438, FCC Part 15 A, FCC CFR47 Part 15 B, ANSI C63.4-2003, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, ICES-003 issue 4 Class A, VCCI Class A, GOST-R 51318.22-99, GOST-R 51318.24-99, KN22 Class A, GOST-R 51317.3.2, GOST-R 51317.3.3, AS/NZS CISPR22:2006 Class A, EN61000-3-2, EN61000-3-3 |
| Power | |
|---|---|
| Power Consumption Operational | 25 Watt |
| Software / System Requirements | |
|---|---|
| OS Required | SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, VMware vSphere 5.5 (ESXi), SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen |
| Dimensions & Weight | |
|---|---|
| Width | 3.9 in |
| Depth | 3.1 in |
| Weight | 0.46 oz |
