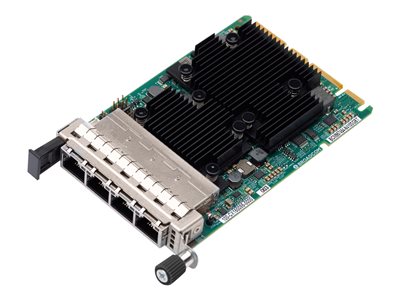

Lenovo ThinkSystem Broadcom 57454 – network adapter – OCP 3.0 – 10Gb Ethernet x 4

Add to Wishlist

Lenovo ThinkSystem Broadcom 57454 – Network adapter – OCP 3.0 – 10Gb Ethernet x 4 – for ThinkAgile HX5531 Certified Node; HX7530 Appliance; HX7531 Certified Node

AED3,399.00

Add to Wishlist

The ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port OCP Ethernet Adapter is a high-performance 25 Gb Ethernet adapter in the Open Compute Project (OCP) 3.0 SFF form factor. It offers TruFlow intelligent flow processing and supports advanced networking technologies including RoCE v1/2, SDN, NFV and virtualization.

SKU: 4XC7A08240 1 Category: Tag:
General
Device Type Network adapter
Interface (Bus) Type Open Compute Project mezzanine (OCP) 3.0
Networking
Ports 10Gb Ethernet x 4
Connectivity Technology Wired
Cabling Type Ethernet 1000Base-T, Ethernet 10GBase-T
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Capacity Jumbo frame size: 9600
Network / Transport Protocol TCP/IP
Features WOL, PXE support, LSO, LRO, RSS, DCB, TSO, MSI-X, EVB, Accelerated RFS, TSS, RoCE, PFC, NC-SI, Link Aggregation, RoCE v2, FLR, SDN, VLAN Tagging, NFV, TruFlow, ETS, SMBus 2.0, flow acceleration
Compliant Standards IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588-2008
Processor / Memory
Processor 1 x Broadcom BCM57454
Expansion / Connectivity
Interfaces 4 x 10GBase-T – RJ-45
Miscellaneous
Included Accessories Low-profile bracket
Compliant Standards BSMI CNS 13438 Class B, ICES-003, RRL, CSA 22.2 No. 950, ICES-003 Class B, EN55024 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, cTUVus, UL 94, KN22, KN24, EN 55022:2010+AC:2011 Class B, UL 1977, UL 796, CNS 14336 Class B
Dimensions & Weight
Depth 4.5 in
Height 3 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 – 95% (non-condensing)
Compatibility Information
Designed For Lenovo ThinkAgile HX5530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX5531 Certified Node 7Z84 ¦ Lenovo ThinkAgile HX7530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 7D32
