Network Adapters

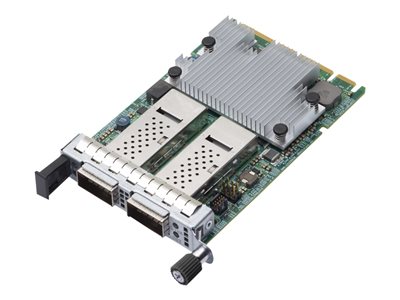

Lenovo ThinkSystem Broadcom 57508 – network adapter – OCP 3.0 – 100 Gigabit QSFP56 x 2
Lenovo ThinkSystem Broadcom 57508 – Network adapter – OCP 3.0 – 100 Gigabit QSFP56 x 2 – for ThinkSystem SR630 V3; SR645 V3; SR650 V3; SR655 V3; SR665 V3; SR675 V3; SR850 V3; SR860 V3
AED9,699.00
The ThinkSystem Broadcom 57508 100GbE QSFP56 Ethernet adapters are a high-performance low-power 100 Gb Ethernet adapter with a PCIe 4.0 host interface that offers TruFlow intelligent flow processing and supports advanced networking technologies such as VXLAN, NVGRE, Geneve, RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.
| General |
|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0, PCIe 4.0 |
| Networking |
| Ports | 100 Gigabit QSFP56 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 100 Gigabit Ethernet |
| Data Transfer Rate | 100 Gbps |
| Capacity | Jumbo frame size: 9600 |
| Network / Transport Protocol | TCP/IP, IPv4, IPv6, UDP |
| Features | Wake on LAN (WOL), RDMA support, Large Send Offload (LSO) |
| Large Receive Offload (LRO), Receive Side Scaling (RSS) |
| Forward Error Correction (FEC), TCP Segmentation Offload (TSO) |
| Accelerated Receive Flow Steering (RFS), Generic Routing Encapsulation (GRE) |
| Transmit Side Scaling (TSS), Virtual Ethernet Port Aggregator (VEPA) |
| Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE) |
| Link Aggregation, RDMA over Converged Ethernet (RoCE) v2 |
| Virtual Ethernet Bridge (VEB), CIP Sync (IEEE 1588) |
| Jumbo Frames support (up to 9600 bytes), TruFlow |
| Receive Segment Coalescing (RSC), vSwitch Acceleration |
| NetQueue, VMQueue, flow acceleration, generic receive offload (GRO) |
| Compliant Standards | IEEE 802.3ad (LACP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau |
| Processor / Memory | Processor: 1 x Broadcom BCM57508 |
| Expansion / Connectivity | Interfaces: 2 x 100Gb Ethernet – QSFP56 |
| Miscellaneous | Compliant Standards: CSA 22.2 No. 950, ICES-003 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B |
| cTUVus, UL 94, KN24, VCCI – V-3/2014.04, CNS 13438 Class B |
| KN22 Class B, EN 55022:2010+AC:2011 Class B, UL 1977, UL 796 |
| CNS 14336 Class B, EN 55024: Class B, ICES 003 |
| Dimensions & Weight | Width: 3 in |
| Depth: 4.5 in |
| Environmental Parameters | Min Operating Temperature: 32 °F |
| Max Operating Temperature: 131 °F |
| Humidity Range Operating: 5 – 95% (non-condensing) |
| Compatibility Information | Designed For: |
| – Lenovo ThinkSystem SR630 V3 7D72, 7D73 |
| – Lenovo ThinkSystem SR645 V3 7D9C |
| – Lenovo ThinkSystem SR650 V3 7D75, 7D76 |
| – Lenovo ThinkSystem SR655 V3 7D9E |
| – Lenovo ThinkSystem SR665 V3 7D9A |
| – Lenovo ThinkSystem SR675 V3 7D9R |
| – Lenovo ThinkSystem SR850 V3 7D96 |
| – Lenovo ThinkSystem SR860 V3 7D93 |
There are no reviews yet.
