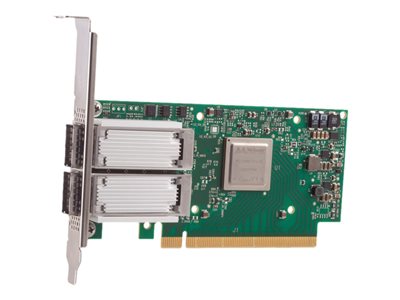

Lenovo ThinkSystem Mellanox ConnectX-4 Lx – network adapter – PCIe 3.0 x8 – 10Gb Ethernet / 25Gb Ethernet SFP28 x 2

Add to Wishlist

Lenovo ThinkSystem Mellanox ConnectX-4 Lx – Network adapter – PCIe 3.0 x8 – 10Gb Ethernet / 25Gb Ethernet SFP28 x 2 – for ThinkAgile HX5531 Certified Node; HX7530 Appliance; HX7531 Certified Node

AED2,199.00

Add to Wishlist

ConnectX-4 from Mellanox is a family of high-performance and low-latency Ethernet and InfiniBand adapters. The ConnectX-4 Lx EN adapters are available in 40 Gb and 25 Gb Ethernet speeds and the ConnectX-4 Virtual Protocol Interconnect (VPI) adapter supports 100 Gb EDR InfiniBand and 100 Gb Ethernet.

These adapters address virtualized infrastructure challenges, delivering best-in-class performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.

SKU: 4XC7A08249 1 Category: Tag:
Category Specification
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 3.0 x8
Networking
Ports 10Gb Ethernet / 25Gb Ethernet SFP28 x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet, 25 Gigabit Ethernet
Data Transfer Rate 25 Gbps
Capacity Jumbo frame size: 9600<br>Number of virtual functions: 256<br>Number of physical functions: 16
Network / Transport Protocol TCP/IP, UDP/IP, uDAPL, SMB, NFS
Features MPLS support, TCP/IP offloading, QoS, Jumbo Frames support, RDMA support, PXE support, LSO, LRO, RSS, UEFI support, SR-IOV, Energy Efficient Ethernet, tagged VLAN, MSI-X, UDP/IP offloading, iSCSI remote boot, Ethernet remote boot, PFC, VXLAN, NVGRE, Link Aggregation, SDN, XRC transport, DCT, UMR, ODP, Mellanox PeerDirect
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by
Expansion / Connectivity
Interfaces 2 x 10Gb Ethernet/25Gb Ethernet – SFP28
Miscellaneous
Compliant Standards VCCI, CB, EMC, FCC, RoHS, ICES, cTUVus, RCM
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 0 – 90%
Compatibility Information
Designed For Lenovo ThinkAgile HX5530 Appliance 7Z82, Lenovo ThinkAgile HX5531 Certified Node 7Z84, Lenovo ThinkAgile HX7530 Appliance 7Z82, Lenovo ThinkAgile HX7531 Certified Node 7Z84, Lenovo ThinkAgile VX2330 Appliance 7Z62, Lenovo ThinkAgile VX3330 Appliance 7Z62, Lenovo ThinkAgile VX3331 7Z62, Lenovo ThinkAgile VX3530-G Appliance 7Z63, Lenovo ThinkAgile VX3575-G Integrated System 7D43, Lenovo ThinkAgile VX5530 Appliance 7Z63, Lenovo ThinkAgile VX5575 Integrated System 7D43, Lenovo ThinkAgile VX7330-N Appliance 7Z62, Lenovo ThinkAgile VX7530 Appliance 7Z63, Lenovo ThinkAgile VX7575 Integrated System 7D43, Lenovo ThinkAgile VX7576 Certified Node 7D43, Lenovo ThinkSystem SE350 7Z46, Lenovo ThinkSystem SR630 V2 7Z71, Lenovo ThinkSystem SR635 7Y99, Lenovo ThinkSystem SR645 7D2X, Lenovo ThinkSystem SR650 V2 7D15, 7Z73, Lenovo ThinkSystem SR655 7Z01, Lenovo ThinkSystem SR665 7D2V, 7D2W
