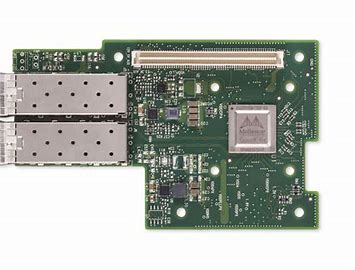

Lenovo ThinkSystem Mellanox ConnectX-4 VPI – network adapter – PCIe – 40Gb Ethernet / Infiniband FDR x 2

Add to Wishlist

Lenovo ThinkSystem Mellanox ConnectX-4 VPI – Network adapter – PCIe low profile – 40Gb Ethernet / Infiniband FDR x 2 – for ThinkSystem SD530; SR630; SR650; SR850; SR860; SR950

AED2,699.00

Add to Wishlist

ConnectX-4 from Mellanox is a family of high-performance and low-latency Ethernet and InfiniBand adapters. The ConnectX-4 Lx EN adapters are available in 40 Gb and 25 Gb Ethernet speeds and the ConnectX-4 Virtual Protocol Interconnect (VPI) adapter supports 100 Gb EDR InfiniBand and 100 Gb Ethernet.

These adapters address virtualized infrastructure challenges, delivering best-in-class performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.

SKU: 7ZT7A00500 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express
Networking
Ports 40Gb Ethernet / Infiniband FDR x 2
Connectivity Technology Wired
Cabling Type Ethernet 40GBase-R2, Ethernet 20GBase-R2
Data Link Protocol 40 Gigabit Ethernet, 40Gb InfiniBand
Data Transfer Rate 40 Gbps
Capacity Jumbo frame size: 9600 ¦ Virtual functions: 256 ¦ Physical functions: 16 ¦ Ingress and egress QoS levels: 1000
Network / Transport Protocol uDAPL, NFS
Features
VPI TCP/IP offloading, QoS, RDMA support, PXE support, LSO, LRO, RSS, UEFI support, SR-IOV, LACP, DCB, tagged VLAN, Ethernet encapsulation (EoIB), checksum offload support, MSI-X, UDP/IP offloading, iSCSI remote boot, HDS, Ethernet remote boot, InfiniBand remote boot, TSS, RoCE, PFC, VXLAN, NVGRE, XRC transport, DCT, UMR, ODP, MSI, RAID offload
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by
Processor / Memory
Processor 1 x Mellanox ConnectX-4
Expansion / Connectivity
Interfaces 2 x 40Gb Ethernet / InfiniBand FDR – QSFP
Miscellaneous
Included Accessories Low-profile bracket, full-height bracket
Compliant Standards VCCI, CB, FCC, RoHS, ICES, cTUVus, RCM
Software / System Requirements
OS Required Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, Red Hat Enterprise Linux 7 Update 2, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition, VMware ESXi 5.5 update 3, VMware ESXi 6.0 update 2
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Compatibility Information
Designed For Lenovo ThinkSystem SD530 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR950
