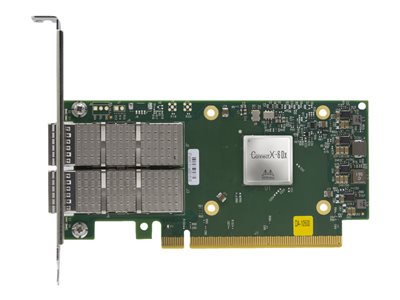

Lenovo ThinkSystem Mellanox ConnectX-6 Dx – network adapter – PCIe 4.0 x16 – 100 Gigabit QSFP56 x 2

Add to Wishlist

Lenovo ThinkSystem Mellanox ConnectX-6 Dx – Network adapter – PCIe 4.0 x16 low profile – 100 Gigabit QSFP56 x 2 – for ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node

AED5,899.00

Add to Wishlist

The ThinkSystem Mellanox ConnectX-6 Dx 100GbE QSFP56 Ethernet Adapter is an advanced cloud Ethernet network adapter that accelerates mission-critical data-center applications, such as security, virtualization, SDN/NFV, big data, machine learning, and storage.

SKU: 4XC7A08248 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express 4.0 x16
Networking
Ports 100 Gigabit QSFP56 x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE), 25 Gigabit Ethernet, 50 Gigabit Ethernet, SMPTE
Data Transfer Rate 100 Gbps
Capacity Jumbo frame size: 9600 ¦ Virtual functions: 1000
Network / Transport Protocol TCP/IP, UDP/IP, IPSec, iSCSI, SRP
Features MPLS support, VLAN support, Jumbo Frames support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), iSCSI remote boot, Precision Time Protocol (PTP), Ethernet remote boot, Transmit Side Scaling (TSS), TCP/IP checksum offload, UDP/IP checksum offload, Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Dynamically Connected transport (DCT), Mellanox PeerDirect, secure boot, Data Plane Development Kit (DPDK), iSCSI Extensions over RDMA (iSER), MCTP over SMBus, NVMe over Fabric (NVMf) Offloads, GENEVE support, Cyclic Redundancy Check (CRC) support, tunnel-aware stateless offloads, NetQueue, zero-touch configuration, MCTP over PCIe VDM
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3cd
Expansion / Connectivity
Interfaces 2 x 100Gb Ethernet – QSFP56
Miscellaneous
Included Accessories Low-profile bracket, full-height bracket
Encryption Algorithm TLS, 256-bit AES-GCM, 128-bit AES-GCM, AES-XTS
Compliant Standards VCCI, CB, FCC, RoHS, ICES, cTUVus, RCM
Software / System Requirements
OS Required Microsoft Windows Server 2016, Red Hat Enterprise Linux 8.0, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, SuSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.2, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, Red Hat Enterprise Linux 8.3
Dimensions & Weight
Depth 5.6 in
Height 2.7 in
Compatibility Information
Designed For Lenovo ThinkAgile MX3330-F Appliance 7D19 ¦ Lenovo ThinkAgile MX3330-H Appliance 7D19 ¦ Lenovo ThinkAgile MX3331-F Certified Node 7D67 ¦ Lenovo ThinkAgile MX3331-H Certified Node 7D67 ¦ Lenovo ThinkAgile MX3530-H Hybrid Appliance 7D6B ¦ Lenovo ThinkAgile MX3531-H Hybrid Certified Node 7D66 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR635 7Y98, 7Y99 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR655 7Y00, 7Z01 ¦ Lenovo ThinkSystem SR665 7D2W ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
