Lenovo ThinkSystem – network adapter – LAN-on-motherboard (LOM) – 10 Gigabit SFP+ x 4

Add to Wishlist

Lenovo ThinkSystem – Network adapter – LAN-on-motherboard (LOM) – 10 Gigabit SFP+ x 4 – for ThinkAgile HX2320 Appliance; VX3320 Appliance

AED1,199.00

Add to Wishlist

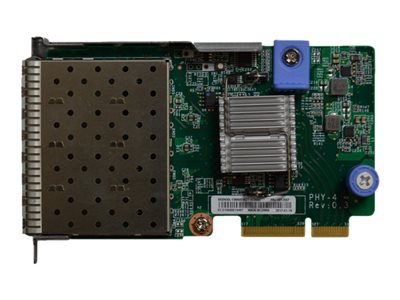

The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 “Lewisburg” PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE/10 GbE networking solution for ThinkSystem customers.

SKU: 7ZT7A00547 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type LAN-on-motherboard (LOM)
Networking
Ports 10 Gigabit SFP+ x 4
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Capacity Virtual functions: 128
Remote Management Protocol RMON
Features Flow control, VLAN support, WOL, IPv6 support, QoS, RDMA support, VMDq, PXE support, LSO, RSS, UEFI support, SR-IOV, LACP, Energy Efficient Ethernet, CoS, tagged VLAN, MSI-X, TCP/IP checksum offload, UDP/IP checksum offload, VEPA, NC-SI, VXLAN, NVGRE, VEB, TPH, Advanced Packet Filtering, Intel VT, Jumbo Frames support (up to 9728 bytes)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg
Processor / Memory Processor: 1 x Inphi CS4223
Expansion / Connectivity Interfaces: 4 x 10Gb Ethernet – SFP+
Miscellaneous Compliant Standards: ICES-003 Class A, RoHS, UL 60950-1 Second Edition, FCC Part 15 A, KCC Class A, VCCI Class A, RCM, RRA Class A
Software / System Requirements Software Included: Intel PROSet
OS Required: Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, VMware ESXi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise Server 12 SP2, VMware ESXi 6.0 update 3
Compatibility Information Designed For
Lenovo ThinkAgile HX2320 Appliance 7X83
Lenovo ThinkAgile HX3321 Certified Node 7Y89
Lenovo ThinkAgile HX3520-G Appliance 7X84
Lenovo ThinkAgile HX7520 Appliance 7X84
Lenovo ThinkAgile HX7820 Appliance 7Y95, 7Z08
Lenovo ThinkAgile HX7821 Certified Node 7Y96, 7Z09
Lenovo ThinkAgile VX 1U Certified Node 7Y93
Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12
Lenovo ThinkAgile VX3320 Appliance 7Y93
Lenovo ThinkAgile VX3520-G Appliance 7Y94
Lenovo ThinkAgile VX5520 Appliance 7Y94
Lenovo ThinkAgile VX7520 Appliance 7Y94
Lenovo ThinkAgile VX7820 Appliance 7Z13
Lenovo ThinkSystem SR630
Lenovo ThinkSystem SR650
Lenovo ThinkSystem SR850
Lenovo ThinkSystem SR860
Lenovo ThinkSystem SR950
