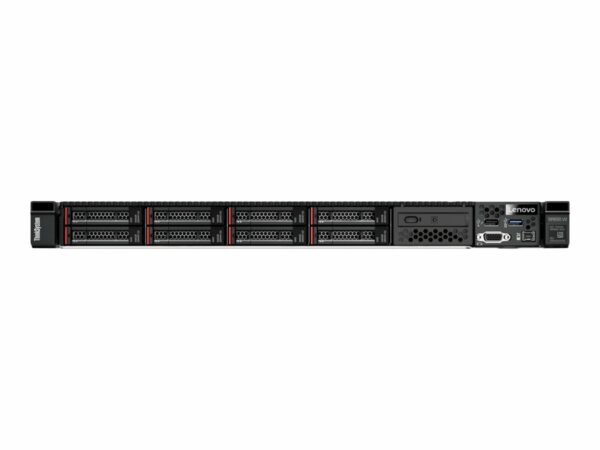

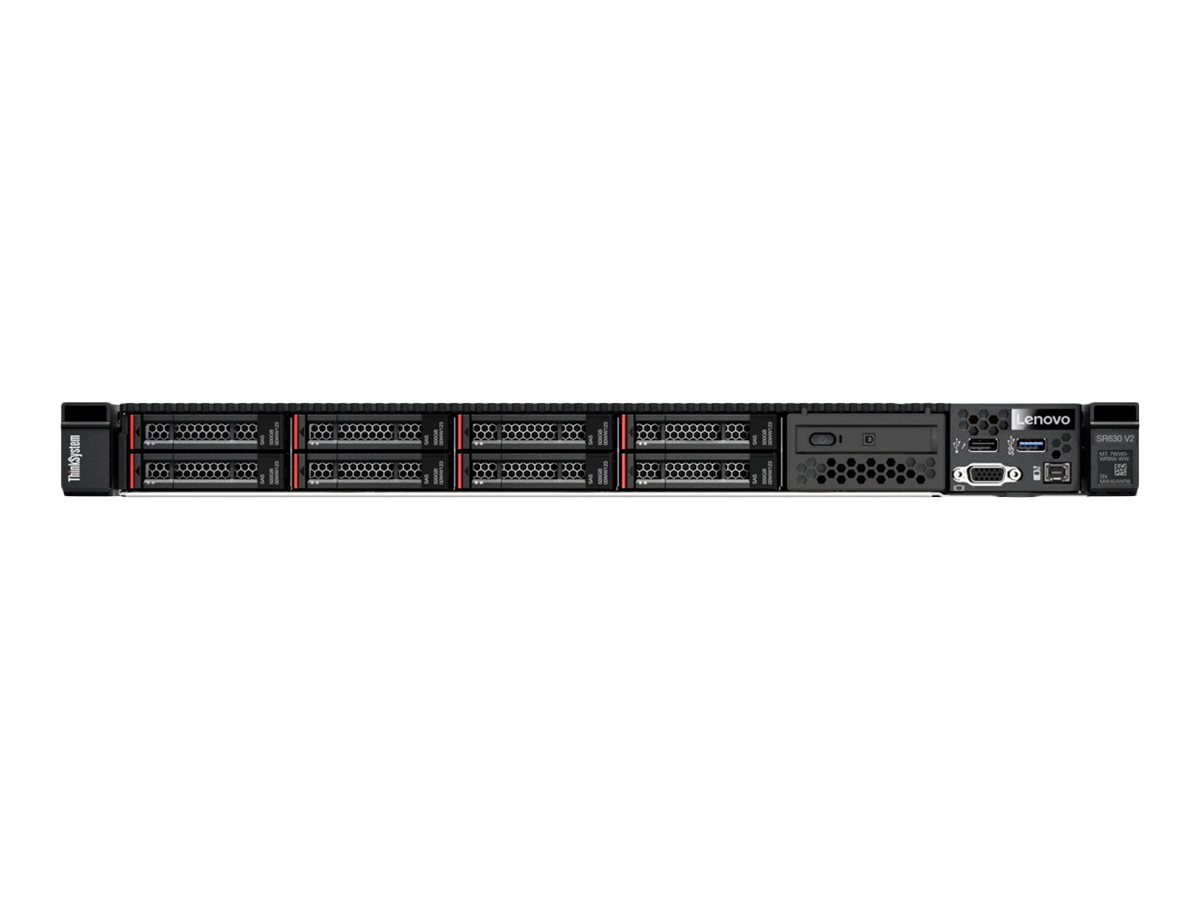

Lenovo ThinkSystem SR630 V2

Add to Wishlist

rack-mountable – Xeon Silver 4309Y 2.8 GHz – 32 GB – SSD 2 x 480 GB

21,099.00 د.إ

Add to Wishlist

Built for business, with business-critical versatility

Confidently deploy performance-driven, industry-leading in reliability and security enhanced SR630 V2 for cloud, analytics, virtualization or gaming.

Future defined data center

Future defined data center

Lenovo delivers engineered, tested and certified IT solutions that are high performance, scalable and cost-effective. By combining industry-leading x86 server technology and reliability, partnering to deliver best-in class co-innovation and providing end-to-end peace of mind with Lenovo ThinkShield, XClarity, and Services, Lenovo solutions enable customers to use real-time data to drive actionable insights. As the compute for these solutions, ThinkSystem SR630 V2 makes businesses smarter by providing support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.

For more information on SR630 V2 solutions that are changing the lives of our customers, visit: https://lenovosuccess.com/dcg
Workload-optimized support

Workload-optimized support

ThinkSystem SR630 V2 is tuned for Intel® Optane™ Persistent Memory 200 series. With this second generation of high performing persistent memory tier optimized for 3rd generation Intel® Xeon® Scalable processors, it offers significantly lower data latency, higher capacities and greater value. With data stored closer to the processor, applications can access data faster driving swifter response times for real-time analytics, financial transactions, electronic medical records, fraud detection, and much more.

Flexible storage

Flexible storage

Industry leading backplane design for Lenovo AnyBay™ features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, U.2 & U.3 NVMe PCIe drives, or EDSFF-based SSDs. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.

Get the Help You Need, When You Need It with Premier Support

Lenovo Premier Support alleviates the problems encountered when maintaining your data center by putting you in contact with the right person on the first call. Free up your maintenance, management, and employee training resources, and focus efforts on what’s more important: innovation and growing your business.

Lenovo Premier Support for the Data Center

Lenovo Premier Support for the Data Center

Premier Support includes:

  • Access to Level 2 Premier Support technicians, who will:
    • Serve as your single point of contact for comprehensive hardware and software troubleshooting
    • Own end-to-end case management and problem resolution
    • Manage Premier call escalation to address high severity issues or systemic problems
  • Dedicated phone number to reach Premier Support 24x7x365
  • Online support tools, supplying a web-enabled form to submit a detailed technical incident report directly to the Premier Support team, 24×7 live chat, and access to a product knowledge base
  • Third-party collaborative software support, furnishing technology partners with diagnostic information to speed problem resolution
Premier Support is offered in 3 service levels, enabling you to target the onsite response time you need for a particular system, workload, or application environment

Premier Foundation

Upgrade your base warranty and extend support of your systems.

  • Premier Support
  • 9×5 Next Business Day Response
  • Onsite Tech. Dispatch for parts and labor
  • Extend coverage up to 5 years
  • 1 and 2 year Post Warranty Options

Premier Essential

Best choice for systems where maximum uptime is essential to the business.

  • Premier Support
  • 24×7 4-Hour Response
  • Onsite Tech. Dispatch for Parts and Labor
  • Includes YourDrive YourData*
  • Extend coverage up to 5 years
  • 1 and 2 year Post Warranty Options

Premier Advanced

Robust coverage for systems supporting workloads that are mission critical.

  • Premier Support
  • 24×7 2 Hour Response**
  • Onsite Tech. Dispatch for Parts and Labor
  • Includes YourDrive YourData*
  • Extend coverage up to 5 years
  • 1 and 2 year Post Warranty Options
Lenovo Premier Support for the Data Center1:17

Lenovo Premier Support for the Data Center

Fast. Direct. Simple. Lenovo Premier Support helps you maintain smooth data center operations as your organization adopts increasingly complex technologies for business-critical systems.

You’ll get an exceptional service experience with direct, technician-to-technician access to resolve technical issues quickly and efficiently.
Lenovo CO2 Offset Services

Lenovo CO2 Offset Services

Smarter is helping offset carbon today for a greener tomorrow.

Lenovo’s CO2 Offset Service is one of the first of its kind in the technology industry. We make it easier for businesses to offset the carbon emissions associated with each Lenovo Think device, by providing the option at point of purchase.
Carbon offset at the click of a button.
Before you buy your Lenovo hardware, the cost of carbon offset can be added with the click of a button. Lenovo works with an Environmental Partner to compensate the CO2 emissions associated with your device, and you are then able to track and confirm the offset information through the serial number of your device.

Your Journey Begins Here.

Speak to us to learn more about Lenovo’s Data Center Support services and upgrade today.
* YourDrive YourData (YDYD) includes hard drives designed to operate in hard drive bays, solid state drives designed to operate in hard drive bays, Flash I/O drives as add-on cards. YDYD included for server, optional for storage
** Coverage varies based on Geo (please check with us, or refer to Lenovo’s Locator Tool for availability)

The Lenovo ThinkSystem SR630 V2 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

SKU: 7Z71A06GEA Category:
    • Product Description Lenovo ThinkSystem SR630 V2 – rack-mountable – Xeon Silver 4309Y 2.8 GHz – 32 GB – no HDD
      Type Server – rack-mountable
      Height (Rack Units) 1U
      Localisation Region: EMEA
      Server Scalability 2-way
      Processor 1 x Intel Xeon Silver 4309Y / 2.8 GHz (3.6 GHz) (8-core)
      Cache Memory 12 MB L3 Cache
      Cache Per Processor 12 MB
      RAM 32 GB (installed) / 8 TB (max) – DDR4 SDRAM – ECC
      Storage Controller RAID (SATA 6Gb/s / SAS 12Gb/s) – PCIe 3.0 x8 (ThinkSystem RAID 9350-8i)
      Server Storage Bays Hot-swap 2.5″
      Hard Drive No HDD
      Optical Storage No optical drive
      Graphics Controller Matrox G200
      Video Memory 16 MB
      Power (50/60 Hz)
      Power Redundancy Optional
      OS Provided No operating system
      Dimensions (WxDxH) 44 cm x 77.3 cm x 4.3 cm
      Weight 26.3 kg
      Environmental Standards ENERGY STAR Qualified EPEAT Bronze
      Manufacturer Warranty Limited warranty – 3 years – on-site – response time: next business day
    • Extended specifications
      General
      Type Server
      Product Form Factor Rack-mountable – 1U
      Built-in Devices 6 x fans
      Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
      Server Scalability 2-way
      Hot-Swap Bays Qty 8
      Localisation Region: EMEA
      Processor / Chipset
      CPU Intel Xeon Silver 4309Y
      Clock Speed 2.8 GHz
      Max Turbo Speed 3.6 GHz
      Number of Cores 8-core
      CPU Qty 1
      Max CPU Qty 2
      Chipset Type Intel C621A
      Cache Memory
      Installed Size L3 Cache – 12 MB
      Cache Per Processor 12 MB
      RAM
      Installed Size 32 GB / 8 TB (max)
      Technology DDR4 SDRAM – ECC
      Effective Memory Speed 2667 MHz
      Rated Memory Speed 3200 MHz
      Form Factor DIMM 288-pin
      Slots 32 (Total) / 31 (empty)
      Features Registered, Memory Mirroring, mixing of different types of memory modules is not supported, slots 17 – 32 are available in two-processor configuration only
      Configuration Features 1 x 32 GB
      Hard Drive
      Type No HDD
      Storage Controller
      Type 1 x RAID – PCIe 3.0 x8
      Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
      Storage Controller Name ThinkSystem RAID 9350-8i
      Channel Qty 8
      RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
      Buffer Size 2 GB
      Optical Storage
      Type No optical drive
      Monitor
      Monitor Type None.
      Graphics Controller
      Graphics Processor Matrox G200
      Video Memory 16 MB
      Video Interfaces VGA
      Networking
      Remote Management Controller XClarity Controller (XCC) Enterprise
      Expansion / Connectivity
      Bays 8 (total) / 8 (free) x hot-swap 2.5″
      Slots 1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0
      2 (total) / 2 (free) x PCIe 4.0 x16 (low-profile)
      Interfaces 4 x USB 3.1 Gen 1 (1 front, 3 rear)
      1 x USB 2.0 (1 in front)
      2 x VGA (1 front, 1 rear)
      1 x management
      1 x diagnostics
      1 x USB 3.1 Gen 1 (1 internal)
      Miscellaneous
      Theft/Intrusion Protection Chassis intrusion switch
      Compliant Standards BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CCC, FCC Part 15 A, GB 17625.1, CECP, VCCI Class A, EN 50581, GB 4943.1, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, CISPR 35, CELP, HJ 2507-2011, CNS 15663 section 5, TP EAC 037/2016, AS/NZS 62368.1, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135
      Power
      Device Type Power supply – hot-plug
      Power Redundancy Optional
      Power Redundancy Scheme 1+1 (with optional power supply)
      Installed Qty 1
      Max Supported Qty 2
      Voltage Required AC 100-240 V (50/60 Hz)
      Power Provided 750 Watt
      80 PLUS Certification 80 PLUS Titanium
      Operating System / Software
      OS Provided No operating system
      Sustainability Information
      EPEAT Compliant EPEAT Bronze
      ENERGY STAR Certified Yes
      ENERGY STAR Version 3.0
      Manufacturer Warranty
      Service & Support Limited warranty – 3 years – on-site – response time: next business day
      Dimensions & Weight
      Dimensions & Weight Details 58.7 cm – 99.8 cm – 22.5 cm
      Width 44 cm
      Depth 77.3 cm
      Height 4.3 cm
      Weight 26.3 kg
