Lenovo ThinkSystem SR650

Add to Wishlist

rack-mountable – Xeon Silver 4208 2.1 GHz – 32 GB – no HDD

AED16,399.00

Add to Wishlist

Top-performing server for data centers needing scalability

Lenovo ThinkSystem SR650 is a 2-socket rack server designed for speed and expansion, with flexible storage and I/O, and industry #1 reliability for business-critical workloads.

Future defined data center

Future defined data center

Lenovo delivers cost-effective, reliable, and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR650 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.

Workload-optimized support

Workload-optimized support

Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offer an unprecedented combination of high capacity, affordability, and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.*

* Based on Intel internal testing, August 2018.
Flexible storage

Flexible storage

Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.

Empowering IT management

Empowering IT management

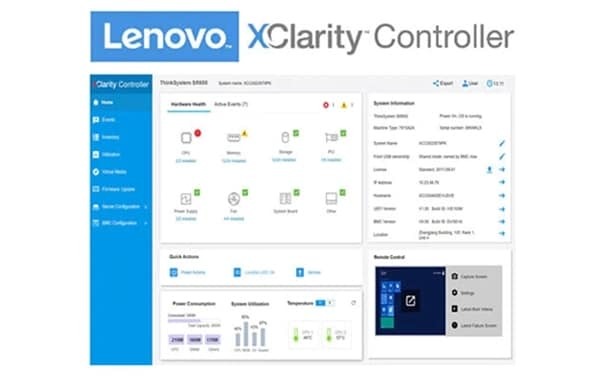

Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.

Get the Help You Need, When You Need It with Premier Support

Lenovo Premier Support alleviates the problems encountered when maintaining your data center by putting you in contact with the right person on the first call. Free up your maintenance, management, and employee training resources, and focus efforts on what’s more important: innovation and growing your business.

Lenovo Premier Support for the Data Center

Lenovo Premier Support for the Data Center

Premier Support includes:

  • Access to Level 2 Premier Support technicians, who will:
    • Serve as your single point of contact for comprehensive hardware and software troubleshooting
    • Own end-to-end case management and problem resolution
    • Manage Premier call escalation to address high severity issues or systemic problems
  • Dedicated phone number to reach Premier Support 24x7x365
  • Online support tools, supplying a web-enabled form to submit a detailed technical incident report directly to the Premier Support team, 24×7 live chat, and access to a product knowledge base
  • Third-party collaborative software support, furnishing technology partners with diagnostic information to speed problem resolution
Premier Support is offered in 3 service levels, enabling you to target the onsite response time you need for a particular system, workload, or application environment

Premier Foundation

Upgrade your base warranty and extend support of your systems.

  • Premier Support
  • 9×5 Next Business Day Response
  • Onsite Tech. Dispatch for parts and labor
  • Extend coverage up to 5 years
  • 1 and 2 year Post Warranty Options

Premier Essential

Best choice for systems where maximum uptime is essential to the business.

  • Premier Support
  • 24×7 4-Hour Response
  • Onsite Tech. Dispatch for Parts and Labor
  • Includes YourDrive YourData*
  • Extend coverage up to 5 years
  • 1 and 2 year Post Warranty Options

Premier Advanced

Robust coverage for systems supporting workloads that are mission critical.

  • Premier Support
  • 24×7 2 Hour Response**
  • Onsite Tech. Dispatch for Parts and Labor
  • Includes YourDrive YourData*
  • Extend coverage up to 5 years
  •  1 and 2 year Post Warranty Options
Lenovo Premier Support for the Data Center1:17

Lenovo Premier Support for the Data Center

Fast. Direct. Simple. Lenovo Premier Support helps you maintain smooth data center operations as your organization adopts increasingly complex technologies for business-critical systems.

You’ll get an exceptional service experience with direct, technician-to-technician access to resolve technical issues quickly and efficiently.
Lenovo CO2 Offset Services

Lenovo CO2 Offset Services

Smarter is helping offset carbon today for a greener tomorrow.

Lenovo’s CO2 Offset Service is one of the first of its kind in the technology industry. We make it easier for businesses to offset the carbon emissions associated with each Lenovo Think device, by providing the option at point of purchase. /

Carbon offset at the click of a button.
Before you buy your Lenovo hardware, the cost of carbon offset can be added with the click of a button. Lenovo works with an Environmental Partner to compensate the CO2 emissions associated with your device, and you are then able to track and confirm the offset information through the serial number of your device.
Your Journey Begins Here.

Speak to us to learn more about Lenovo’s Data Center Support services and upgrade today.
 * YourDrive YourData (YDYD) includes hard drives designed to operate in hard drive bays, solid state drives designed to operate in hard drive bays, Flash I/O drives as add-on cards. YDYD included for server, optional for storage
** Coverage varies based on Geo (please check with us, or refer to Lenovo’s Locator Tool for availability)

Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.

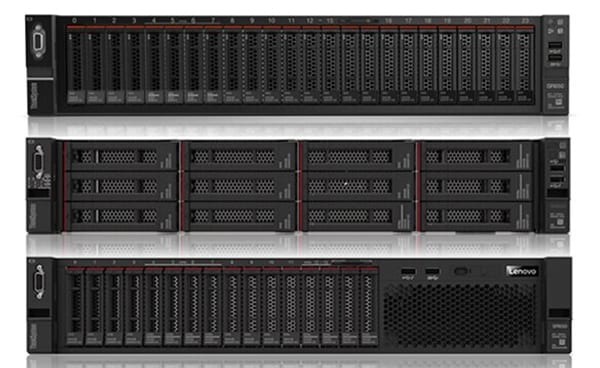

AnyBay design

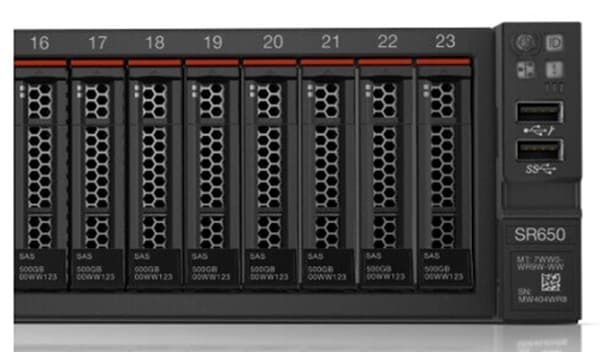

The SR650 server features a unique AnyBay design that allows a choice of drive interface types in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives.

NVMe PCIe ports

The SR650 server offers onboard NVMe PCIe ports that allow direct connections to the U.2 NVMe PCIe SSDs, which frees up I/O slots and helps lower NVMe solution acquisition costs.

Energy efficiency

The SR650 server delivers impressive compute power per watt, featuring 80 Plus Titanium and Platinum redundant power supplies that can deliver 96% (Titanium) or 94% (Platinum) efficiency at 50% load when connected to a 200 – 240 V AC power source.

Lower energy costs

The SR650 server is designed to meet ASHRAE A4 standards (up to 45 °C [113 °F]) in select configurations, which enable customers to lower energy costs, while still maintaining world-class reliability.

SKU: 7X06A0PVEA Category: Tag:
Product Description Lenovo ThinkSystem SR650 – rack-mountable – Xeon Silver 4208 2.1 GHz – 32 GB – no HDD
Type Server – rack-mountable
Height (Rack Units) 2U
Localisation Region: EMEA
Server Scalability 2-way
Processor 1 x Intel Xeon Silver 4208 / 2.1 GHz (3.2 GHz) (8-core)
Cache Memory 11 MB
Cache Per Processor 11 MB
RAM 32 GB DDR4 SDRAM – ECC
Storage Controller RAID (SATA 6Gb/s / SAS 12Gb/s) – PCIe 3.0 x8 (ThinkSystem RAID 9350-8i)
Server Storage Bays Hot-swap 2.5″
Hard Drive No HDD
Optical Storage No optical drive
Graphics Controller Matrox G200e
Video Memory 16 MB
Power (50/60 Hz)
Power Redundancy Optional
OS Provided No operating system
Dimensions (WxDxH) 44.5 cm x 76.4 cm x 8.7 cm
Weight 19 kg
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty Limited warranty – 3 years – on-site – response time: next business day
General
Type Server
Product Form Factor Rack-mountable – 2U
Embedded Security Trusted Platform Module (TPM 1.2 and TPM 2.0)
Server Scalability 2-way
Hot-Swap Bays Qty 8
Localisation Region: EMEA
Processor / Chipset
CPU Intel Xeon Silver 4208
Clock Speed 2.1 GHz
Max Turbo Speed 3.2 GHz
Number of Cores 8-core
CPU Qty 1
Max CPU Qty 2
Chipset Type Intel C624
Cache Memory
Installed Size 11 MB
Cache Per Processor 11 MB
RAM
Installed Size 32 GB
Technology DDR4 SDRAM – ECC
Effective Memory Speed 2400 MHz
Rated Memory Speed 2933 MHz
Form Factor DIMM 288-pin
Slots 24 (Total) / 23 (empty)
Features Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 13 – 24 are available in two-processor configuration only, Patrol Scrubbing, Demand Scrubbing
Configuration Features 1 x 32 GB
RAM Supported 768 GB registered
1.5 TB Load-Reduced
3 TB 3DS registered
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID – PCIe 3.0 x8
Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name ThinkSystem RAID 9350-8i
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Buffer Size 2 GB
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor Matrox G200e
Video Memory 16 MB
Video Interfaces VGA
Networking
Remote Management Controller XClarity Controller (XCC) Enterprise
Expansion / Connectivity
Bays 8 (total) / 8 (free) x hot-swap 2.5″
Slots 1 (total) / 1 (free) x LAN-on-Motherboard (LOM)
2 (total) / 2 (free) x PCIe 3.0 x8 – low-profile
1 (total) / 0 (free) x PCIe 3.0 x8 (for internal storage controller)
1 (total) / 1 (free) x PCIe 3.0 x16
Interfaces 1 x management – RJ-45
3 x USB 3.0 (1 front, 2 rear)
1 x VGA
1 x USB 2.0 (1 in front)
Miscellaneous
Included Accessories Slide tool-less rail kit
Compliant Standards TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, KN24, KN22 Class A, GB 4943.1, BIS, NOM-019, EK1-ITB2000, EN 55022 Class A, CNS 14336-1, IEC/EN 60950-1, TR CU 020/2011, TR CU 004/2011, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
Power
Device Type Power supply – hot-plug
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Installed Qty 1
Max Supported Qty 2
Voltage Required AC 100-240 V (50/60 Hz)
Power Provided 750 Watt
80 PLUS Certification 80 PLUS Titanium
Operating System / Software
OS Provided No operating system
Sustainability Information
ENERGY STAR Certified Yes
ENERGY STAR Version 3.0
Manufacturer Warranty
Service & Support Limited warranty – 3 years – on-site – response time: next business day
Dimensions & Weight
Width 44.5 cm
Depth 76.4 cm
Height 8.7 cm
Weight 19 kg
