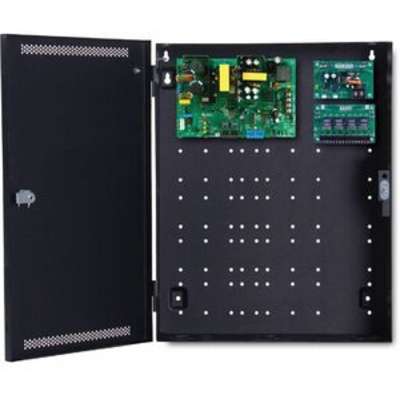

This unit supports both 12V and 24VDC voltages by utilizing an FPO Power Supply/Battery Charger and B100 Secondary Voltage Converter. The FPO generates 24V, charges a battey set and provides primary power to the B100 module. The B100 steps 24V down to 12V for system use, allowing one 24VDC standby battery set to economically backup both voltages. For access or lock power, the D8 provides eight fused outputs rated at 3A per output, each individually programmable for 12 or 24VDC. FLEXPOWER enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | 150W PS 12A/12V Or 6A/24V 8 Relay Lock |
| Manufacturer Part Number | FPO150-B100D8E2 |
| Product Line | FlexPower |
| Product Series | FPO |
| Product Type | Power Supply |
| Technical Information | |
| Efficiency | 88% |
| Protection Type | Overload, Short Circuit, Over Temperature |
| Features | LED indicator |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Output Voltage | 12 V DC, 24 V DC |
| Output Voltage Detail | 12 V DC @ 12 A, 24 V DC @ 6 A |
| Output Current | 12 A, 6 A |
| Output Power | 150 W |
| Physical Characteristics | |
| Form Factor | Enclosure |
| Height | 20″ |
| Width | 16″ |
| Depth | 4.5″ |
| Miscellaneous | |
| Country of Origin | United States |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | |
| Product Family | FlexPower FPO |
| Input Frequency | 60 Hz |
