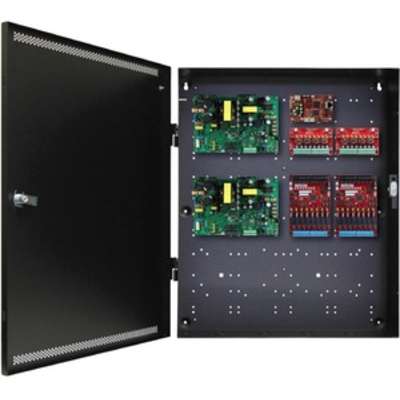

LifeSafety Power 400W Dual Voltage, 120 VAC, 16 Managed.Output

FLEXPOWER ISCAN is a patented smart power management system for security and life safety applications.
The iSCAN150/250-16 is designed specifically to support the dual voltage requirement of 12 and 24VDC, this unit utilizes two FPO power supplies to generate 24VDC and 12VDC and supports and monitors both battery sets.
The system provides sixteen (16) activation inputs and sixteen (16) monitored and controlled relay outputs. The managed inputs are capable of voltage or dry contact activation and the managed outputs are programmable to either of the two system voltages, fail-safe, fail-secure, fire alarm over ride, and AC loss over ride for egress lock control.
Each managed output may also be individually activated or deactivated through an embedded browser interface and monitored for voltage and current values via network or internet.
Adjustable trigger points are provided for each output to generate an alert when that output is outside of selected parameters.
Sixteen (16) auxiliary outputs are provided for readers, REX devices, or other similar units with each output selectable for either continuous or switched DC.
